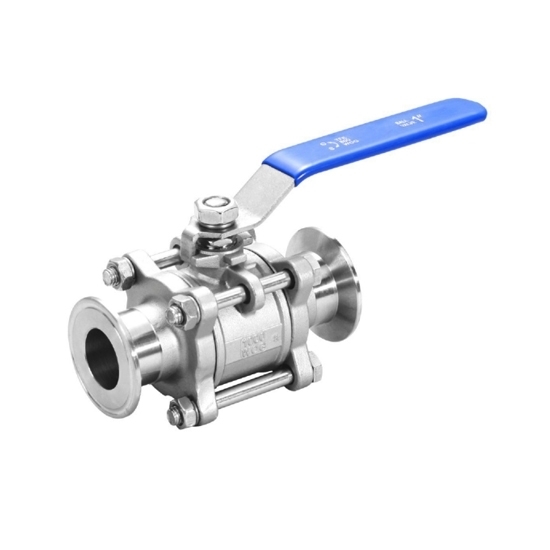

Stainless Steel Ball Valve, DN20-DN100, Quick Fit Clamp

0 reviews • Write a review

from

$79.64

Ex Tax: $79.64

Stock: In Stock
Model: RDDLZ-BV-GQ81F-16P
Weight: 1.00
SKU: RDDLZ-BV-GQ81F-16P

Available Options

Short Description

Diameter

Applicable Pressure

Applicable Medium

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This ball valve cannot be used for drinking water.

Low price three-piece stainless steel ball valve supports pressures up to 2.5MPa, sizes DN20 to DN100, and works from -29°C to 180°C. It handles water, oil, gas, nitric acid, and acetic acid, ideal for industrial and sanitary use.

Specification

Model	RDDLZ-GQ81F-16P
Applicable pressure	PN0.6, 1.0, 1.6, 2.0, 2.5 MPa (optional)
Strength test pressure	PT0.9, 1.5, 2.4, 3.0, 3.8 MPa
Nominal diameter DN	DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100 (optional)
Low-pressure gas seal test pressure.	0.6 MPa
Applicable medium	Water/Oil/Gas, -29~180℃, RDDLZ-Q81F-(6-25)C
	Nitric Acid, RDDLZ-Q81F-(6-25)P
	Acetic Acid, RDDLZ-Q81F-(6-25)R

Parts Name	RDDLZ-Q81F-(6-25)C	RDDLZ-Q81F-(6-25)P	RDDLZ-Q81F-(6-25)R
Body	WCB	ZG1Cr18Ni9Ti CF8	ZG1Cr18Ni12Mo2Ti CF8M
Bonnet	WCB	ZG1Cr18Ni9Ti CF8	ZG1Cr18Ni12Mo2Ti CF8M
Ball	1Cr18Ni9Ti 304	1Cr18Ni9Ti 304	1Cr18Ni12Mo2Ti 316
Stem	1Cr18Ni9Ti 304	1Cr18Ni9Ti 304	1Cr18Ni12Mo2Ti 316
Sealring	Polytetrafluorethylene (PTFE)	Polytetrafluorethylene (PTFE)	Polytetrafluorethylene (PTFE)
Packing	Polytetrafluorethylene (PTFE)	Polytetrafluorethylene (PTFE)	Polytetrafluorethylene (PTFE)

Feature

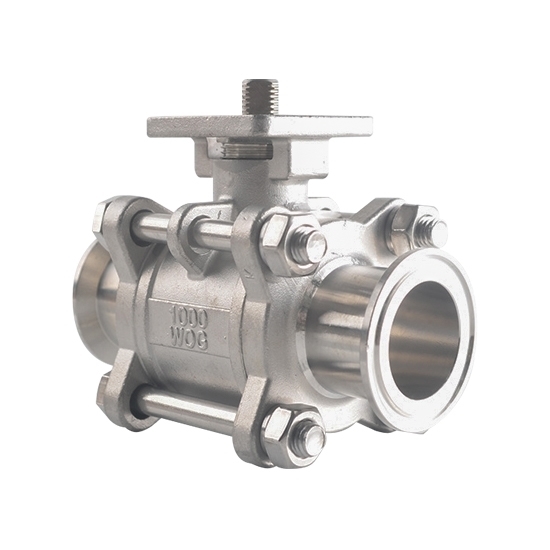

High Platform Design: The elevated platform supports direct actuator mounting, enabling seamless automation without extra brackets or connectors, simplifying installation and maintenance.
Three-Piece Construction: Features two end caps and a central body, allowing easy disassembly for cleaning, inspection, and component replacement without disrupting pipelines.
Quick-Install Connection: Equipped with clamps or quick-install flanges, ensuring rapid integration, reduced downtime, and suitability for frequent cleaning in sanitary applications.
Stainless Steel Durability: Made from corrosion-resistant stainless steel, it ensures hygiene and long-term reliability in demanding conditions.
Versatile Performance: Handles liquids, gases, and steam across various pressures and temperatures, making it adaptable for diverse applications.

Dimension (unit: mm)

DN	G	D	L	H	W
15	1/2"	34/50.5	100	55	100
20	3/4"	34/50.5	100	60	120
25	1"	50.5	120	70	140
32	11/4"	50.5	130	82	140
40	11/2"	50.5	140	90	180
50	2"	64	156	105	200
65	21/2"	91	196	120	220
80	3"	106	228	132	240
100	4"	119	242	158	310

Applications

Tips: What are the advantages of the 3-piece design in this ball valve?

The 3-piece design offers significant benefits in terms of maintenance and versatility. It allows for easy disassembly without disturbing the pipeline, enabling quick cleaning, inspection, and replacement of internal components. This design is particularly advantageous in industries requiring frequent maintenance or stringent cleanliness, such as food, beverage, and pharmaceuticals. Additionally, the compact structure makes it easier to install and handle during system upgrades or repairs.
