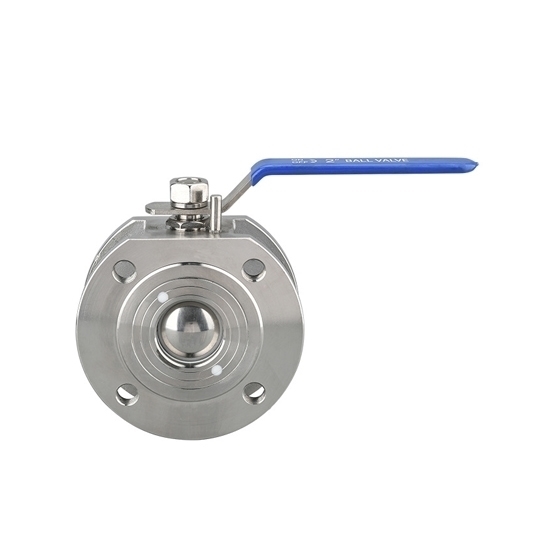

1-1/2" Stainless Steel Wafer Ball Valve

0 reviews • Write a review

from

$205.29

Ex Tax: $205.29

Stock: In Stock
Model: RDDLZ-WBV-DN40
Weight: 1.00
SKU: RDDLZ-WBV-DN40

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

DN40 wafer type ball valves are made of stainless steel (SS) and are designed for full port flow. The diameter of the ball and the flow path are the same size, minimizing friction and pressure drop. Wafer style ball valve can be operated manually, with levers or gears, or automated using electric or pneumatic actuators for remote or automated control.

Specification

Model: RDDLZ-Q71F-PN16-DN40
Type: Wafer Type Flanged Ball Valve
Port Size: 1-1/2 inch (DN40)
Body Material: 304 Stainless Steel
Ball Material: 304 Stainless Steel
Stem Material: 304 Stainless Steel
Sealing Material: PTFE
Gland Packing: PTFE
Nominal Pressure: 1.6Mpa
Strength Testing Pressure: 2.4Mpa
Seat Testing Pressure: 0.6Mpa
Applicable Media: Water, Oil, Gas
Applicable Temperature: -20℃~180℃

Dimension (Unit: mm)

Size	DN	d	D	D1	D2	T	f	H	L±1.5	W	Hole Quantity & Diameter
DN40	40	35	140	111	88	15	2	58	60	164	4-φ16

Main Parts Materials

No.	Part Name	Material	Quantity
1	Body	SS304	1
2	Cap	SS304	1
3	Seat	PTFE	2
4	Ball	SS304	1
5	Stem Washer	PTFE	1
6	Packing	PTFE	1
7	Stem	SS304	1
8	Gland	SS304	1
9	Nut	SS304	2
10	Handle	SS304	1
11	Handle Cover	PVC	1

Tips: What is the best material for a ball valve?

The best material for a ball valve depends on the specific application and the media it will be handling. Common materials include stainless steel, brass, bronze, and PVC. Stainless steel is preferred for corrosive environments, offering excellent corrosion resistance. Brass and bronze are suitable for general-purpose applications, providing good durability and resistance to corrosion. PVC is preferred for applications involving water and other non-corrosive fluids, as it is lightweight and resistant to chemical corrosion. Additionally, materials like alloy steels or exotic alloys may be chosen for extreme conditions. It's crucial to consider factors such as temperature, pressure, and the nature of the fluid when selecting the ball valve material to ensure optimal performance and longevity.
