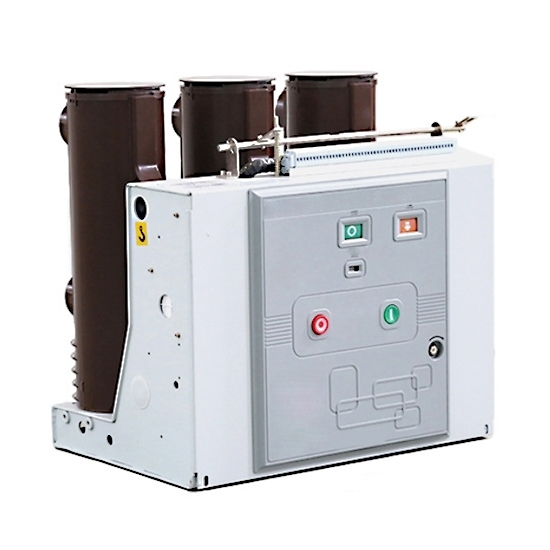

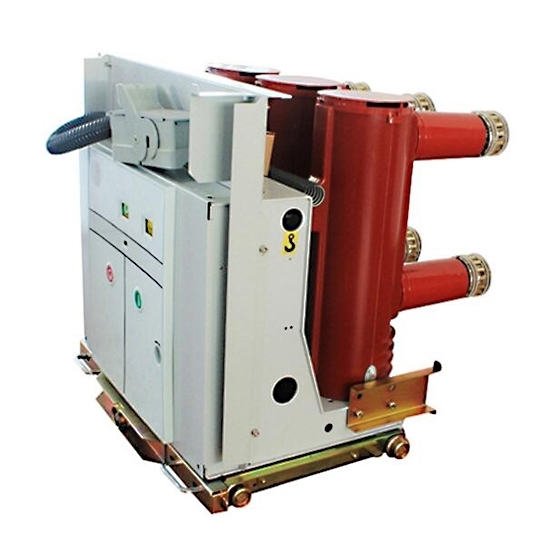

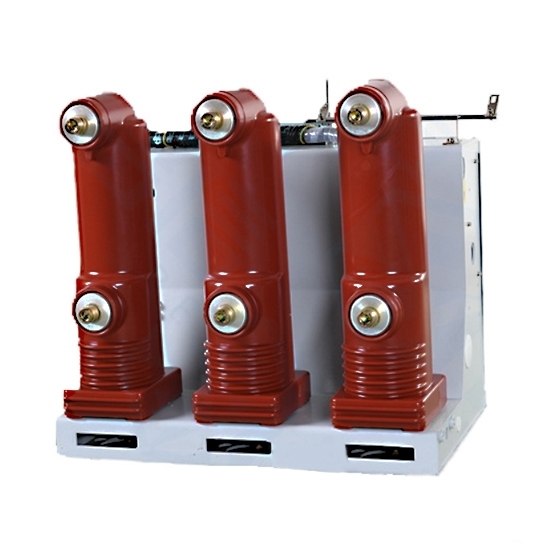

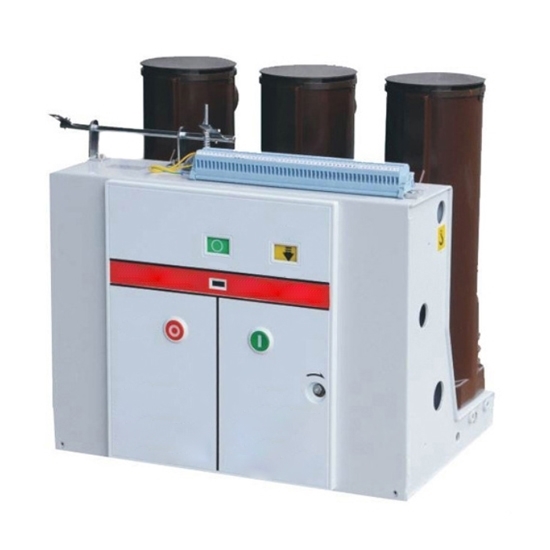

Vacuum circuit breaker with 12kv rated voltage, mechanical life about 20000 times. 12kv vacuum circuit breaker adopts the composite insulation structure, with high insulation grade, no pollution and no explosion danger.

Features:

• 12kV vcb with Ideal contact material and shape, ensuring low current carrying value and stable contact resistance.
• Integrated design of main conductive circuit made of compound isolation material and operating mechanism.
• Few components and parts, compact and logical structure, assuring more reliable and safer operation.
• Vacuum circuit breaker adopts the composite insulation structure, with high insulation level, no pollution or explosion danger.
• Compact design enables the breaker to be installed within almost all switchgears.
• Superior cost performance, 12kV vacuum circuit breaker is the ideal choice for engineering programs.

Specification: (Parameters can be customized)

Dimensions: (Unit: mm)

Schematic Diagram:

Details

Tips: Advantages of Vacuum Circuit Breaker

1. Vacuum circuit breaker is a self-contained and does not require filling of oil or gas. They do not need auxiliary air system, oil handling system etc. No need of periodic refilling.
2. Rapid recovery of very high dielectric strength on current interruption so that only half cycle or less arcing occurs after proper contact separation.
3. Current interruption occurs at the first current zero after contact separation with no re-striking, making it exceptionally good for capacitor and cable switching and long line dropping.
4. Very high power frequency and impulse withstand voltages with small contact spacing, allowing ease of actuation and timing.
5. Constant contact resistance. In vacuum the contacts cannot oxidise, therefore, their very small resistance is maintained throughout their life.
