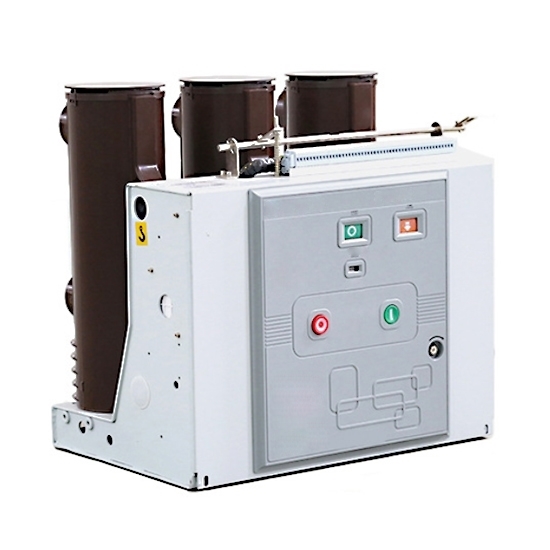

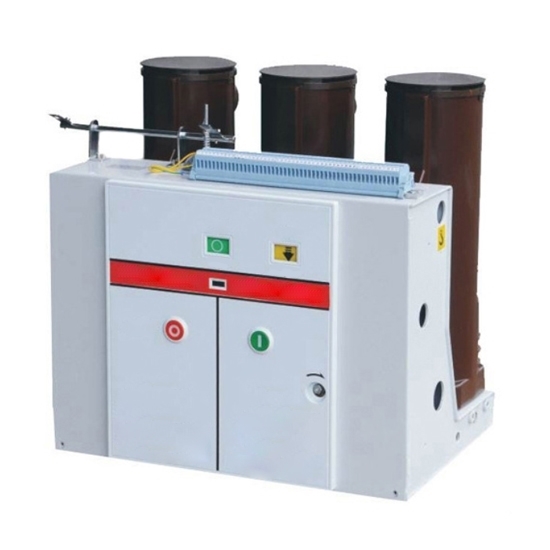

12kV Vacuum Circuit Breaker, 50Hz, 630A

0 reviews • Write a review

from

$2,730.95

Ex Tax: $2,730.95

Stock: In Stock
Model: RDDLZ-VCB-12B
Weight: 1.00
SKU: RDDLZ-VCB-12B

Available Options

Rated Current and Rated Short Circuit Breaking Current

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

12kv vacuum circuit breaker for sale online, it is suitable for indoor use. Rated current is 630A, 1250A, 2000A, 2500A. VCB circuit breaker adopts the modular spring operating mechanism, with simple structure and stable performance.

Features:

Ultra-low-resistance type vacuum interruption meets the requirements of temperature rise of large current type, and lowers the energy loss.
Ideal contact material and shape, ensuring low current carrying value and stable contact resistance.
Integrated design of main conductive circuit made of compound isolation material and operating mechanism.
12kV vcb with few components and parts, compact and logical structure, assuring more reliable and safer operation.
12kV vacuum circuit breaker adopts the composite insulation structure, with high insulation level,no pollution or explosion danger.
Compact design enables the breaker to be installed within almost all switchgears.
Superior cost performance, vacuum circuit breaker is the ideal choice for engineering programs.

Specification: (Parameters can be customized)

Model	RDDLZ-VS1-12 (ZN63A-12)
Rated voltage	12 kV
Maximum operating voltage	12 kV
Rated current	630A/1000A/1250A	1250A/1600A/2000A/2500A	1250A/1600A/2000A/3150A	2000A/2500A/3150A
Rated short circuit breaking current	20kA/25kA	31.5kA	40kA	50kA
Rated short circuit closing current	50kA/63kA	80kA	100kA	125kA
Rated peak withstand current	50kA/63kA	80kA	100kA	125kA
4S Rated short-time withstand current	20kA/25kA	31.5kA	40kA	50kA
Rated insulation level	power frequency withstand voltage（rated open circuit before and later）: 42 kV
	impulse withstand voltage（rated open circuit before and later）: 75 kV
Mechanical life	20000 times
Rated closing voltage of operating mechanism (DC)	110 V, 220 V
Rated switching voltage of operating mechanism (DC)	110 V, 220 V
Operating Frequency	50Hz/60Hz
Contactor torque	11±1
Exceed range(the compress length of contact spring)	3±0.5
Max.bouncing duration	≤ 2
Average opening speed	≤ 0.05
Average closing speed	≤ 0.08
Opening time	≤ 50
Closing time	≤ 100
Accumulative allowable wear thickness of dynamic and static contacts	3 mm
Certification	CE
Warranty	12 months

Dimensions: (Unit: mm) (Contact us for detailed dimensions)

Schematic Diagram:

Details

Tips: What are the reasons for choosing RDDLZ vacuum circuit breaker?

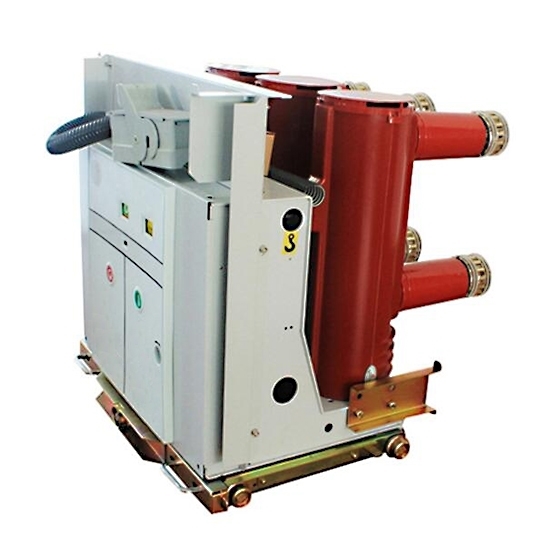

RDDLZ 12kV vacuum circuit creaker has the reliable interlocking function. Designed into fore and rear separate structure, it is used as the unit for fixed installation, in addition, it can be assembled with the chassis, as the individual handcart.

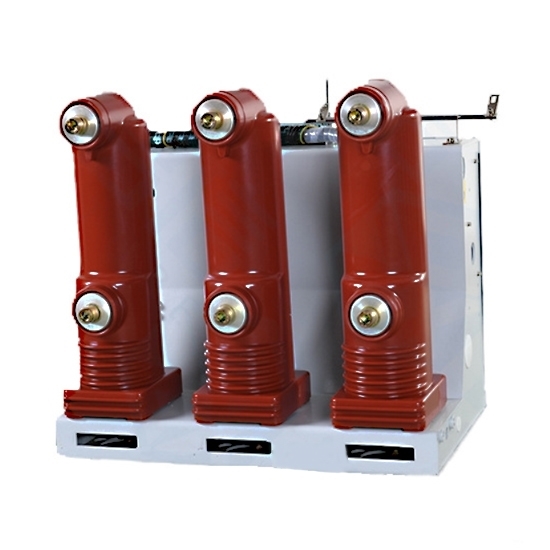

Employing the mature APG technique and advanced epoxy-resin solid encapsulation technology, the vacuum arc-extinguishing chamber, main conductive circuit, insulating support, etc. are combined organically to form a integrated solid-encapsulated pole, the surface of vacuum arc-extinguishing chamber is not affected with the environment, so as to really realize the maintenance free.
