Double Acting Welded Hydraulic Cylinder, 6 Inch (150mm) Stroke

0 reviews • Write a review

from

$138.39

Ex Tax: $138.39

Stock: In Stock
Model: RDDLZ-WHC-150MM
Weight: 1.00
SKU: RDDLZ-WHC-150MM

Available Options

Bore Diameter

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

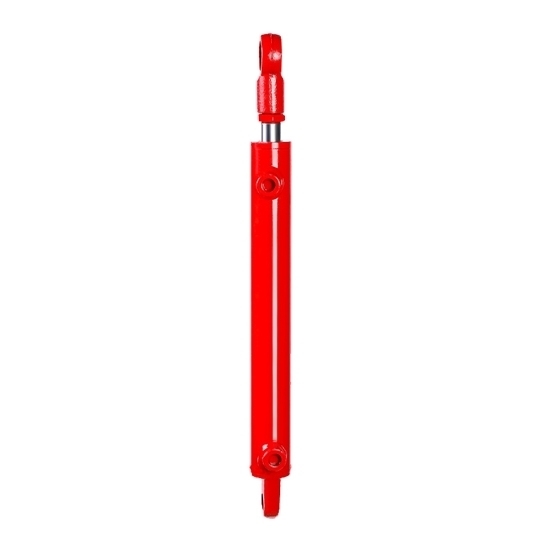

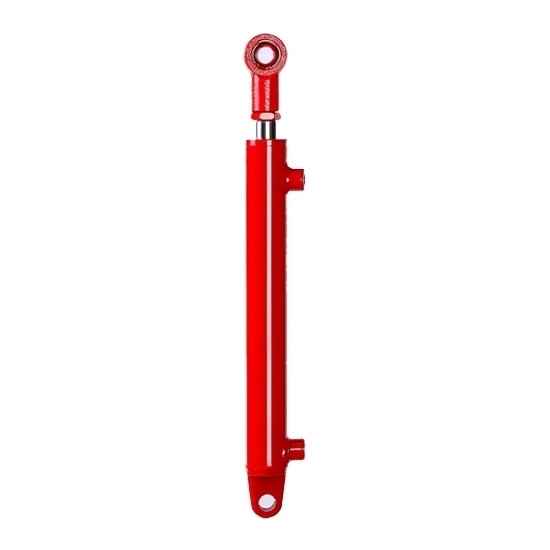

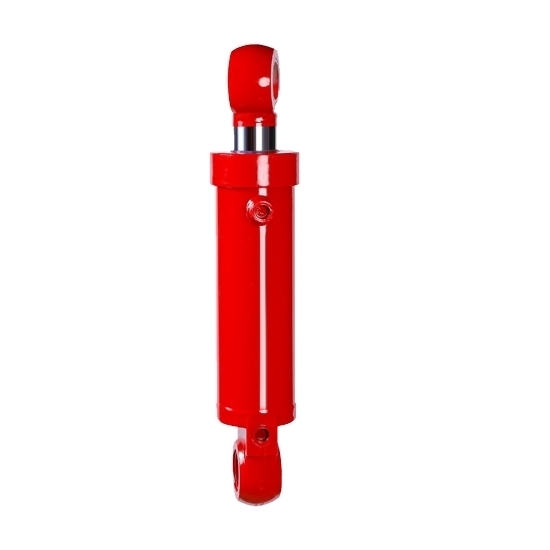

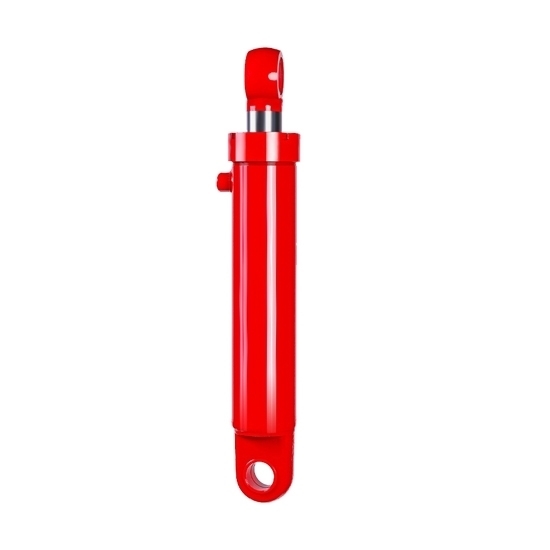

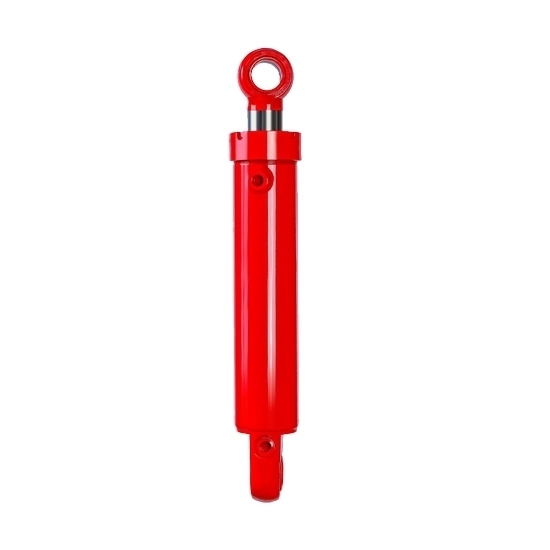

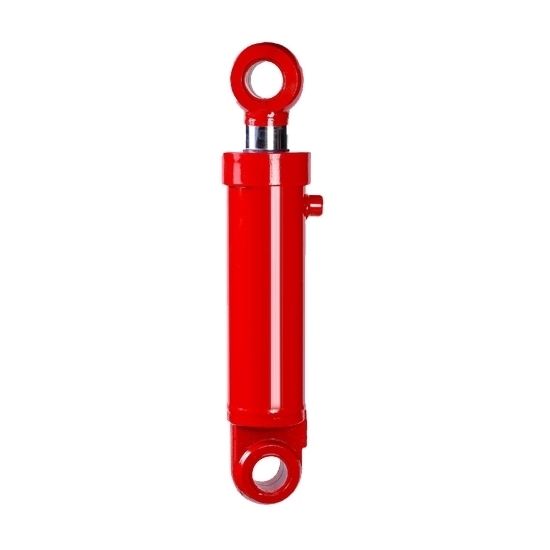

RDDLZ double acting welded hydraulic cylinder consists of a cylindrical barrel, a piston, and end caps, all securely welded together. These welded clevis hydraulic cylinders come in various sizes and configurations, making them versatile for use in diverse industrial and mobile equipment, including mini excavators, robotics, log splitters, dump trucks, press machines, dump trailers, and so on.

Specification

Model	RDDLZ-HSG40150	RDDLZ-HSG50150	RDDLZ-HSG63150	RDDLZ-HSG80150	RDDLZ-HSG100150
Acting Type	Double Acting
Stroke	6 inch (150mm)
Rated Pressure	16Mpa
Installation	Double Ear Welding Type
Speed Ratio	1:3
Bore Diameter	φ40mm	φ50mm	φ63mm	φ80mm	φ100mm
Load Capacity	2 Ton	3 Ton	5 Ton	8 Ton	12 Ton
Rated Push Force	30772N (3 Ton)	30772N (3 Ton)	49850N (5 Ton)	80384N (8 Ton)	80384N (8 Ton)
Rated Pull Force	21121N (2 Ton)	21121N (2 Ton)	31681N (3 Ton)	48984N (5 Ton)	49014N (5 Ton)
Oil Port	18*1.5	18*1.5	18*1.5	18*1.5	22*1.5

Note: If you need to customize welded hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

Dimension (Unit: mm)

RDDLZ-HSG40150

RDDLZ-HSG50150

RDDLZ-HSG63150

RDDLZ-HSG80150

RDDLZ-HSG100150

Model	Inner Diameter	Outer Diameter	Rod Diameter	Stroke	Oil Port	Pin Hole	Installation Distance	Total Length
RDDLZ-HSG40150	40	50	25	150	18*1.5	20	380	430
RDDLZ-HSG50150	50	60	28	150	18*1.5	20	390	440
RDDLZ-HSG63150	63	73	35	150	18*1.5	30	420	490
RDDLZ-HSG80150	80	90	50	150	18*1.5	40	450	530
RDDLZ-HSG100150	100	112	63	150	22*1.5	50	520	610

Tips: How does a hydraulic cylinder work?

A hydraulic cylinder is a mechanical device that converts fluid power into linear motion. It consists of a cylindrical tube, a piston, and hydraulic fluid. When force is applied to the fluid within the cylinder, typically by a pump, it creates pressure. This pressure acts on the piston, causing it to move within the cylinder. The piston is connected to a rod, and as it moves, it generates linear force and motion.

The key principle at work is Pascal's law, which states that any change in pressure applied to an enclosed fluid is transmitted undiminished in all directions. In a hydraulic cylinder, this pressure is harnessed to produce controlled and powerful linear motion, making them valuable in a wide range of applications, from construction equipment and manufacturing machinery to automotive braking systems and more. By controlling the flow of hydraulic fluid, the direction and speed of the piston's movement can be precisely regulated, allowing for precise control over the machine or system it powers.
