Nema 17 Stepper Motor Linear Actuator, 2 Phase, 4V, 1.2A

0 reviews • Write a review

from

$132.23

Ex Tax: $132.23

Stock: In Stock
Model: RDDLZ-STEPL-412
Weight: 1.00
SKU: RDDLZ-STEPL-412

Available Options

Short Description

Motor Type

Motor Screw Lead

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

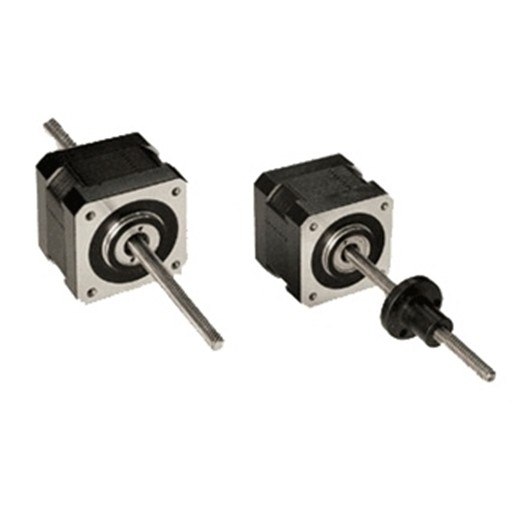

1.2A 4V Nema 17 Stepper Motor Linear Actuator with a holding torque of 36 Oz-in, is available in external and non-captive options. It is a cost effective solution to meet your specific application requirements.
Stepper Motor Linear Actuator Specification

Model Type	External Shaft	Non-Captive Shaft
	42H39-1206AST	42H39-1206GTS
Weight	4 kg
Length	39 mm
Phase	2 phase
Step Angle	1.8°
Rated Voltage	4 V
Rated Current	1.2 A
Resistance	3.3 Ω
Holding Torque	36 Oz-in
Number of Leads	4
Rotor Inertia	54 g-cm²

Select Leadscrew

Choose your stepper motor linear actuator screw from one of the available options:

Screw Diameter		Lead		Travel Per 1.8 Step
(in)	(mm)	(in/rev)	(mm/rev)	(in/step)	(mm/step)
0.315	8	0.079	2	0.00039	0.01
0.315	8	0.157	4	0.00079	0.02
0.315	8	0.315	8	0.00157	0.04

Stepper Motor Linear Actuator Dimension (Unit=mm)

1. Non-captive shaft style

L=39mm

2. External shaft style

L=39mm

Details

Tips: Service life of stepper motor linear actuator
The service life of stepper motor linear actuator refers to the cycle times that it can move and maintain stepping precision under the specified load. An operation cycle time includes the whole movement that extends and retracts to the initial position. The service life of a stepper linear actuator depends on the service life of the motor and the loss of lead screw drive. Under normal circumstances, non-captive stepper motor linear actuator can complete up to 20 million times of operation cycle while the external type motor can provide up to 25000 hours of service life. The ultimate fatigue and service life is determined by the specific application situation.
