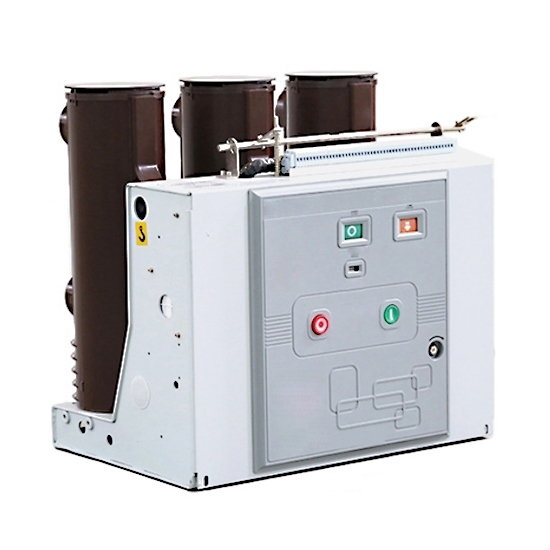

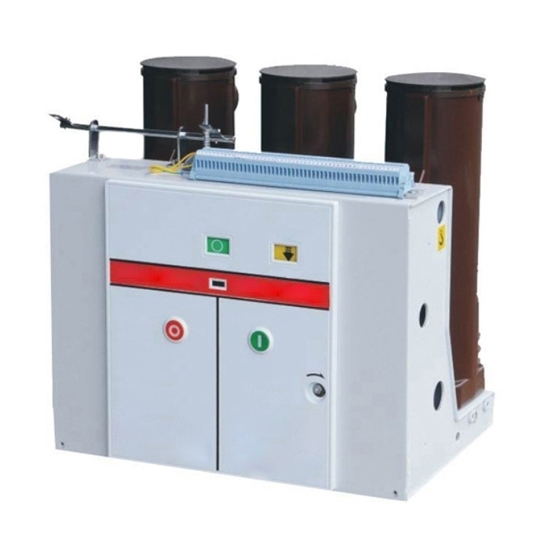

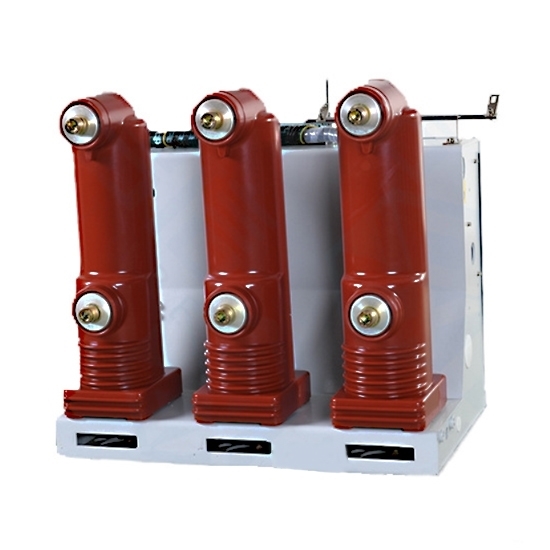

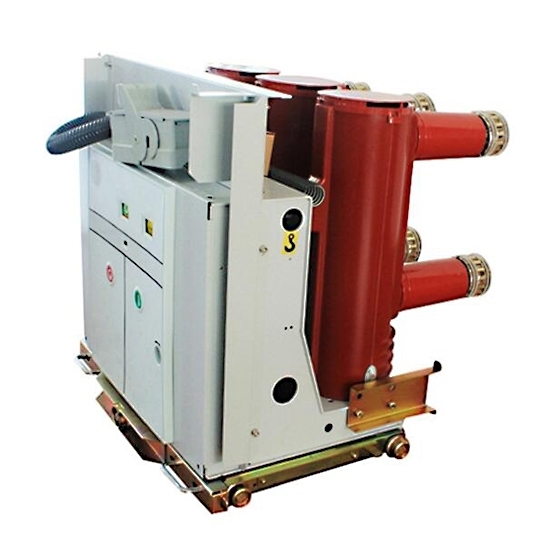

11kV Vacuum Circuit Breaker

0 reviews • Write a review

from

$3,377.85

Ex Tax: $3,377.85

Stock: In Stock
Model: RDDLZ-VCB-11
Weight: 1.00
SKU: RDDLZ-VCB-11

Available Options

Rated Current and Rated Short Circuit Breaking Current

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

11kv 630a vacuum circuit breaker for sale online. 11 kv vacuum circuit breaker mechanical life about 20000 times, rated short circuit breaking current is 20kA, 31kA, 40kA, 50kA.

Features:

11kv vcb breaker with ideal contact material and shape, ensuring low current carrying value and stable contact resistance.
Integrated design of main conductive circuit made of compound isolation material and operating mechanism.
11kv 630A vcb with few components and parts, compact and logical structure, assuring more reliable and safer operation.
Compact design enables the breaker to be installed within almost all switchgears.
11kv circuit breaker price is affordable, superior cost performance, ideal choice for engineering programs.

Parameter List: (Parameters can be customized)

Model	RDDLZ-VCB-11
Rated voltage	11 kV
Maximum operating voltage	11 kV
Rated current	630A/1000A/1250A	1250A/1600A/2000A/2500A	1250A/1600A/2000A/3150A	2000A/2500A/3150A
Rated short circuit breaking current	20kA/25kA	31.5kA	40kA	50kA
Rated short circuit closing current	50kA/63kA	80kA	100kA	125kA
Rated peak withstand current	50kA/63kA	80kA	100kA	125kA
4S Rated short-time withstand current	20kA/25kA	31.5kA	40kA	50kA
Rated insulation level	power frequency withstand voltage（rated open circuit before and later）: 42 kV
	impulse withstand voltage（rated open circuit before and later）: 75 kV
Mechanical life	20000 times
Rated closing voltage of operating mechanism (DC)	110 V, 220 V
Rated switching voltage of operating mechanism (DC)	110 V, 220 V
Contactor torque	11±1
Exceed range(the compress length of contact spring)	4±0.5
Max.bouncing duration	≤ 2
Average opening speed	≤ 0.05
Average closing speed	≤ 0.08
Opening time	≤ 50
Closing time	≤ 100
Accumulative allowable wear thickness of dynamic and static contacts	3 mm
Certification	CE
Warranty	12 months

Dimensions: (Unit: mm)Schematic Diagram:

Details

Tips: What is Vacuum Ciucuit Breaker?

"Vacuum circuit breaker" is named because its arc extinguishing medium and the insulation medium of contact clearance after arc extinguishing are high vacuum. It has the advantages of small volume, light weight, suitable for frequent operation, arc extinguishing without maintenance, and is widely used in distribution networks. Vacuum circuit breaker is an indoor power distribution device in 3-10kV, 50Hz three-phase AC system, which can be used for the protection and control of electrical equipment in industrial and mining enterprises, power plants and substations. It is especially suitable for places requiring no oil, less maintenance and frequent operation. Circuit breakers can be configured in central cabinets, double cabinets and fixed cabinets for control and protection of high voltage electrical equipment.
