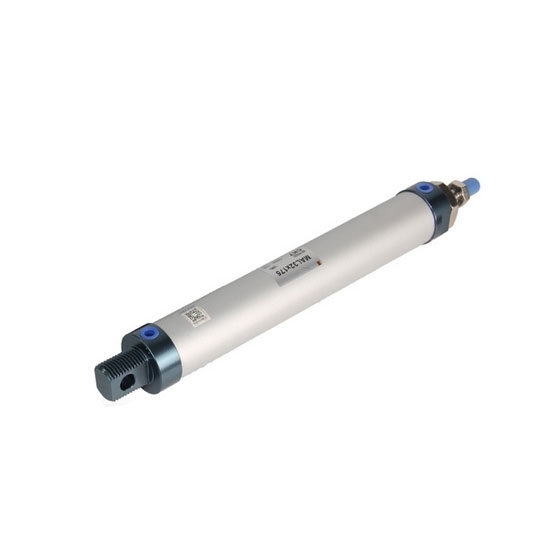

Small Pneumatic Cylinder, 20mm Bore, 300mm Stroke

0 reviews • Write a review

from

$101.98

Ex Tax: $101.98

Stock: In Stock
Model: RDDLZ-PC-20300
Weight: 1.00
SKU: RDDLZ-PC-20300

Available Options

Short Description

Bore X Stroke

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Small pneumatic cylinder adopts high-precision aluminum alloy cylinder body, high strength, no shape, no leakage, good corrosion resistance, long service life, piston rod with external thread and internal thread, good running performance.

Specification

Model: RDDLZ-PC-CMAL
Bore Size: 20mm
Stroke: 300mm
Use Fluid: Air
Action Mode: Single acting
Working Pressure Range: 0.2 MPa ~ 1.0 MPa (28 ~ 145 psi)
Guaranteed Pressure Resistance: 1.5 MPa (215 psi)
Ambient & Fluid Temperature: -10~+60°C
Buffer: Cushioning on both sides
Pipe Diameter: PT 1/4
Stroke Length Tolerance: 0~150^+1.0₀
Use Piston Velocity: 50~500mm/s
Certificate: CE

Small Pneumatic Cylinder Detail

Tips: How to measure cylinder stroke?

Push the cylinder piston to the bottom volume data A
Press all cylinder pistons out of measurement data B
The value obtained by B-A is the stroke of the cylinder)
