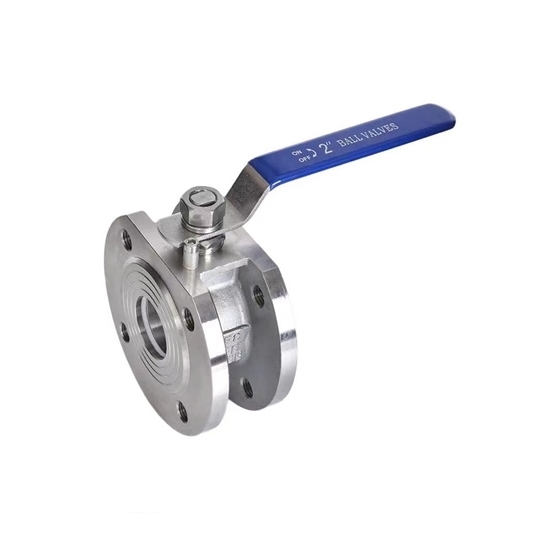

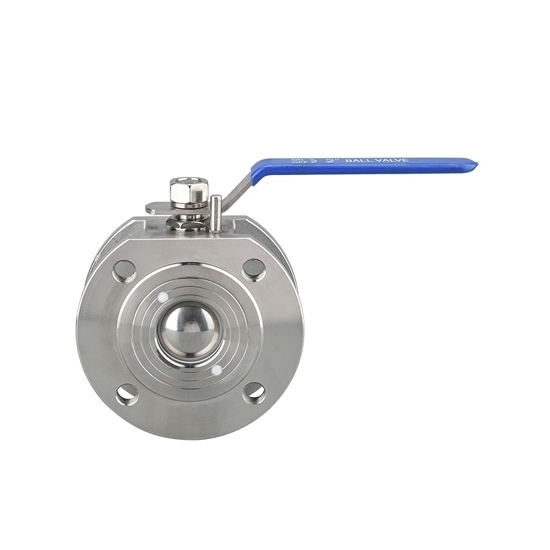

1" Stainless Steel Wafer Ball Valve

0 reviews • Write a review

from

$142.09

Ex Tax: $142.09

Stock: In Stock
Model: RDDLZ-WBV-DN25
Weight: 1.00
SKU: RDDLZ-WBV-DN25

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This ball valve cannot be used for drinking water.

1 inch (DN25) stainless steel wafer ball valve can come with various actuation methods, such as manual (lever or gear), electric, or pneumatic actuators, depending on the specific application requirements.

Specification

Model: RDDLZ-Q71F-PN16-DN25
Type: Wafer Type Flanged Ball Valve
Port Size: 1 inch (DN25)
Body Material: 304 Stainless Steel
Ball Material: 304 Stainless Steel
Stem Material: 304 Stainless Steel
Sealing Material: PTFE
Gland Packing: PTFE
Nominal Pressure: 1.6Mpa
Strength Testing Pressure: 2.4Mpa
Seat Testing Pressure: 0.6Mpa
Applicable Media: Water, Oil, Gas
Applicable Temperature: -20℃~180℃

Dimension (Unit: mm)

Size	DN	d	D	D1	D2	T	f	H	L±1.5	W	Hole Quantity & Diameter
DN25	25	22	110	85	68	14	2	40	42	132	4-φ12

Main Parts Materials

No.	Part Name	Material	Quantity
1	Body	SS304	1
2	Cap	SS304	1
3	Seat	PTFE	2
4	Ball	SS304	1
5	Stem Washer	PTFE	1
6	Packing	PTFE	1
7	Stem	SS304	1
8	Gland	SS304	1
9	Nut	SS304	2
10	Handle	SS304	1
11	Handle Cover	PVC	1

Tips: Does a wafer ball valve need a drain?

A wafer ball valve typically does not require a separate drain, as it is designed for efficient on/off control of fluid flow. Wafer valves are compact and installed between flanges, securing the valve in the pipeline. Drainage is often addressed through the system design rather than the valve itself. However, specific applications and system requirements may dictate the need for additional features such as a drain. If the fluid being handled is prone to accumulation or if drainage is crucial for system maintenance, a drain valve may be installed separately. Ultimately, the decision to incorporate a drain depends on the specific operational needs and considerations of the fluid system in which the wafer ball valve is employed.
