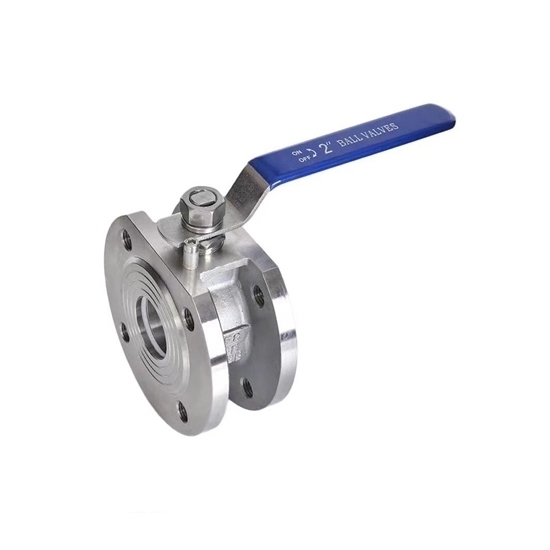

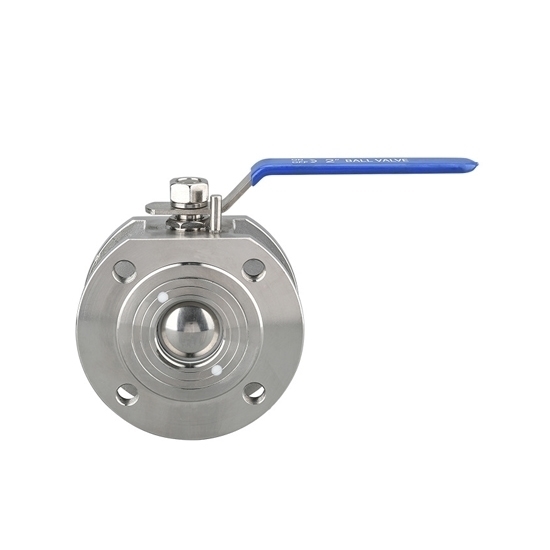

1-1/4" Stainless Steel Wafer Ball Valve

0 reviews • Write a review

from

$180.39

Ex Tax: $180.39

Stock: In Stock
Model: RDDLZ-WBV-DN32
Weight: 1.00
SKU: RDDLZ-WBV-DN32

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This ball valve cannot be used for drinking water.

1-1/4 inch (32mm) wafer type ball valve is a type of SS ball valve designed for use in pipelines to control the flow of fluids. When the hole aligns with the flow path, the valve is open, allowing fluid to pass through. When the ball is rotated 90 degrees, the hole is perpendicular to the flow path, blocking the flow and closing the valve.

Specification

Model: RDDLZ-Q71F-PN16-DN32
Type: Wafer Type Flanged Ball Valve
Port Size: 1-1/4 inch (DN32)
Body Material: 304 Stainless Steel
Ball Material: 304 Stainless Steel
Stem Material: 304 Stainless Steel
Sealing Material: PTFE
Gland Packing: PTFE
Nominal Pressure: 1.6Mpa
Strength Testing Pressure: 2.4Mpa
Seat Testing Pressure: 0.6Mpa
Applicable Media: Water, Oil, Gas
Applicable Temperature: -20℃~180℃

Dimension (Unit: mm)

Size	DN	d	D	D1	D2	T	f	H	L±1.5	W	Hole Quantity & Diameter
DN32	32	28	133	100	78	15	2	52.5	57	171	4-φ16

Main Parts Materials

No.	Part Name	Material	Quantity
1	Body	SS304	1
2	Cap	SS304	1
3	Seat	PTFE	2
4	Ball	SS304	1
5	Stem Washer	PTFE	1
6	Packing	PTFE	1
7	Stem	SS304	1
8	Gland	SS304	1
9	Nut	SS304	2
10	Handle	SS304	1
11	Handle Cover	PVC	1

Tips: What are the advantages of a wafer ball valve?

Wafer ball valves offer several advantages in industrial applications. Their compact design and lightweight construction make them easy to install and cost-effective. The wafer style, with a flangeless body, reduces the overall weight and footprint, making them suitable for space-constrained installations. Additionally, these valves provide excellent sealing capabilities, ensuring minimal leakage. Their quick-acting, quarter-turn operation allows for swift and efficient control of fluid flow. Wafer ball valves are versatile, compatible with various media, and exhibit high durability, resisting corrosion and wear. The reduced torque requirements contribute to energy efficiency. Overall, the advantages of wafer ball valves lie in their compact design, easy installation, reliable sealing, versatility, and efficient flow control, making them a preferred choice in diverse industrial settings.
