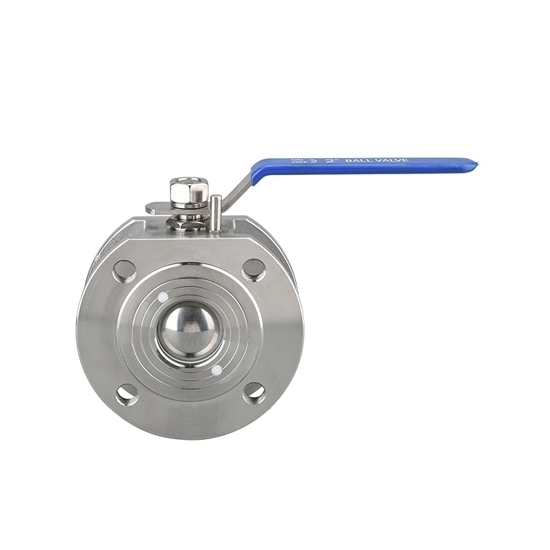

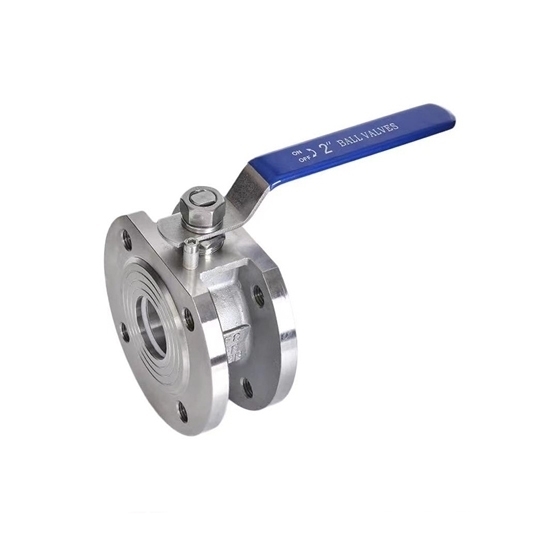

1/2" Stainless Steel Wafer Ball Valve

0 reviews • Write a review

from

$103.39

Ex Tax: $103.39

Stock: In Stock
Model: RDDLZ-WBV-DN15
Weight: 1.00
SKU: RDDLZ-WBV-DN15

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This ball valve cannot be used for drinking water.

15mm wafer type ball valve is a type of quarter-turn valve with a full port design that indicates the bore of the ball is larger, minimizing flow restrictions and maximizing flow capacity.

Specification

Model: RDDLZ-Q71F-PN16-DN15
Type: Wafer Type Flanged Ball Valve
Port Size: 1/2 inch (DN15)
Body Material: 304 Stainless Steel
Ball Material: 304 Stainless Steel
Stem Material: 304 Stainless Steel
Sealing Material: PTFE
Gland Packing: PTFE
Nominal Pressure: 1.6Mpa
Strength Testing Pressure: 2.4Mpa
Seat Testing Pressure: 0.6Mpa
Applicable Media: Water, Oil, Gas
Applicable Temperature: -20℃~180℃

Dimension (Unit: mm)

Size	DN	d	D	D1	D2	T	f	H	L±1.5	W	Hole Quantity & Diameter
DN15	15	14	95	65	45	12	2	32	38	110	4-φ12

Main Parts Materials

No.	Part Name	Material	Quantity
1	Body	SS304	1
2	Cap	SS304	1
3	Seat	PTFE	2
4	Ball	SS304	1
5	Stem Washer	PTFE	1
6	Packing	PTFE	1
7	Stem	SS304	1
8	Gland	SS304	1
9	Nut	SS304	2
10	Handle	SS304	1
11	Handle Cover	PVC	1

Tips: Difference between wafer ball valve and wafer check valve

A wafer ball valve and a wafer check valve serve distinct purposes in fluid control systems. A wafer ball valve is primarily designed for on/off control of flow, utilizing a rotating ball to open or close the passage. It offers low resistance to fluid flow when fully open, making it suitable for quick and efficient isolation.

A wafer check valve is engineered to prevent backflow in pipelines. It features a hinged or spring-loaded disc that allows fluid to flow in one direction while blocking reverse flow. The wafer check valve is often employed to safeguard pumps and other equipment from damage caused by backflow. Unlike the ball valve, the check valve operates automatically, responding to changes in flow direction without manual intervention. In summary, the wafer ball valve is geared towards flow regulation, while the wafer check valve prioritizes preventing backflow in a pipeline.
