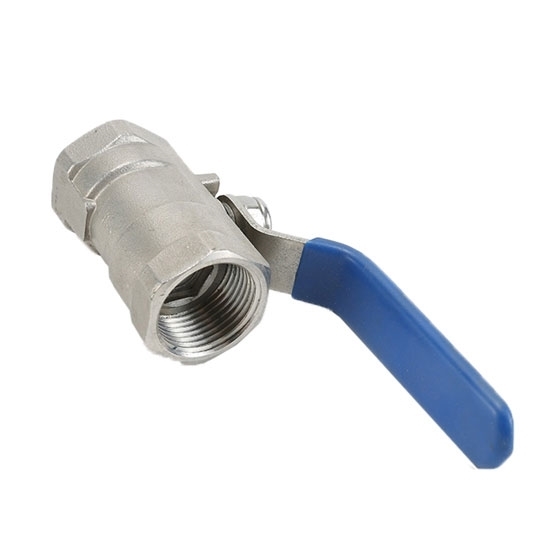

1 Piece Stainless Steel Ball Valve, 3/8 Inch

0 reviews • Write a review

from

$29.68

Ex Tax: $29.68

Stock: In Stock
Model: RDDLZ-BV-Q11F-38
Weight: 1.00
SKU: RDDLZ-BV-Q11F-38

Available Options

Short Description

Material

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

1 piece stainless steel ball valve at cheap price, 3/8 inch size, stainless steel material makes the ball valve difficult to be corroded and oxidized in the application, and has a long service life.

Specification

Model	RDDLZ-BV-Q11F-38
Connection Method	Internal Thread
Material	304 Stainless steel/316 Stainless steel
Operating Temperature	-20℃~+150℃
Pressure Rating	1000PSI W.O.G
Pressure Test	API598
DN	10
NPS	3/8 Inch
FxF	45
φd	7
h1	36
I1	67
CV Factor	4
Torqur (N.m)	67
Weight	1 kg
Warranty	12 Months
Certificate	ISO 9001: 2008

3/8 Inch Ball Valve Dimension (unit: mm)

1 Piece Ball Valve Part List

No.	Description	Material
1	Body	CF8M
2	Cap	CF8M
3	Stem	SS316
4	Ball	CF8M
5	Seat	PTFE
6	Joint Gasket	PTFE
7	Thrust Washer	PTFE
8	Stem Packing	PTFE
9	Washer	SS304
10	Spring Washer	SS304
11	Stem Nut	SS304
12	Locking Device	SS304
13	Handle	SS304
14	Handle Sleeve	Plastic

Stainless Steel Ball Valve Applications

Tips: What is a ball valve?

Ball valve, a valve in which the opening and closing part (ball) is driven by the valve stem and rotates around the axis of the ball valve. It can also be used for fluid adjustment and control. The hard-sealed V-shaped ball valve has a strong shear force between the V-shaped core and the metal seat of the hard alloy. It is especially suitable for fibers and small solid particles. And other media. The multi-way ball valve on the pipeline can not only flexibly control the confluence, divergence, and flow direction switching of the medium, but also close any channel to connect the other two channels. This type of valve should generally be installed horizontally in the pipeline. According to the driving mode, the ball valve is divided into: pneumatic ball valve, electric ball valve, manual ball valve.
