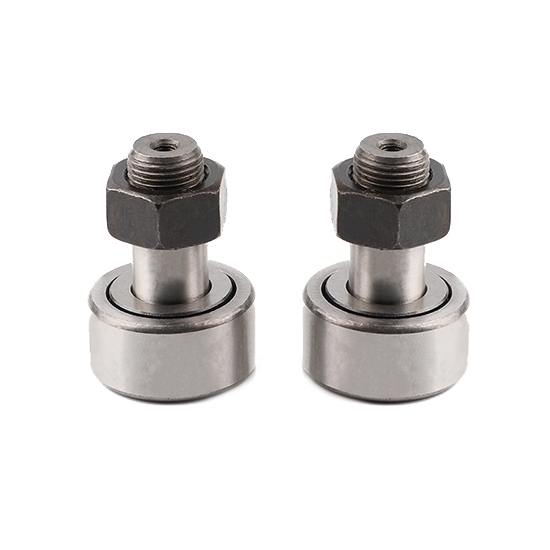

Track Roller Bearing, Stud Type, Diameter 12mm

0 reviews • Write a review

from

$37.20

Ex Tax: $37.20

Stock: In Stock
Model: RDDLZ-TRB-12
Weight: 1.00
SKU: RDDLZ-TRB-12

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

12mm track roller bearing for sales with the eccentric 0.25e, the cam follower bearing is composed of outer ring cages pressed in the rolling bodies' axial guidance and the retaining edges steps which form highly effective gap sealing.

Specification

Model: RDDLZ-CF12
Inner diameter: 12mm
Outer diameter: 30mm
Width: 14mm
Accuracy class: P4
Eccentric: 0.25e
Basic load rating: Dynamic: 270kgf, Static: 170kgf
Material: Bearing steel

Dimension (mm)

Model	D	C	G	D1	G1	B max	B1 max	B2	C1
RDDLZ-CF12	30	14	M6*1	12	8	12.2	28.2	16	0.6

Application

Tips: What does a cam follower bearing do?

The cam follower bearing is a compact and highly rigid bearing with a shaft. It contains needle rollers and is used as a guide roller for cam mechanisms or straight motion. Since its outer ring rotates while keeping direct contact with the mating surface, this product is thick-walled and designed to bear an impact load.
