Track Roller Bearing, Stud Type, Diameter 16mm

0 reviews • Write a review

from

$36.91

Ex Tax: $36.91

Stock: In Stock
Model: RDDLZ-TRB-16
Weight: 1.00
SKU: RDDLZ-TRB-16

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

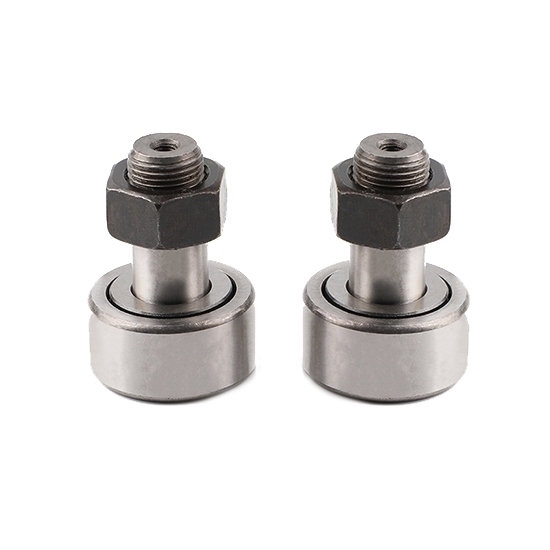

High-accuracy cam follower bearing comes with a diameter of 16mm, P4 accuracy class. The track roller with solid sealed which can prevent the entry of foreign matters like dust, this would extend the life of the roller bearing.

Specification

Model: RDDLZ-CF16
Inner diameter: 16mm
Outer diameter: 35mm
Width: 18mm
Accuracy class: P4
Eccentric: 0.3e
Basic load rating: Dynamic: 410kgf, Static: 320kgf
Material: Bearing steel

Dimension (mm)

Model	D	C	G	D1	G1	B max	B1 max	B2	C1
RDDLZ-CF16	35	18	M10*1.25	16	12	13.2	36.2	23	0.6

Application

Tips: How to choose a roller bearing?

First, know the type and amount of bearing load that your application will place on the bearing.
Know the Rotational Speed of Your Application.
Factor in Bearing Runout & Rigidity.
Find the Right Lubrication for Your Bearings Needs.
