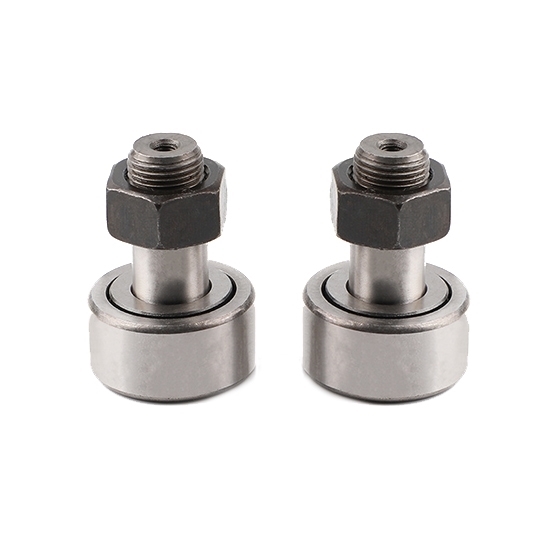

Track Roller Bearing, Stud Type, Diameter 10mm

0 reviews • Write a review

from

$38.97

Ex Tax: $38.97

Stock: In Stock
Model: RDDLZ-TRB-10
Weight: 1.00
SKU: RDDLZ-TRB-10

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

A high-performance track roller bearing is a compact and highly rigid bearing with a shaft. It comes with a 10mm diameter, 0.25e eccentric. The maintenance cost of the cam followers and track roller is low, which can improve the production efficiency, as well as the reliability of the equipment.

Specification

Model: RDDLZ-CF10
Inner diameter: 10mm
Outer diameter: 22mm
Width: 12mm
Accuracy class: P4
Eccentric: 0.25e
Basic load rating: Dynamic: 280kgf, Static: 180kgf
Material: Bearing steel

Dimension (mm)

Model	D	C	G	D1	G1	B max	B1 max	B2	C1
RDDLZ-CF3	22	10	M5*0.8	12	7	10	23	13	0.5

Application

Tips: What is a track roller bearing?

Ball-bearing track rollers are self-retaining, single or double-row units with particularly thick-walled outer rings. In addition to high radial forces, these bearings can also support axial forces in both directions. The outer rings have a crowned or cylindrical outside surface.
