1/4 Hp Piston Air Motor, 900 Rpm, 259 L/min

0 reviews • Write a review

from

$672.70

Ex Tax: $672.70

Stock: In Stock
Model: RDDLZ-DAM3
Weight: 1.00
SKU: RDDLZ-DAM3

Available Options

Installation

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Lower price piston air motor with starting torque 1.96 Nm, stopping torque 2.94 Nm, 1:1 gear ratio. The pneumatic piston motor has the advantages of simple structure, small size, light weight, large horsepower, easy operation and long service life.

Specification

Model	RDDLZ-DAM3
Power	1/4 hp
Gear ratio	1:1
Rated speed	900 rpm
Rated torque	1.37 Nm
Max. no-load speed	1800 rpm
Air consumption	259 L/min
Starting torque	1.96 Nm
Stopping torque	2.94 Nm
Mounting type	Basic type/ flange type/ foot type
Certificate	CE
Warranty	12 months

Dimension

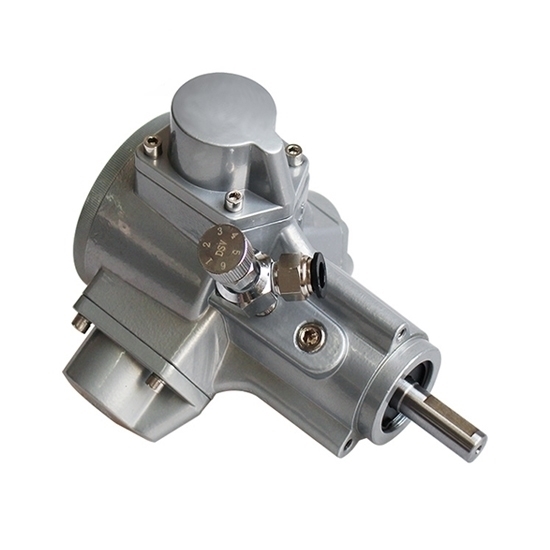

Basic type

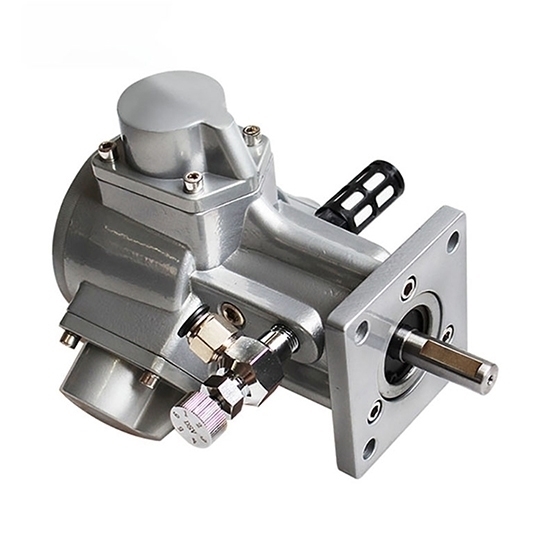

Flange type

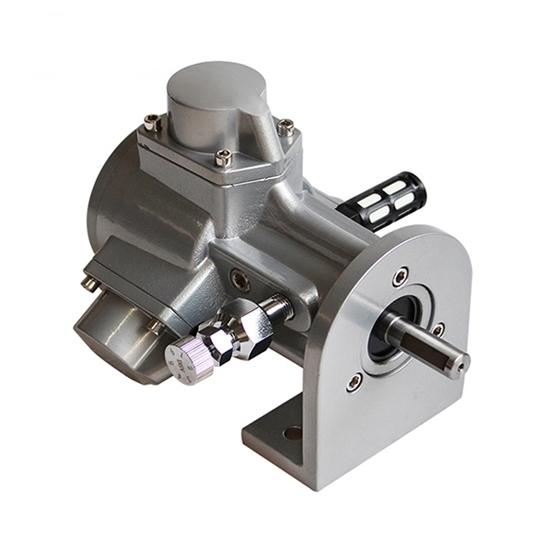

Foot type

Model	Dimension (mm)
Model	A1	A2	A3	A4	B	C	C1	D	E	F	G	H	J	M	N	M1	N1	M2	N2	Q	Q1	P
RDDLZ-DAM3	204	166	142	160	158	14	62	10	4	39	M6	48h7	26	86	65	100	70	50	30	9	9	71

Details

Tips: The Differences between Piston Air Motor and Motor.

1. The size of piston air motor is smaller and which can produce high power.
2. The pneumatic piston motor has high adaptability, small temperature rise, and the speed can be changed with the load until the overload is stopped, without any damage to the air motor, so a lower safety factor can be considered when choosing.
3. The piston air motor has emergency starting and emergency stopping, especially suitable for frequent start occasions, and it is very easy to change direction.
4. Pneumatic piston motor has simple stepless speed regulation, from zero to maximum, flexible operation.
5. Large starting torque of piston air motor, and which can start with load.
