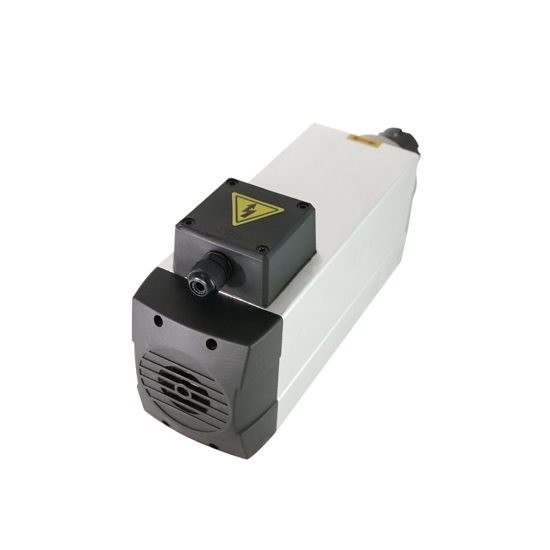

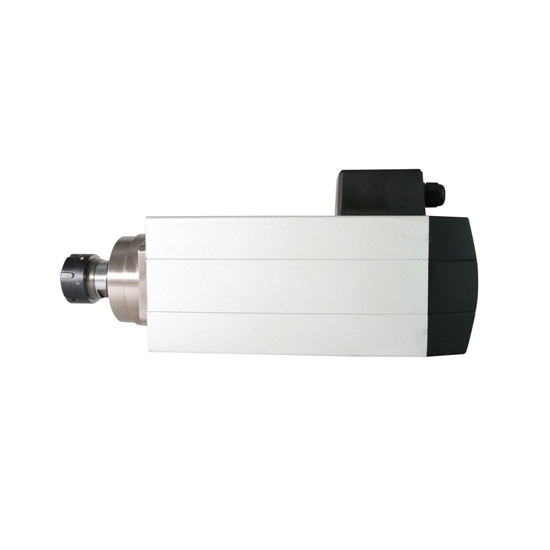

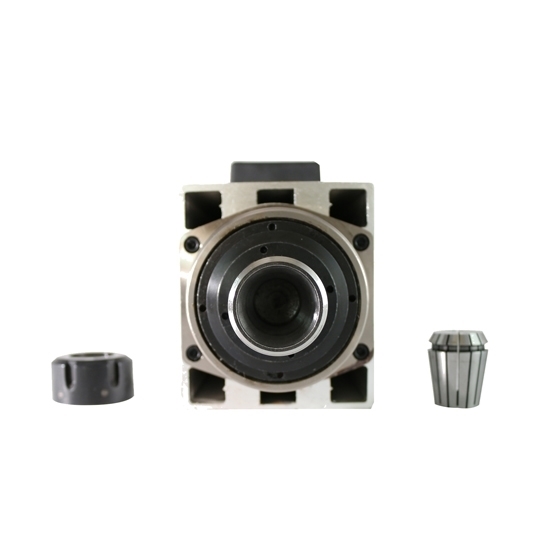

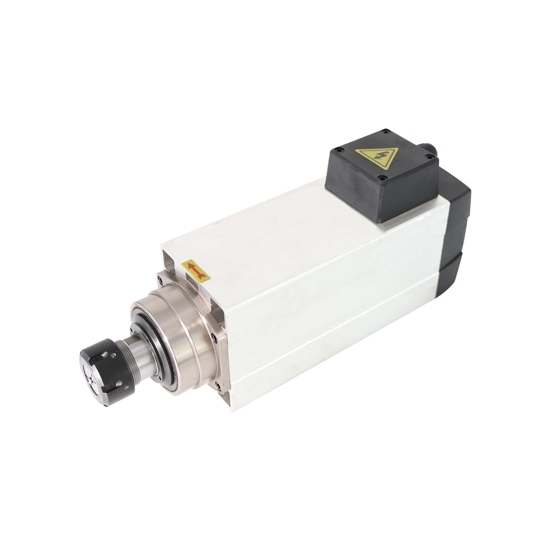

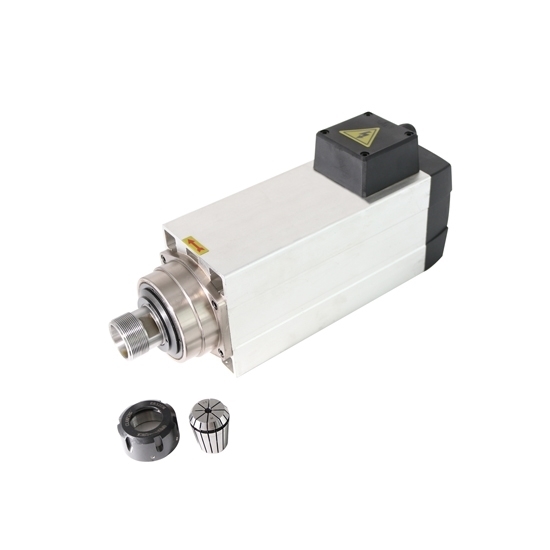

6 kW CNC spindle motor for sale at a good price, 18000 rpm speed, 2.78 Nm torque, 300Hz frequency, 3 phase 380V AC operating voltage, ER32 (φ3.175 mm - φ20 mm) collet.

Feature

• Spindle motor with air cooling fan and ER32 collet ensures smooth running.
• Fast response, strong overload capacity, low noise, and high mechanical precision.
• High-quality 4 pcs bearings (7008Cx2 + 7002Cx2), runout off less than 0.01mm, tapered bore less than 0.005mm.
• P4 grade ceramic ball bearings are used as spindle bearings, which improves the service life under high-speed revolution.
• Lubricated with grease, which is resistant to 200 degrees high temperature.
• Tight sealing and two-layer dustproof design.

Application

This series of air-cooled electric spindle motors mainly match with variable frequency drives or engraving machines, CNC router machines, and are used for high-speed profiling, drilling, cutting, engraving, and groove milling of wood, metal, plastics, foam, rubber, and other materials.

Note: Ensure that the spindle motor and VFD are compatible. The VFD’s specifications and parameter settings must align with the spindle motor’s nominal parameters. Incorrect settings can lead to spindle motor damage or burnout.

Specification

Details

Tips: Motor Speed is a Key Factor When Selecting a CNC Spindle

For high-speed spindle motors, whether light metal processing or heavy metal processing, the motor speed is selected according to the nature of the processed material. The reason why the material with high processing density should be 24000~60000 rpm is because the material has high density, strong hardness, and low-speed processing will cause travel burrs and uneven surfaces. The reason why 3000-24000 rpm is selected for processing low-density materials is that high-speed rotation has the risk of cracking for low-density materials. So when choosing a high-speed CNC spindle motor, the first choice is its speed.
