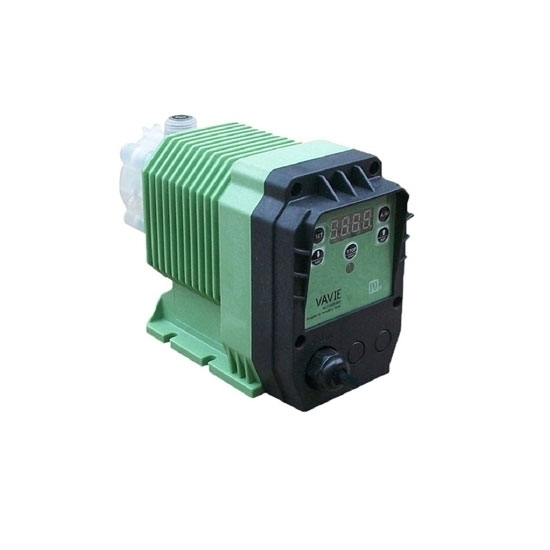

Diaphragm Dosing Pump, 3.12 L/h Flow

Diaphragm Dosing Pump, 3.12 L/h Flow
Diaphragm Dosing Pump, 3.12 L/h Flow
0 reviews • Write a review
from
$289.86
Ex Tax: $289.86
  • Stock: In Stock
  • Model: RDDLZ-DP-V003008
  • Weight: 1.00
  • SKU: RDDLZ-DP-V003008

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Sell solenoid metering pump at the best price, pressre 7.6 bar, 3.12 L/h flow, used in chemical industry sewage treatment, swimming pool water treatment and reverse osmosis system.

Solenoid Metering Pump Features

  • Green screen digital display, brand new circuit design, more stable operation
  • Stroke frequency button adjustment
  • New type of one-way valve assembly, PTFE valve seat, acid and alkali resistance, more reasonable structure, stronger sealing
  • ACEH/PC shell, strong and durable structure, weather resistance is far better than ABS material
  • A variety of pump heads and sealing materials are available, suitable for a wider range of media delivery
  • Optional low liquid level stop pump and alarm function
  • Added diaphragm damage protection and alarm function
  • Optional external pulse signal or 4-20mA analog signal.

Diaphragm Dosing Pump Specification:

ModelRDDLZ-DP-V03008
Power12W
Flow3.12 L/h
Wet Suction Range7.6 Bar
Stroke120 N/m
Distance1.5m
Dosing Pump Tubing4 x 6mm
InterfaceDN 15mm
Power Supply220V
Repeated Measurement Accuracy-5%~5%
Allowable Ambient Temperature5℃~180℃ (PTFE pump head ),
Allowable Medium ViscosityHigh viscosity pump head ≤ 1000 mPA.s
Particle Diameter≤0.15mm
Protection ClassIP55
Insulation ClassF
Weight2.9 kg
Warranty Period12 Months

Chemical Solenoid metering Pump Dimension (unit: mm)

Tips: Structure of diaphragm dosing pump

Diaphragm: Metering pumps are generally highly corrosive liquids, so they have high anti-corrosion requirements for diaphragms that are in direct contact with the liquid.

Pump head: pump head is the flow part of the measured fluid, RDDLZ dosing pump pump head has in sealing, corrosion resistance, structural stability.

Circuit board: generally, there is no process design problem for circuit board, but there are digital circuit and analog circuit, the main quality performance in the sealing, because the circuit board must not enter water vapor.
