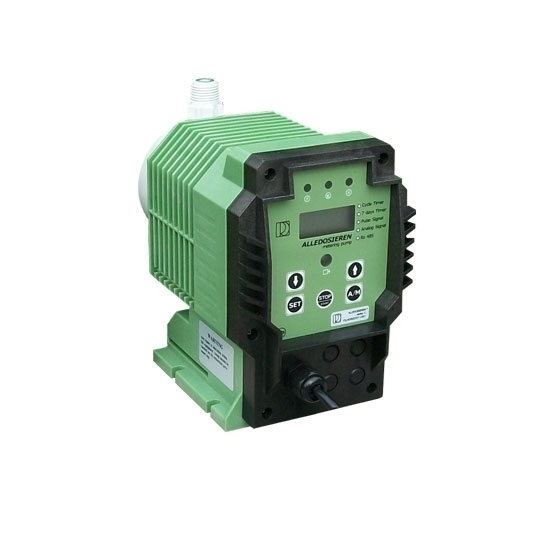

Diaphragm Dosing Pump, 16.8 L/h Flow
from
$998.78
Ex Tax: $998.78
- Stock: In Stock
- Model: RDDLZ-DP-C16005
- Weight: 1.00
- SKU: RDDLZ-DP-C16005
Manufacturer direct sales dosing pump, flow 16.8 L/m, 49 watt, LCD display, power supply 220VAC, standard configuration cycle timer, optional 7-day timer.
16.8 L/h Flow Diaphragm Metering Pump Features
- Green screen digital display, brand new circuit design, more stable operation
- Stroke frequency button adjustment
- Standard configuration cycle timer, optional 7-day timer
- Dosing pump can directly compile external signals without a converter
- New type of one-way valve assembly, PTFE valve seat, acid and alkali resistance, more reasonable structure, stronger sealing
- ACEH/PC shell, strong and durable structure, weather resistance is far better than ABS material
- A variety of pump heads and sealing materials are available, suitable for a wider range of media delivery
- Optional low liquid level stop pump and alarm function
- Added diaphragm damage protection and alarm function
- Optional Rs485 by Modbus-RTU
Diaphragm Dosing Pump Specification:
| Model | RDDLZ-DP-C16005 |
| Power | 49W |
| Flow | 16.8 L/h |
| Pressure | 4.2 Bar |
| Stroke | 160 N/m |
| Wet Suction Range | 2.0m |
| Dosing Pump Hose | 6 x 9mm |
| Interface | DN 15mm |
| Power Supply | 220V |
| Repeated Measurement Accuracy | -5%~5% |
| Allowable Ambient Temperature | 5℃~180℃ (PTFE pump head ), |
| Allowable Medium Viscosity | High viscosity pump head ≤ 1000 mPA.s |
| Particle Diameter | ≤0.15mm |
| Protection Class | IP55 |
| Insulation Class | F |
| Weight | 4.5 kg |
| Warranty Period | 12 Months |

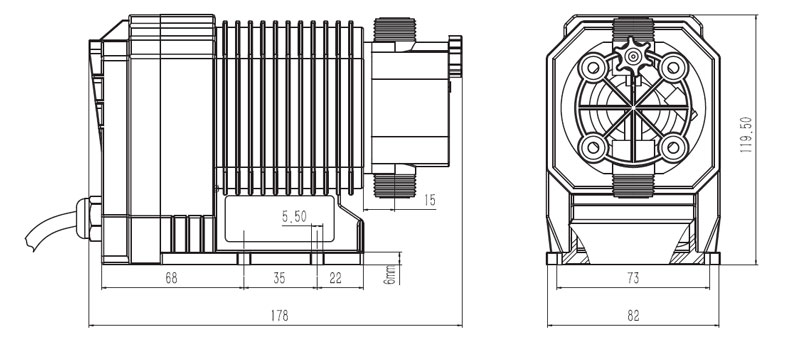

LCD Display Dosing Pump Dimension (unit: mm)
Tips: Electromagnetic diaphragm metering pump features
- Low price
- No dynamic seal, no leakage
- Small size, light weight, convenient operation
- Diaphragm dosing pump is suitable for micro-dosing systems such as laboratories, water treatment, swimming pools, vehicle cleaning, small towers, and reverse osmosis water treatment systems
