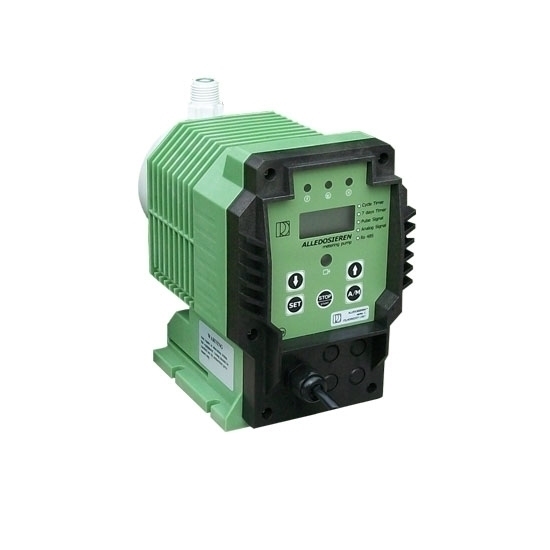

Diaphragm Dosing Pump, 21.6 L/h Flow
from
$998.78
Ex Tax: $998.78
- Stock: In Stock
- Model: RDDLZ-DP-C20003
- Weight: 1.00
- SKU: RDDLZ-DP-C20003
Diaphragm dosing pump is a type of dosing pump, cyclic timing design, flow 21.6 L/h, stroke 160 N/m, strong corrosion resistance, widely used for chemical addition in power plants, steel and petrochemical systems.
21.6 L/h Flow Diaphragm Metering Pump Features
- Green screen digital display, brand new circuit design, more stable operation
- Stroke frequency button adjustment
- Standard configuration cycle timer, optional 7-day timer
- Dosing pump can directly compile external signals without a converter
- New type of one-way valve assembly, PTFE valve seat, acid and alkali resistance, more reasonable structure, stronger sealing
- ACEH/PC shell, strong and durable structure, weather resistance is far better than ABS material
- A variety of pump heads and sealing materials are available, suitable for a wider range of media delivery
- Optional low liquid level stop pump and alarm function
- Added diaphragm damage protection and alarm function
- Optional Rs485 by Modbus-RTU
Diaphragm Dosing Pump Specification:
| Model | RDDLZ-DP-C20003 |
| Power | 49W |
| Flow | 21.6 L/h |
| Pressure | 3.5 Bar |
| Stroke | 160 N/m |
| Wet Suction Range | 2.0m |
| Dosing Pump Hose | 6 x 9mm |
| Interface | DN 15mm |
| Power Supply | 220V |
| Repeated Measurement Accuracy | -5%~5% |
| Allowable Ambient Temperature | 5℃~180℃ (PTFE pump head ), |
| Allowable Medium Viscosity | High viscosity pump head ≤ 1000 mPA.s |
| Particle Diameter | ≤0.15mm |
| Protection Class | IP55 |
| Insulation Class | F |
| Weight | 4.5 kg |
| Warranty Period | 12 Months |
LCD Display Dosing Pump Dimension (unit: mm)
Tips: Diaphragm metering pump applications
- Diaphragm metering pump can be used for sewage treatment in electroplating, circuit boards, and chemical industries
- Additives added in the production process of metal, textile and paper industry
- Used for chemical addition in power plants, steel, petrochemical, and boiler systems
- Diaphragm metering pump can be used for swimming pool water treatment, reverse osmosis system, industrial wastewater treatment, various factories, laboratories, etc.
