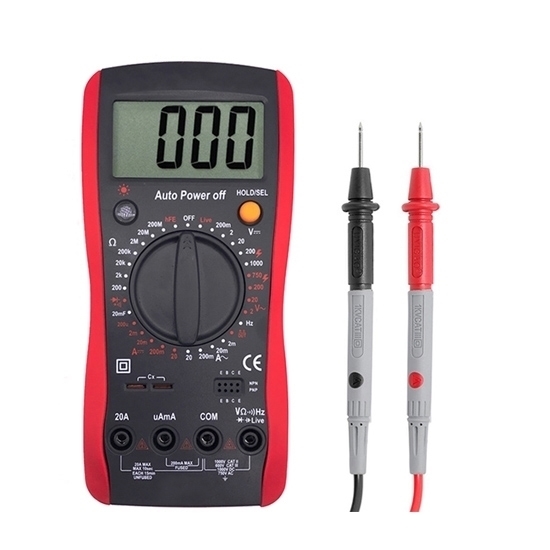

1000V Digital Multimeter, Manual Range, 20 Amp/200 Ohm

0 reviews • Write a review

from

$79.26

Ex Tax: $79.26

Stock: In Stock
Model: RDDLZ-MLT-9205
Weight: 1.00
SKU: RDDLZ-MLT-9205

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy the best multimeter from RDDLZ.com to help you measure voltage/current/resistance/capacitance. It comes with manual range, 1999 max display, diode/triode testing, data hold, low battery indication, overload protection and other functions. 1000V digital multimeter is widely used in electronics, electrical engineering, and electrical repair and other fields.

Specifications

Model	RDDLZ-MLT-9205N
Maximum Display Value	1999
Operation Mode	Manual Range
Sample Frequency	60Hz
Battery Type	9V 6F22 Battery (Not included)
Weight	About 450g
DC voltage	200mV/2V/20V/200V/1000V
AC voltage	200mV/2V/20V/200V/750V
DC current	2mA/20mA/200mA/20A
AC current	2mA/20mA/200mA/20A
Resistance	200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ/200MΩ
Capacitance	2nF/20nF/200nF/2μF/200μF

Functions

Diode Test	√	Function Protection	√
Triode Testing	√	Anti-Vibration Protection	√
Continuity Buzzer	√	Low Battery Display	√
Data Hold Auto Power Off	√	Input Impedance For DCV	10MΩ

Dimension (Unit: mm)

Details

Applications

Tips: Advantages of Digital Multimeter

Digital multimeters (DMMs) offer several advantages over analog multimeters, including:

Accuracy: Digital multimeters typically offer higher accuracy than analog multimeters due to the use of digital circuitry and display.
Consistency: DMMs provide consistent and repeatable readings, which is important when making precise measurements.
Easy to read: Digital multimeters have a clear and easy-to-read display, making it easier to determine the measurement value.
Versatility: Digital multimeters can measure a wide range of electrical quantities, including voltage, current, resistance, and continuity, making them more versatile than analog multimeters.
Safety: Digital multimeters are generally safer to use than analog multimeters because they use low-voltage circuitry and do not contain high voltage components.
Durability: Digital multimeters are less susceptible to damage from rough handling or harsh environments than analog multimeters.
Convenience: Digital multimeters are compact and portable, making them easy to carry and use in a variety of locations.
User-friendly: Digital multimeters are user-friendly and typically come with clear instructions, making them easy to use, even for people with limited electrical knowledge.
