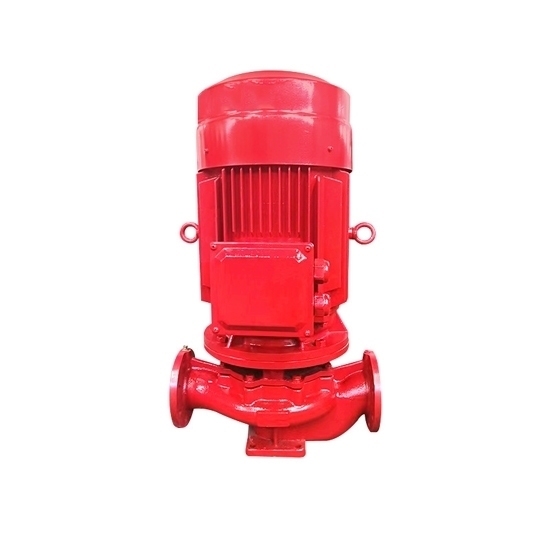

7.5 HP (5.5 KW) Fire Pump, Single Stage

7.5 HP (5.5 KW) Fire Pump, Single Stage
New
7.5 HP (5.5 KW) Fire Pump, Single Stage
0 reviews • Write a review
from
$3,141.51
Ex Tax: $3,141.51
  • Stock: In Stock
  • Model: RDDLZ-FP-075HP
  • Weight: 1.00
  • SKU: RDDLZ-FP-075HP

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The fire pump is compact and small in size. Its vertical structure determines the installation area is small. 7.5 hp fire pump consists of motor and pump two parts. It designed to deliver water at high pressure to combat fires.

Features:

  • Fire pump is compact in structure and small in size.
  • Pump inlet and outlet are horizontal direction, simplifying the connection of the pipeline.
  • Pump rotor has small winding, stable operation, small vibration, long service life.

Specification:

  • Model: RDDLZ-XBD5.0/3G-50-200
  • Power: 7.5 hp (5.5 kW)
  • Number of Stage: single stage
  • Voltage: 380V (other voltage, please contact us)
  • Caliber: 50 mm
  • Flow Rate: 8.8m³/h
  • Head of Pump: 52m
  • Rotating Speed: 2900 r/min
  • Net Weight: 101kg

Structure:

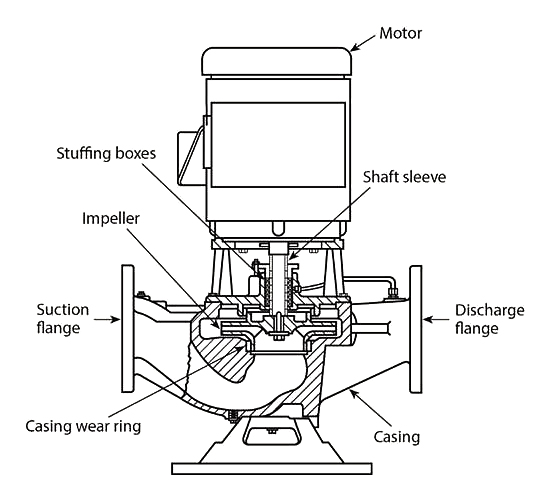

Fire pump structure

Tips: How to Maintain Fire Pump?

  • Schedule regular inspections and maintenance checks to ensure the fire pump is in good working condition.
  • Keep the fire pump room clean and free of debris.
  • Make sure the fire pump's electrical components are properly grounded and maintained.
  • Regularly test the fire pump to ensure it is operating correctly.
  • Check the pump's alignment, bearings, and impeller regularly.
  • Keep a record of maintenance and repairs for future reference.
  • Ensure that the fire pump is free of leaks, rust, and corrosion.
  • Have a backup fire pump system in place in case the primary pump fails.
