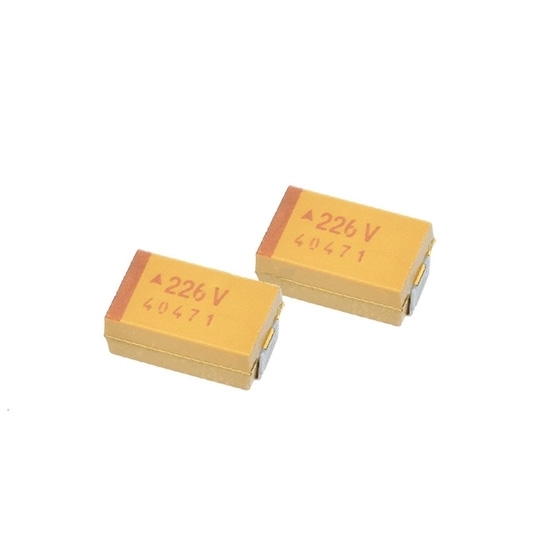

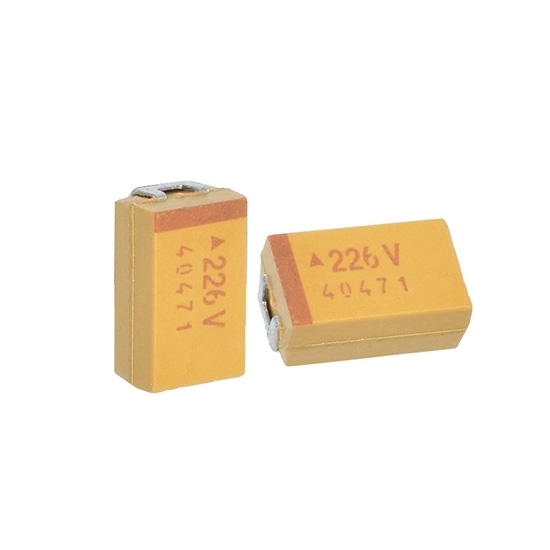

22μF 35V SMD Tantalum Capacitor

0 reviews • Write a review

from

$2.81

Ex Tax: $2.81

Stock: In Stock
Model: RDDLZ-TC-22UF35SMD
Weight: 1.00
SKU: RDDLZ-TC-22UF35SMD

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The tolerance of SMD tantalum capacitor is small, about 10%. 22μF tantalum capacitor is mainly used for filtering and energy storage..

Features:

Small volume and small capacity error
Wide temperature range, high temperature resistance
Long life, high insulation resistance, small leakage current
Equivalent series resistance (ESR) has good high frequency performance

Specification:

Capacitance: 22μF
Rated Voltage: 35V
Type: D-SMD
Net Size: 1 mm
Height Mounting (Maximum): 1 mm
Equivalent Series Resistance: 1
Tolerance: 10%
Leading Spacing: Leadless
Working Temperature: -85 ℃— +125 ℃

SMD Tantalum Capacitor Dimension: (Unit: mm)

L= 7.3, S= 1.3, W₁= 4.3, W₂= 2.4, H= 2.8

Tips: Factors that Increase the ESR Value

Bad electrical connections. The connection between the copper leads and the aluminum plates in the capacitor are usually welded or made using mechanical crimps. This type of connections introduces some series resistance, and is used because the aluminum cannot be soldered.
The drying of capacitor electrolyte solution. As the liquid component of the electrolyte dries out due to elevated temperatures, the electrical resistance increases.
ESR increases with increase in temperature and frequency. In power supplies with high currents, the power dissipation associated with the ESR may further increase the temperature and lead to capacitor failure.
