1 GHz Digital Oscilloscope Features

• 1 GHz bandwidth, 2 or 4 channel model selectable
• Up to 5GSa/s sample rate and 180,000 wfms/s per sencond waveform capture rate
• Standard 140 Mpts deep memory
• Up to 200,000 frames for waveform record and replay
• 10.1 inch WVGA (800X480) display
• Various trigger functions, including multiple protocol triggers
• Also capable of identifying the probe type automatically
• Standard parallel decoding, multiple serial decoding options available

Models and Key Specifications

RIGOl DS6000 Series Digital Oscilloscope Specs PDF

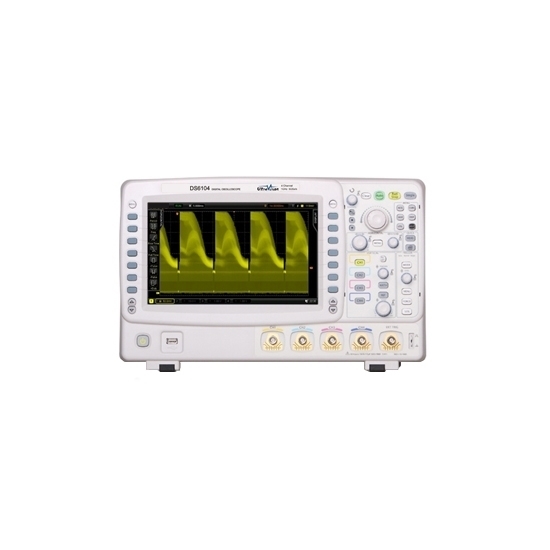

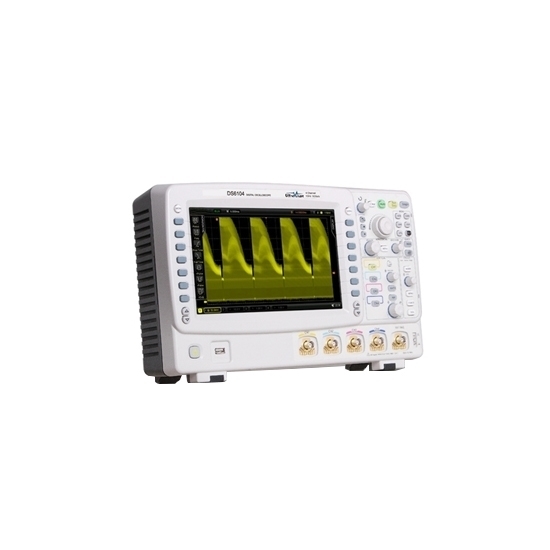

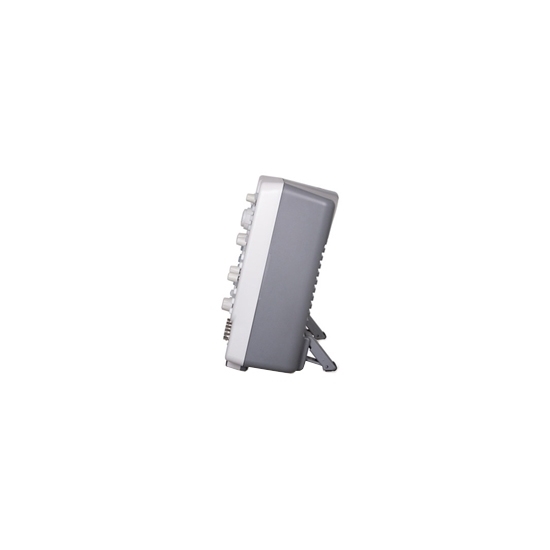

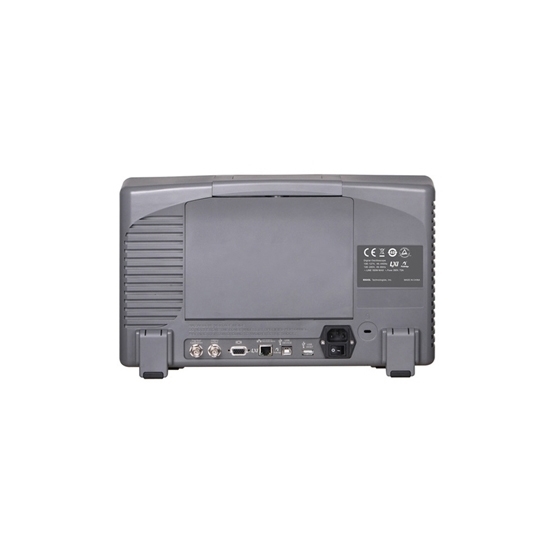

Digital Oscilloscope Detail

Tips: What is an Oscilloscope?
An oscilloscope is a widely used electronic measuring instrument. It can transform invisible electrical signals into visible images, enabling people to study the changing processes of electrical phenomena. The oscilloscope uses a narrow electron beam consisting of high-speed electrons to create a tiny spot on a screen coated with a fluorescent material. Under the action of the measured signal, the electron beam is like the tip of a pen, which can draw the curve of the instantaneous value of the measured signal on the screen. Use the oscilloscope to observe waveforms of various signal amplitudes over time. You can also use it to test various power levels, such as voltage, current, frequency, phase difference, amplitude, and so on.
