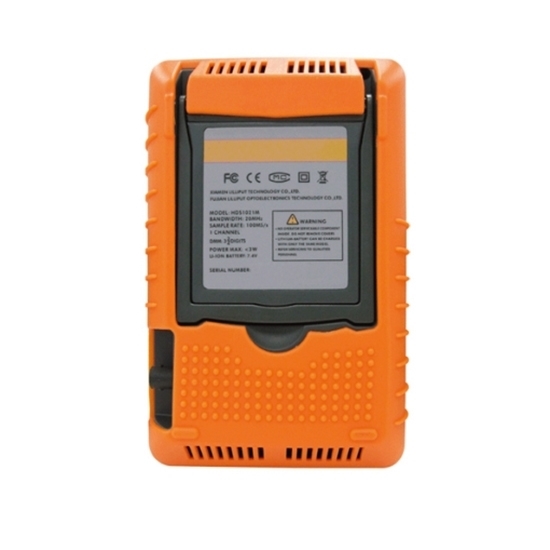

100 MHz Handheld Oscilloscope, 1 GSa/s, Single Channel

0 reviews • Write a review

from

$649.37

Ex Tax: $649.37

Stock: In Stock
Model: RDDLZ-HO-100S
Weight: 1.00
SKU: RDDLZ-HO-100S

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

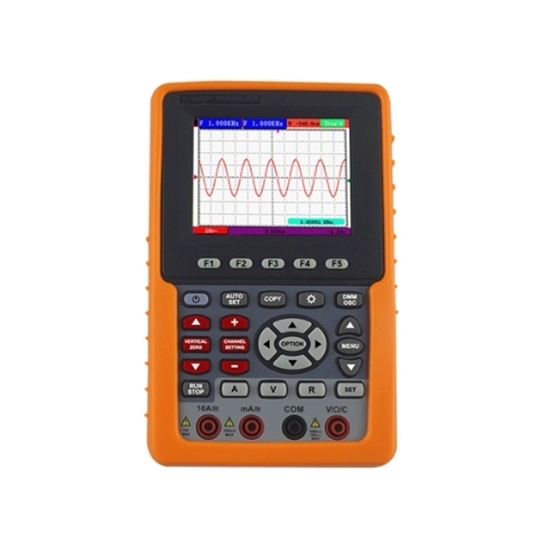

This compact portable oscilloscope is a high-quality single-channel, 100 MHz bandwidth digital oscilloscope which ensures a more rapid capturing of instantaneous or abnormal signals for accelerating signal analysis and fault tracing. The high-quality 100 MHz oscilloscope is a portable tool for waveform measurement, features an auto-scale function, USB data transmission, and waveform record and replay.

Specification

Performance Characteristics

Model	RDDLZ-HDS3101M-N
Bandwidth	100 MHz
Channel	Single channel
Sample rate	1 GSa/s
Horizontal Scale (s/div)	5ns/div～100s/div, step by 1～2.5～5
Record length	24K points
Display	3.7" color TFT display (640 * 480 pixels)
Waveform refresh rate	10000 wfrms/s
Input coupling	DC, AC, Ground
Input impedance	1 MΩ±2%, in parallel with 18 pF±5 pF
Probe attenuation	1X,10X,100X,1000X
Max. input voltage	400V (PK - PK) (DC + AC, PK - PK, 1MΩ input impedance, probe attenuation 10 : 1), CAT II
Bandwidth limit(typical)	20MHz / Full bandwidth
Sampling rate range	5ns/div ~ 500s/div, step by 1 – 2 - 5
DC Accuracy (average)	average >16: ±(5% reading + 0.05div) for △V
Vertical Sensitivity	5mV/div～5V/div (at input)
Rise time (at input, Typical)	≤ 17.5ns
Trigger type	Edge and Video
Trigger model	Auto, Normal, Single
Trigger level range	±6 div from the screen center
Automatic measurement	Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Delay A→B , Delay A→B
Cursor measurement	ΔV, ΔT, ΔT&ΔV between cursors,auto cursor
Communication interface	USB Type-C
Acquisition Mode	Sample, Peak Detect, and Average
Interpolation	sin (x) / x
Vertical Resolution (A/D)	8 bits
Waveform Storage	4 waveforms
Communication Interface	Mini-USB，mini-RS232
Power Supply	100V-240V AC, 50/60Hz

Digital Multimeter Specification

Full-Scale Reading	3 3/4 digits (max 4000-count)
Diode	0V-1.5V
Input Impedance	10 MΩ
On/ Off Test	< 50 (± 30) beeping
Voltage	VDC: 400mV, 4V, 40V, 400V, 1000V : ±(1% ± 1 digit); max input: DC 1000V
	VAC: 4V, 40V, 400V: ±(1% ± 3 digits), 750V: ±(2% ± 3 digits); Frequency: 40Hz - 400Hz;
	Max input: AC 750V (virtual value)
Current	DC: 40mA, 400mA : ±(1.5% ± 1 digit), 10A: ±(3% ± 3 digits)
Current	AC: 40mA: ±(1.5% ± 3 digits), 400mA: ±(2% ± 1 digit), 10A : ±(5% ± 3 digits)
Impedance	400Ω: ±(1% ± 3 digits), 40ΚΩ - 4ΜΩ: ±(1% ± 1 digit), 40MΩ: ±(1.5% ± 3 digits)
Capacitance	51.2nF - 100uF: ±(3% ± 3 digits)

Accessories

Power cord
CD rom
USB cable
Probe
Probe Adjust
Multimeter lead
Adapter
User manual
5V, 1KHz Output
Capacitance Ext Module
Soft Bag
Metal Case (optional)

Dimension (mm)

Details

Tips: How to use a handheld oscilloscope?

Select and set the probe: First, according to the need to choose a suitable probe, for most of the measured signal, you buy the instrument that comes with a simple passive probe that can be used. Next, set the attenuation of the probe, which is generally used is 10X, it is the best choice for many occasions, if you want to measure the amplitude of the smaller signal, you can set it in the 1X file.
Connect the probe, and open the oscilloscope: Connect the probe to the first channel of the oscilloscope, and turn on the oscilloscope switch to start running, you can see the oscilloscope screen with squares, scales, and a waveform consisting of a horizontal line with faint noise fluctuations.
Calibrating the probe: Oscilloscopes generally provide an internally generated, highly reliable, fixed frequency and amplitude square wave test signal for calibration on the lower right side of the panel, with two separate connections - one to output the calibration signal and one to connect to system ground. Connect the probe's ground clamp to the ground side of this test signal and the oscilloscope's probe to the test signal's output.
