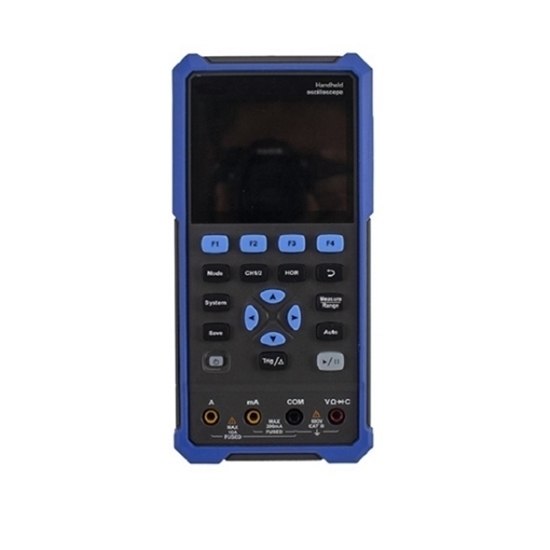

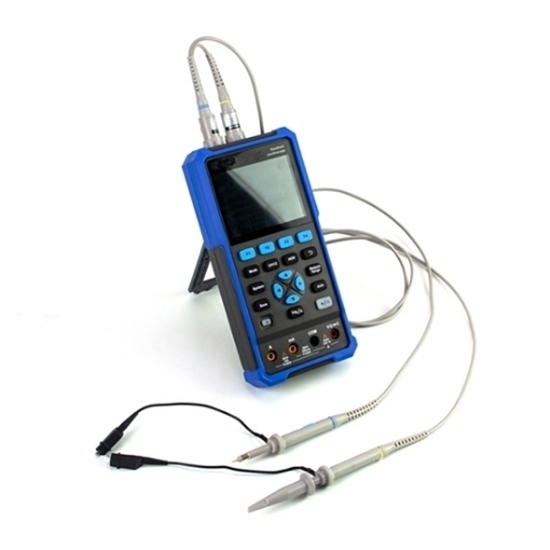

40 MHz Handheld Oscilloscope, 250 MSa/s, 2 Channels

0 reviews • Write a review

from

$268.42

Ex Tax: $268.42

Stock: In Stock
Model: RDDLZ-HO-40
Weight: 1.00
SKU: RDDLZ-HO-40

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

40 MHz portable digital storage oscilloscope is a high-accuracy digital oscilloscope with 250 MSa/s sample rate, 2 channels and max. waveform capture rate up to 10,000 wfms/s. The handheld oscilloscope is suited for workplaces such as families, schools, and factories.

Specification

Performance Characteristics

Model	RDDLZ-HDS242
Bandwidth	40MHz
Channel	2 channel
Sample rate	250 MSa/s
Acquisition model	Sample, Peak detect
Record length	6K
Display	3.5 inch LCD
Waveform refresh rate	10000 wfrms/s
Input coupling	DC, AC, Ground
Input impedance	1 MΩ±2%, in parallel with 16 pF±10 pF
Probe attenuation	1X,10X,100X,1000X
Max. input voltage	400V (DC+AC, PK - PK)
Bandwidth limit(typical)	20MHz / Full bandwidth
Sampling rate range	2ns/div - 1000s/div, step by 1- 2- 5
Sensitivity Resolution	10mV/div~10V/div
Low Frequency（-3db）	≥10 Hz (at input, AC coupling)
Rise time (at input, Typical)	≤8ns
Trigger type	Edge
Trigger model	Auto, Normal, single
Trigger level range	±4 div from the screen center
Automatic measurement	Period, Frequency, Mean, PK-PK, Max, Min
Cursor measurement	ΔV, ΔT, ΔT&ΔV between cursors,auto cursor
Communication interface	USB Type-C

Digital Multimeter Specification

Full-scale reading	4.5 digitals (max 20000 count)
Testing Modes	Voltage, Current, Resistance, Capacitance, Diode, Continuity
Maximum Input Voltage	AC 750V, DC 1000V
Maximum Input Current	DC: 10A, AC: 10A
Diodes Test	0-2V

Accessories

Quick Guide
USB Cable
Probe
Probe Adjust
Multimeter
Lead
BNC plug to alligator clips cable
Soft Bag

Dimension (mm)

Details

Tips: What are the advantages of a handheld oscilloscope?

A portable oscilloscope is a very versatile electronic measuring instrument. It can convert invisible electrical signals into visible images, which is convenient for people to study the changing process of various electrical phenomena. The oscilloscope uses a narrow electron beam composed of high-speed electrons to hit a screen coated with a fluorescent material to produce a small spot of light (this is the working principle of a traditional analog oscilloscope). Under the action of the signal under test, the electron beam is like the tip of a pen, which can draw the change curve of the instantaneous value of the signal under test on the screen. The oscilloscope can be used to observe the waveform curves of various signal amplitudes changing with time, and it can also be used to test various electric quantities, such as voltage, current, frequency, phase difference, amplitude modulation, etc.

The portable oscilloscope is used to display the change of the track of the measured instantaneous value and has the characteristics of easy portability and simple operation. It can convert invisible electrical signals into visible images, which is convenient for people to study the changing process of various electrical phenomena. The oscilloscope has the performance and features of a larger oscilloscope at a portable, affordable price.
