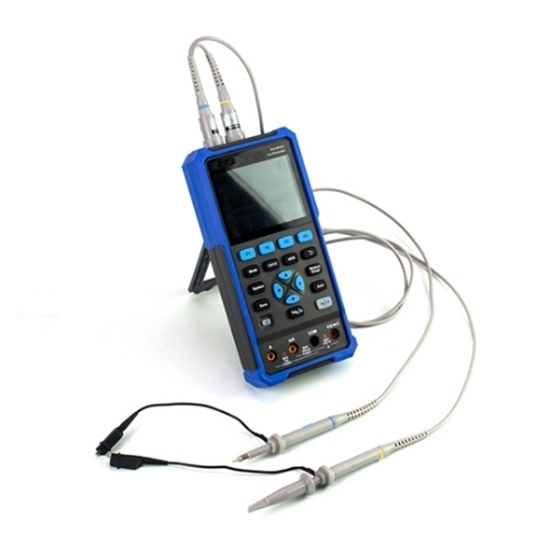

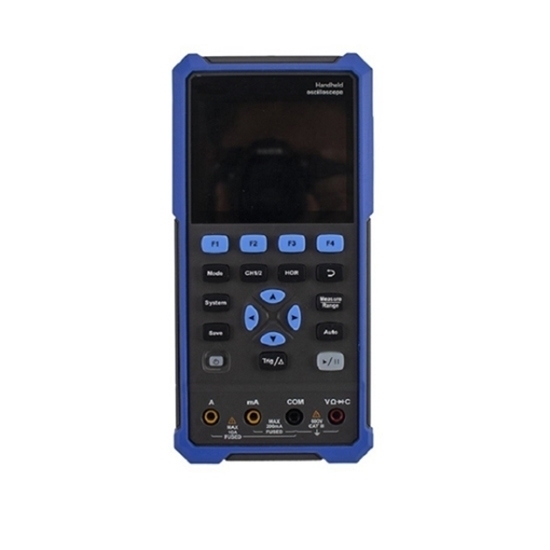

200 MHz Handheld Oscilloscope, 1 GSa/s, 2 Channels

0 reviews • Write a review

from

$592.22

Ex Tax: $592.22

Stock: In Stock
Model: RDDLZ-HO-200
Weight: 1.00
SKU: RDDLZ-HO-200

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

200 MHz dual channel handheld digital oscilloscope with1 GSa/s sample rate, max. waveform capture rate up to 10,000 wfms/s. Digital handheld oscilloscope has two acquisition modes, high refresh, deep storage, 7 kinds of auto measurement, cursor measurement function and save function.

Specification

Performance Characteristics

Model	RDDLZ-HDS2202
Bandwidth	200MHz
Channel	2 channel
Sample rate	1 GSa/s
Acquisition model	Sample, Peak detect
Record length	6K
Display	3.5 inch LCD
Waveform refresh rate	10000 wfrms/s
Input coupling	DC, AC, Ground
Input impedance	1 MΩ±2%, in parallel with 16 pF±10 pF
Probe attenuation	1X,10X,100X,1000X
Max. input voltage	400V (DC+AC, PK - PK)
Bandwidth limit(typical)	20MHz / Full bandwidth
Sampling rate range	2ns/div - 1000s/div, step by 1- 2- 5
Sensitivity Resolution	10mV/div~10V/div
Low Frequency（-3db）	≥10 Hz (at input, AC coupling)
Rise time (at input, Typical)	≤8ns
Trigger type	Edge
Trigger model	Auto, Normal, single
Trigger level range	±4 div from the screen center
Automatic measurement	Period, Frequency, Mean, PK-PK, Max, Min
Cursor measurement	ΔV, ΔT, ΔT&ΔV between cursors,auto cursor
Communication interface	USB Type-C

Digital Multimeter Specification

Full-scale reading	4.5 digitals (max 20000 count)
Testing Modes	Voltage, Current, Resistance, Capacitance, Diode, Continuity
Maximum Input Voltage	AC 750V, DC 1000V
Maximum Input Current	DC: 10A, AC: 10A
Diodes Test	0-2V

Accessories

Quick Guide
USB Cable
Probe
Probe Adjust
Multimeter
Lead
BNC plug to alligator clips cable
Soft Bag

Dimension (mm)

Details

Tips: What are the functions of a handheld oscilloscope?

The handheld oscilloscope is a digital storage oscilloscope, digital multimeter and recorder functions in one test measurement instrument, its battery-powered form, the handheld oscilloscope is a practical new instrument in the field of electronic measurement.
The traditional handheld oscilloscope is required to observe the two electrical signals added to the oscilloscope X, Y to control the offset of the electronic instrument to carry out, thus also obtaining the fluorescent screen on the relationship between the two electrical signals on the displayed waveform. Obviously, the size of this analog handheld oscilloscope is very large, so it also brings some trouble to the staff in operation.
Nowadays, the handheld oscilloscope has become very popular, its small size, and simple and convenient operation can bring convenience to many users. Therefore, the digital oscilloscope (handheld) that we use today is very common and recognized by people. We also believe that in the future, there will be more good products out to serve people.
