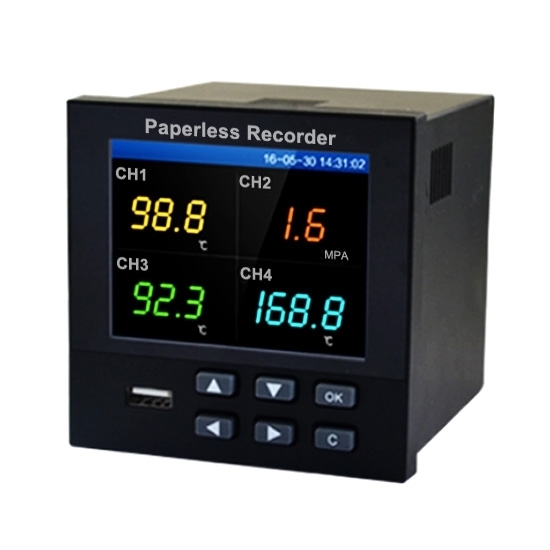

Paperless Recorder 1/4/8/12/18 Channel Output RS485

0 reviews • Write a review

from

$556.24

Ex Tax: $556.24

Stock: In Stock
Model: RDDLZ-PLR-CH18
Weight: 1.00
SKU: RDDLZ-PLR-CH18

Available Options

Short Description

Power Supply

Number of Channels

Communication Output

Relay Alarm Output

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

3.5 inches paperless recorder with optional 18 input channels can achieve temperature/ pressure/ current/ voltage online monitoring and U disk data download.

Specification:

Model	RDDLZ-PLR-R9600
Shipping weight	1kg
Dimension (WHL)	9696101mm with hole size 92*92mm
Display	3.5 inches TFT true color LCD display, 320*240 resolution
Power supply *	1. AC power: AC 176~264V, 47~63Hz 2. DC power: DC 24V
Power dissipation	≤20W
External power supply	24VDC, 150mA (for external device)
Internal storage	48M bytes flash Note: All the data is stored in flash memory to make sure that all historical data and configuration parameters are not lost due to power failure. The real-time clock powered by a lithium battery after power failure.
External storage	U disk support (standard USB2.0 communication interface)
Number of Channel *	1, 2, 3, 4, 6, 8, 12, 16, 18
Input signal	1. Standard signal: 0-20mA, 4-20mA, 0-5V, 0-10V, 1-5V 2. mV signal: 0-20mV, -20~20mV, 0-100mV 3. Thermocouple signal: S, B, K, T, E, J, R, N type 4. RTD signal: Pt100, Cu50
Alarm output *	Up to 4 alarm outputs, relay parameter: NO, 2A / 250VAC
Communication output *	RS485
Communication protocol	Modbus communication protocol
Sampling period	1s
Recording interval	1s~60min (by parameter setting)
Functions	Different data display forms: Front Panel, Digital Display, Bar Graph, Real-time Curve, Power Off Safeguard, Alarm, History
Operating temperature	0~50℃ (32~122℉)
Relative humidity	10~85%RH (No condensation)
Storage temperature and humidity	Temperature: -20~+60℃ (-4~+140℉), Humidity: 5~95%RH (No condensation)
Warranty	3 years

Tips: Difference between paperless recorder and paper recorder

Size
Paperless recorder: Small size, lightweight, can be installed densely.
Paper recorder: Large and heavy, taking up a lot of space.
Usage
Paperless recorder: 0~50℃ working temperature, no consumables, optional printing function.
Paper recorder: Room temperature working condition, special paper is required for printing records.
Performance
Paperless recorder: Intelligent, diversified input signals, the sampling interval can be customized, can be connected to the upper computer for monitoring through RS485/232 communication output, or use the USB interface to store data to an external computer and select other software to analyze and print.
Paper recorder: Large external dependence, fixed input signal, fixed sampling interval, no communication and no data download functions.
