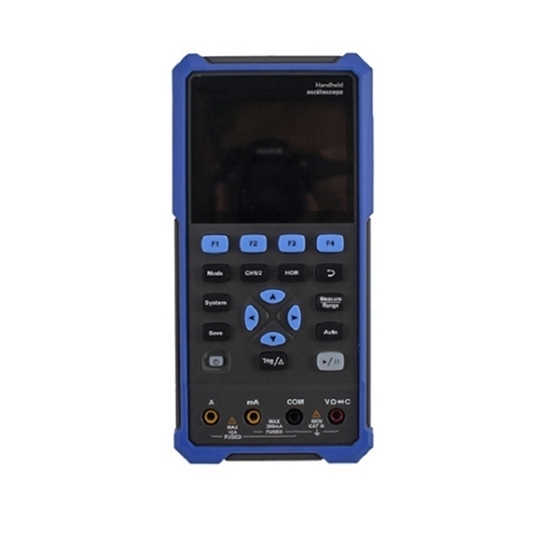

100 MHz Handheld Oscilloscope, 500 MSa/s, 2 Channels

0 reviews • Write a review

from

$401.75

Ex Tax: $401.75

Stock: In Stock
Model: RDDLZ-HO-100
Weight: 1.00
SKU: RDDLZ-HO-100

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

A cost-effective digital oscilloscope with 100 MHz bandwidth, 500 MSa/s sample rate, 2 channels. The digital oscilloscope built-in multimeter which is very convenient for the job and the oscilloscope is much lighter, easier, and perfect for field use. Practical and intuitive menu page layout, the 100 MHz oscilloscope is intuitive and handy in its use

Specification

Performance Characteristics

Model	RDDLZ-HDS2102
Bandwidth	100MHz
Channel	2 channel
Sample rate	500MSa/s
Acquisition model	Sample, Peak detect
Record length	6K
Display	3.5 inch LCD
Waveform refresh rate	10000 wfrms/s
Input coupling	DC, AC, Ground
Input impedance	1 MΩ±2%, in parallel with 16 pF±10 pF
Probe attenuation	1X,10X,100X,1000X
Max. input voltage	400V (DC+AC, PK - PK)
Bandwidth limit(typical)	20MHz / Full bandwidth
Sampling rate range	2ns/div - 1000s/div, step by 1- 2- 5
Sensitivity Resolution	10mV/div~10V/div
Low Frequency（-3db）	≥10 Hz (at input, AC coupling)
Rise time (at input, Typical)	≤8ns
Trigger type	Edge
Trigger model	Auto, Normal, single
Trigger level range	±4 div from the screen center
Automatic measurement	Period, Frequency, Mean, PK-PK, Max, Min
Cursor measurement	ΔV, ΔT, ΔT&ΔV between cursors,auto cursor
Communication interface	USB Type-C

Digital Multimeter Specification

Full-scale reading	4.5 digitals (max 20000 count)
Testing Modes	Voltage, Current, Resistance, Capacitance, Diode, Continuity
Maximum Input Voltage	AC 750V, DC 1000V
Maximum Input Current	DC: 10A, AC: 10A
Diodes Test	0-2V

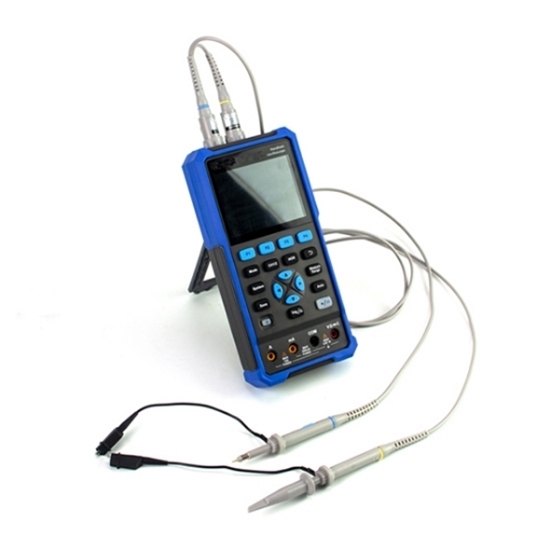

Accessories

Quick Guide
USB Cable
Probe
Probe Adjust
Multimeter
Lead
BNC plug to alligator clips cable
Soft Bag

Dimension (mm)

Details

Tips: What is a handheld oscilloscope?

A handheld oscilloscope is a handheld electronic measuring instrument used to display the instantaneous value of the measured trajectory changes, with convenient portability, easy operation, and other characteristics. It can transform invisible electrical signals into visible images, which is convenient for people to study the change process of various electrical phenomena. It uses a narrow, high-speed electron beam composed of electrons, hitting the screen surface coated with fluorescent substances, it can produce a fine point of light. Under the action of the measured signal, the electron beam is like a pen's tip, and the measured signal's instantaneous value can be depicted on the screen surface of the change curve. Using the oscilloscope can observe a variety of different signal amplitude changes with a time waveform curve, but also can use it to test a variety of different power, such as voltage, current, frequency, phase difference, amplitude modulation, and so on.
