200A DC Contactor, Single Pole, 12V/24V/48V

0 reviews • Write a review

from

$121.65

Ex Tax: $121.65

Stock: In Stock
Model: RDDLZ-DCCON-C200
Weight: 1.00
SKU: RDDLZ-DCCON-C200

Available Options

Short Description

Coil Rated Voltage

With Auxiliary Contact

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

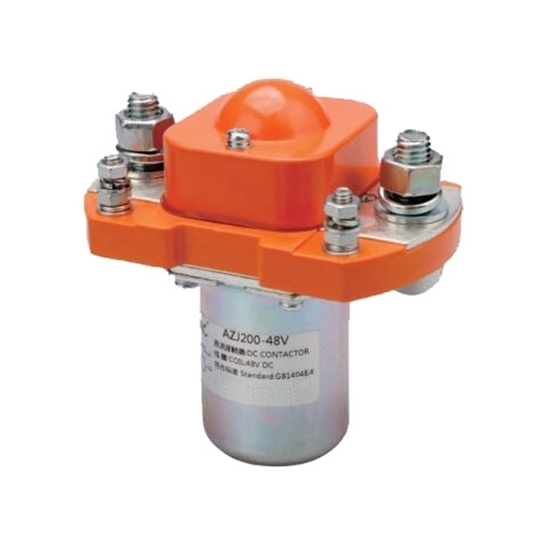

The 200A DC contactor has one normally open contact, single pole, and has been designed for direct current loads, particularly for electric vehicles, telecommunication equipment, car batteries, trains, ships, electronic control systems.

Features

200 amps rated load current of contact circuit.
12V, 24V, and 48V DC coil-rated voltage for selection.
Continuous operation duty.
Easy and quick installation, available anyway to install.
Mechanical life up to 300 thousand times.

Specifications

Basics	Model	RDDLZ-AZJ200
	Body Size	855785 mm
	Weight	450 g
Technical Parameters	Coil Rated Voltage	12V/24V/48V
	Rated Load Voltage	12~72V DC
	Contact Circuit Rated Load Current	200 A
	Contact Form	1 NO
	Overload Current	≤7 le
	Coil Power	≤9.5 W
	Main contact voltage drop at 100A	≤100 mV
	The Allowed Range of Coil Voltage	±20%
	Pull-In Time (N/O Contacts to Open)	≤30 ms
	Drop-Out Time (N/O Contact to Close)	≤20 ms
	Insulation Resistance	≥50 MΩ
	Work Duty	Continuous
	Dielectric Withstanding Voltage	50Hz/60Hz 1500VAC/Min
	Auxiliary Contact Rated Load (Option)	2A/48VDC, 5A/24VDC
	Electric Life	Continuous 20000 times
	Mechanical Life	300 thousand times
Environment	Operating Temperature	-25℃~55℃
	Operating Humidity	5~95% RH
	International Protection	IP 50

DC Contactor Circuit Diagram

Installation Diagram (Unit: mm)

Tips: DC contactor's coil adopts a series duplex winding

In order to reduce the power consumption of the coils and extend the service life, a large capacity DC contactor coil usually adopts a series duplex winding. A break contact of the contactor is parallel to the holding coil. When the coil powers on, the holding coil is shorted by the break contact, which makes the starting coil to obtain a large current and suction force. After the contactor acts, the starting coil and holding coil keep powering on in a series connection. Due to the constant voltage, the current is small, but the armature can still be kept in, thus saving the power.
