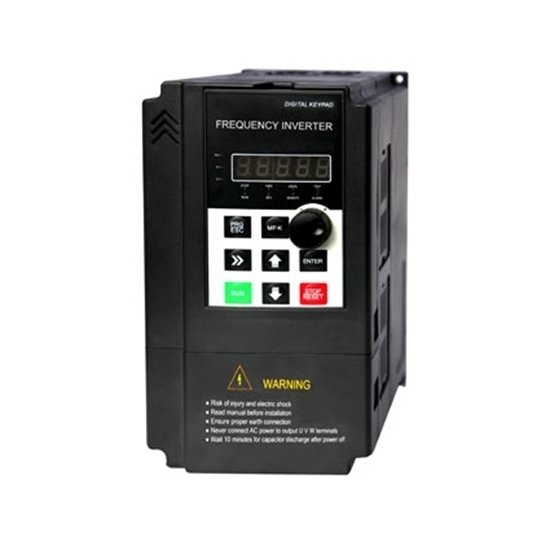

3 Hp VFD, Single Phase 120V Input, 1ph/3ph 220V Output

0 reviews • Write a review

from

$346.10

Ex Tax: $346.10

Stock: In Stock
Model: GK3000-SP1S1-2d2
Weight: 1.00
SKU: GK3000-SP1S1-2d2

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

3 hp (2.2 kW) VFD, single phase input & output, single phase to three phase, 110v-120v input, 220v-240v output.

Specification:

Basics	Model	EM15-SP1S1-2d2
	Capacity	3 hp (2.2 kW)
	Shipping weight	3 kg
	Dimension (W x H x D)	120205166 mm
I/O Feature	Rated current	10 A
	Input voltage	1 phase 120V AC ±15% (Set FE-00=0)
	Input frequency	50Hz/60Hz
	Output voltage	1 phase or 3 phase 220V AC ±15%
	Output frequency	0~320Hz (SFC)
Control Feature	Control mode	V/F control; vector control
	Communication	Offer RS485 communication interface, support MODBUS-RTU communication protocol
	Speed regulation	1:100
	Start torque	150% of rating torque at 1 Hz
	Speed control accuracy	≤±0.5% of rating synchronous speed
	Frequency precision	Digital setting: max frequency x± 0.01%;
	Frequency precision	Analog setting: max frequency x± 0.2%
	Frequency resolution	Analog setting: 0.1% of max frequency;
	Frequency resolution	Digital setting: 0.01Hz
	Torque boost	Automatic torque boost, manual torque boost 0.1%~30.0%
	Interior PID controller	Be convenient to make closed-loop system
	Automatic energy save running	Optimize V/F curve automatically based on the load to realize power save running
	Automatic voltage regulation (AVR)	Can keep constant output voltage when power source voltage varies.
	Automatic current limiting	Limit running current automatically to avoid frequent over-current which will cause trip
Environment	Enclosure rating	IP 20
	Temperature	–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
	Humidity	smaller than 95%RH, non-condensation
	Altitude	≤1000m; VFD will be derated if above 1000m
	Vibration	Less than 5.9 m/s2 (0.6 g)
	Cooling	forced air cooling
	Store environment	–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight

Note: RDDLZ VFD Cannot be used as a power source, it Can only be directly connected to an induction motor to control the motor speed.

Tips: Running a 3-phase motor from single phase supply

If you want to connect a 3-phase motor to a single phase power supply, then you have several solutions:

Professional: use a VFD with single phase input and convert to 3-phase output, this is generally available for low power VFD (few horsepower).
Professional: apply a specially wound transformer that also mimic a 3-phase system from a single phase power supply. Expect difficulties to source and high price.
DIY: calculate a capacitor that will be connected between the remaining phases, such to apply it a phase shift and to mimic a 3-phase system.
