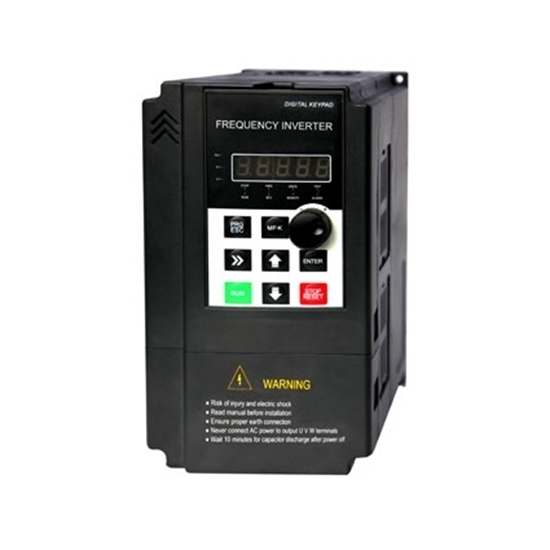

1 Hp VFD, Single Phase 120V Input, 1ph/3ph 220V Output

0 reviews • Write a review

from

$284.61

Ex Tax: $284.61

Stock: In Stock
Model: GK3000-SP1S1-d75
Weight: 1.00
SKU: GK3000-SP1S1-d75

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

1 hp VFD, 0.75 kW, single phase 110v/120v input to single phase 220v-240v output, single phase 110v/120v to three phase, manufacturer direct sale.

Specification:

Basics	Model	EM15-SP1S1-d75
	Capacity	1 hp (0.75 kW)
	Shipping weight	3 kg
	Dimension (W x H x D)	120205166 mm
I/O Feature	Rated current	4 A
	Input voltage	1 phase 120V AC ±15% (Set FE-00=0)
	Input frequency	50Hz/60Hz
	Output voltage	1 phase or 3 phase 220V AC ±15%
	Output frequency	0~320Hz (SFC)
Control Feature	Control mode	V/F control; vector control
	Communication	Offer RS485 communication interface, support MODBUS-RTU communication protocol
	Speed regulation	1:100
	Start torque	150% of rating torque at 1 Hz
	Speed control accuracy	≤±0.5% of rating synchronous speed
	Frequency precision	Digital setting: max frequency x± 0.01%;
	Frequency precision	Analog setting: max frequency x± 0.2%
	Frequency resolution	Analog setting: 0.1% of max frequency;
	Frequency resolution	Digital setting: 0.01Hz
	Torque boost	Automatic torque boost, manual torque boost 0.1%~30.0%
	Interior PID controller	Be convenient to make closed-loop system
	Automatic energy save running	Optimize V/F curve automatically based on the load to realize power save running
	Automatic voltage regulation (AVR)	Can keep constant output voltage when power source voltage varies.
	Automatic current limiting	Limit running current automatically to avoid frequent over-current which will cause trip
Environment	Enclosure rating	IP 20
	Temperature	–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
	Humidity	smaller than 95%RH, non-condensation
	Altitude	≤1000m; VFD will be derated if above 1000m
	Vibration	Less than 5.9 m/s2 (0.6 g)
	Cooling	forced air cooling
	Store environment	–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight

Note: RDDLZ VFD Cannot be used as a power source, it Can only be directly connected to an induction motor to control the motor speed.

Tips: Choose a VFD base on motor rated current

When a motor power is stated, it is always the mechanical power, shaft power i.e. NOT the input electrical power.
Variable frequency drives (VFD) are also (mostly) rated in terms of kW albeit it's wrong. Because VFD output is electrical (not mechanical). Mechanical power (i.e. motor shaft power) is always "active" power, where in electricity we also have reactive (doing nothing but losses) power. The apparent (total) power (stated in terms of kVA) is vectorial sum of active and reactive power components.
For all those facts above, RDDLZ highly recommend to select a VFD by matching motor current. This is the right way. Despite mathematically correct, we wouldn't select a VFD for partial load of motor. We would simply go for motor nominal (rated) current.
Finally the answer is: choose a VFD output current ≥ motor rated current.
