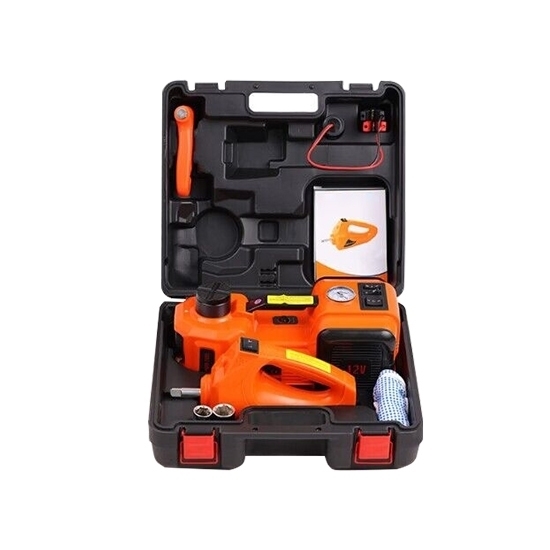

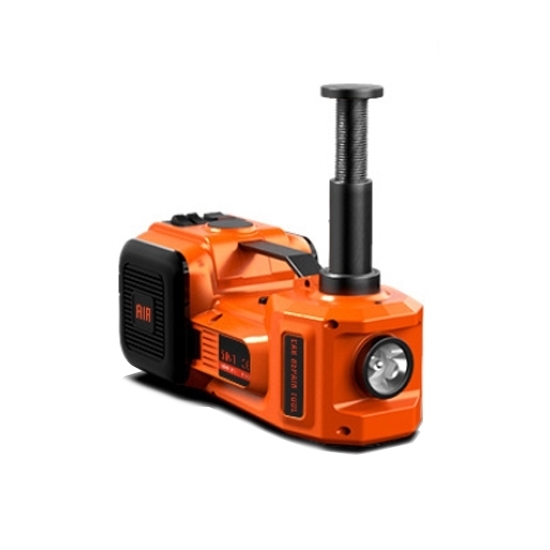

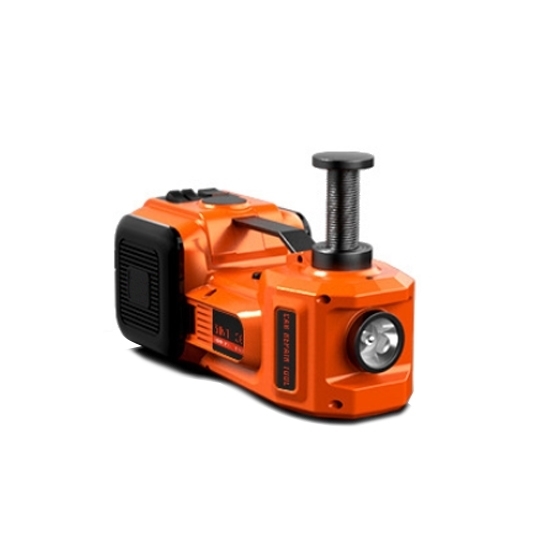

Electric Car Jack Kit, 12V, 5 Ton

0 reviews • Write a review

from

$265.79

Ex Tax: $265.79

Stock: In Stock
Model: RDDLZ-EJ-ZSY01
Weight: 1.00
SKU: RDDLZ-EJ-ZSY01

Available Options

Lifting Range

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

With a rated power of 18W and operating at DC12V, this jack is designed to handle heavy loads effortlessly. The maximum load capacity of 5 tons ensures that it can tackle a variety of vehicles with ease.

Specifications

Model	RDDLZ-ZSY01-X-B02

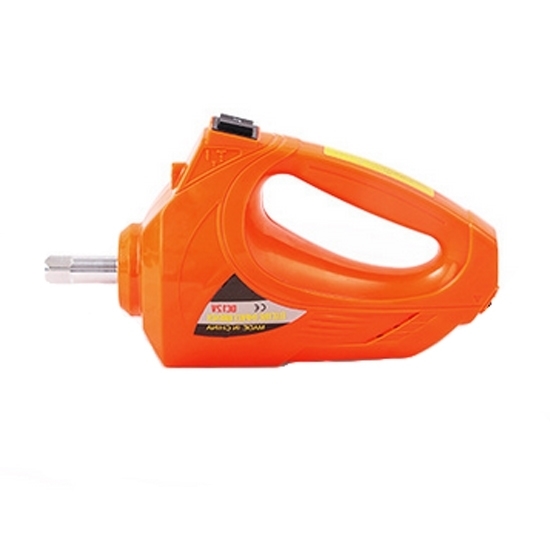

Electric Jack Data		Electric Spanner Data
Rated Power	180W	Rated Power	80W
Operating Voltage	DC12V	Operating Voltage	DC12V
Maximum Current	15A	Maximum Current	13A
Maximum Load	5T	Maximum Torque	480N.M
Dimension	31.512.515 cm	Dimension	259.514 cm
Lifting Range	135-360mm	155-450mm	155-450mm 235-530mm
Net Weight	8.86 kg	9.09 kg	9.87 kg

Features

Anti-slip cross groove: Anti-slip groove design for safer jacking.
180W high power brush motor, low power consumption, strong torque, high torque.
Aluminium alloy base plate, aluminium alloy material will not be deformed.
Durable switch, 100,000 times quality tested for durability.

Dimension (Unit:mm)

Detail

Application

Tips: What safety features does the electric car jack have?

The safety features of an electric car jack are crucial to ensure secure and reliable operation. Here are some common safety features found in electric car jacks:

Overload Protection: Many electric car jacks are equipped with overload protection. This feature prevents the jack from lifting a load beyond its rated capacity. It helps avoid damage to the jack and ensures safe lifting practices.
Built-in Safety Valve: A built-in safety valve is designed to prevent over-extension of the hydraulic ram. This valve releases excess pressure to maintain the stability and safety of the lifting process. It acts as a safeguard against potential hydraulic system failures.
Emergency Stop Button: Some electric car jacks come with an emergency stop button, either on the jack itself or on the remote control. This button allows for immediate cessation of the lifting operation in case of an emergency or unexpected situation.
LED Lighting: Many electric car jacks are equipped with LED lights to enhance visibility, especially in low-light conditions or during nighttime use. This feature ensures that users can clearly see the lifting points and surrounding area, contributing to safer operation.
Anti-Slip Base: The base of the electric car jack may have an anti-slip design to provide stability during operation. This feature helps prevent the jack from shifting or tilting while lifting the vehicle, reducing the risk of accidents.
