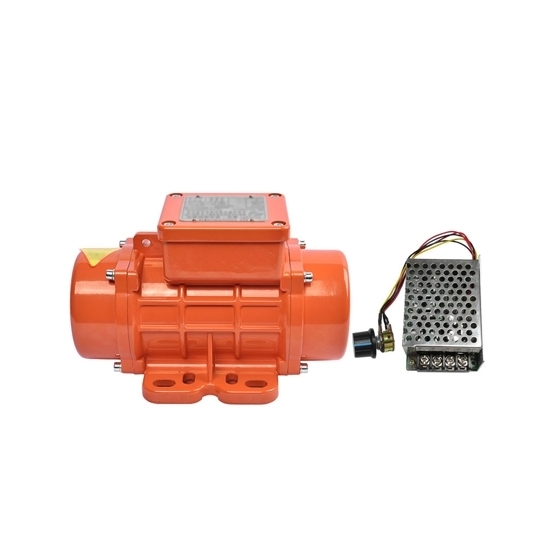

100W 24 Volt DC Brushed Vibrating Electric Motor With Controller

0 reviews • Write a review

from

$383.35

Ex Tax: $383.35

Stock: In Stock
Model: RDDLZ-DCVBM-10024
Weight: 1.00
SKU: RDDLZ-DCVBM-10024

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High power 100W 24 volt DC brushed vibration motor, with a speed controller can adjust the speed of rotation. Built-in high-strength rotor, reliable vibrating electric motor is resistant to deformation and can withstand long-term high-speed operation.

Specifications

Model	RDDLZ-PUTA50DC-24
Voltage	24V
Current	4.2A
Power	100W
Speed	3000rpm
Force	50kg, 0.5KN
Protection Level	IP65 (Dustproof and Waterproof)
Insulation Grade	F (The Highest Heat Resistant Temperature is 155℃)
Weight	4.5kg

Notes: The brushed DC vibration motor requires a controller to operate. If you have not purchased our controller before, it is recommended to place an order with the controller.

Dimension (Unit: mm)

Frame No.	A	A2	B	B2	C	D	E	F	G	H	I	L	M	N	Lead connection
10	60-74	33	106	86-102	211	130	136	12	Φ9	48	94	121	45	86	M16*1.5

Applications

RDDLZ 100W 24V micro brushed DC vibration electric motor is an ideal vibration source and excitation source for various vibration motors such as vibration conveyors, feeders, drying equipment, screening equipment, sand machines, vibration tables, etc., widely used in metallurgy, mining, coal, chemical, electric power, building materials, casting, abrasives, ceramics, glass, food and other industries.

Tips: Can I control the speed of the brushed vibration motor with a speed controller?

Yes! Most RDDLZ industrial vibration motors come with a speed controller that allows you to adjust the speed of this brushed DC motor. A speed controller controls the power going into the motor by varying the voltage or pulse width modulation (PWM) signal, which in turn adjusts the speed of rotation.
