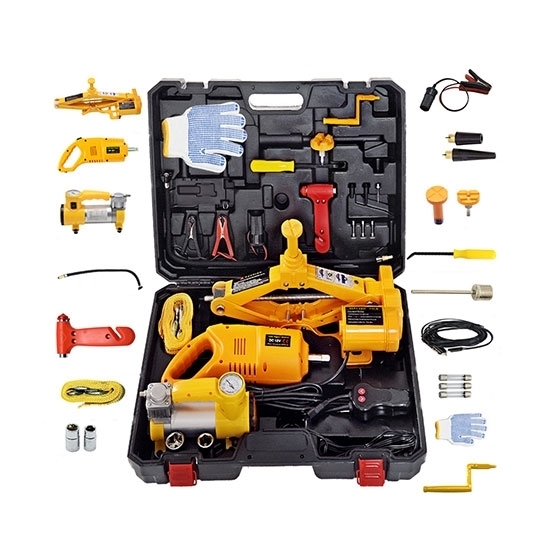

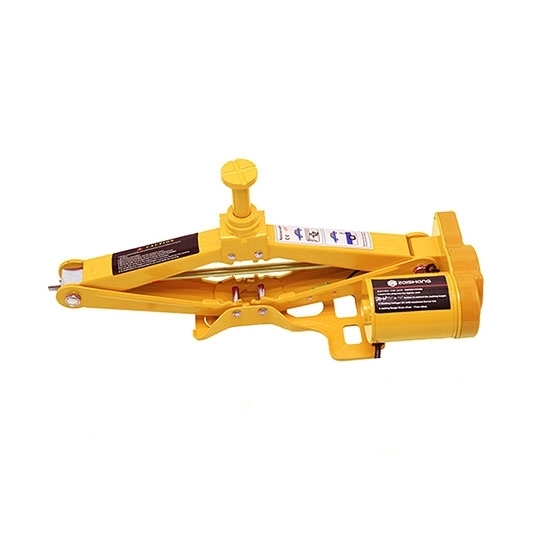

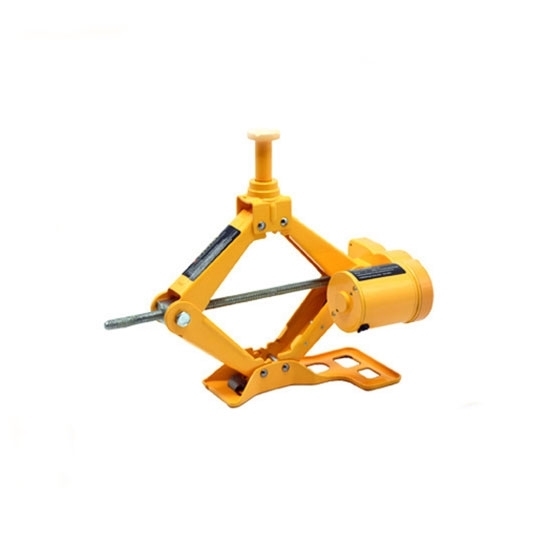

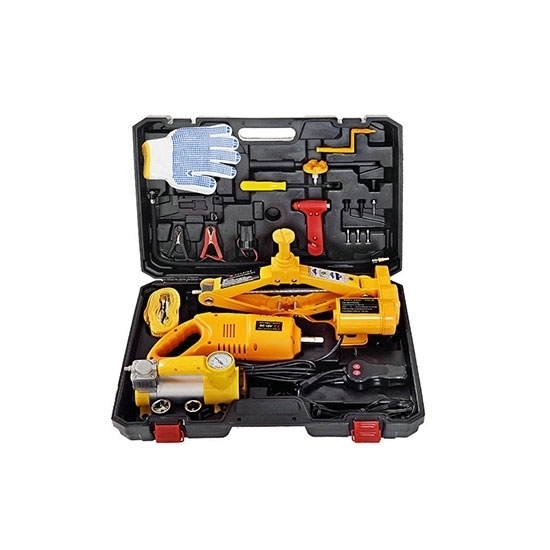

Portable electric car jack kit 3 in 1 with excellent performance. The electric jack has 100W motor power, maximum load capacity 3 tons, operating voltage DC12V, electric jack lifting range 120-370mm,170-420mm optional. Metal double-bar inflation pump with maximum inflation pressure of 150psi and airflow rate of 35L/min provides rapid support for emergency tire replacement. Electric torque wrench power 80W, maximum torque 480N.M. The complete set is lightweight and portable, which is an ideal tool for car maintenance.

Specification

Dimension: (mm)

Details

Instructions for Use

Note: The steps shown above are in order from left to right.

1. Comes complete with battery cable clamp and cigarette lighter, plugs directly into cigarette lighter or connects to car battery for power.
2. Connect the jack and cigarette lighter power cord.
3. Connect the pump and press the switch to inflate.
4. Place the electric jack under the car chassis support.
5. Press UP to raise the jack until the wheels are off the ground, then press DOWN to lower the wheels.
6. Stand half a meter away from the car and use the remote control to control the car.
7. Connect the electric wrench and cigarette lighter power cord.
8. Select the correct socket according to the car model.
9. Loosen and remove the tire nuts using an electric wrench or telescopic wrench.

Application

Tips: Electric Car Jack Kit, 3-in-1 Troubleshooting

When using an electric car jack kit, if you experience a malfunction, you can follow these steps to troubleshoot it. First, ensure that the vehicle is parked on a flat, firm surface with the handbrake securely applied. Also, turn off the vehicle engine to ensure safe operation.

• The Jack Will not Start: first check that the power connection is secure and ensure that the plug is correctly inserted into the 12V DC power supply. Check whether the power cord is damaged, if so, replace it in time.
• Abnormal Lifting Process: If the electric jack is abnormal during the lifting process, it may be that the base of the jack has poor contact with the body. Adjust the position of the base to ensure that the electric jack is placed vertically.
• Abnormal Operation of the Air Pump: If you encounter an inflatable pump that does not work properly, check the power connection and switch. At the same time, make sure that the inflatable piping is connected tightly and there is no air leakage.
• Problems with Wrench Operation: If there is a problem with the electric torque wrench, check the power connection and make sure it is firmly connected. At the same time, confirm that the head of the wrench is properly installed and not used in a reversible direction.
• Pay Attention to Safety Limits: When using the electric car jack, make sure it does not exceed its rated load-bearing capacity of 3 tons. If the mass of the vehicle exceeds the load-bearing limit, it will affect the normal work of the jack or even cause damage.
• Care and Maintenance: Regularly check the parts of the electric jack, air pump and torque wrench to ensure their normal operation. Clean the dust and debris on the surface of the electric car jack to keep the mechanical parts flexible.

If the above steps do not solve the problem, it is recommended to contact the manufacturer's after-sales service for professional support or repair. During any repair and troubleshooting steps, users must follow the safety operating procedures in the product manual to ensure safe and effective operation.
