Note: This foot valve cannot be used for drinking water.

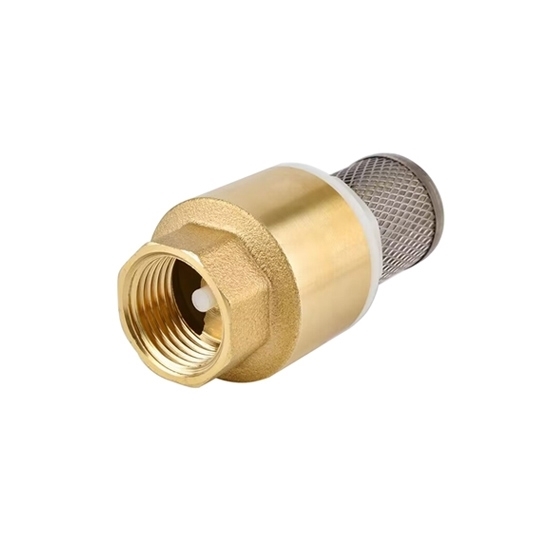

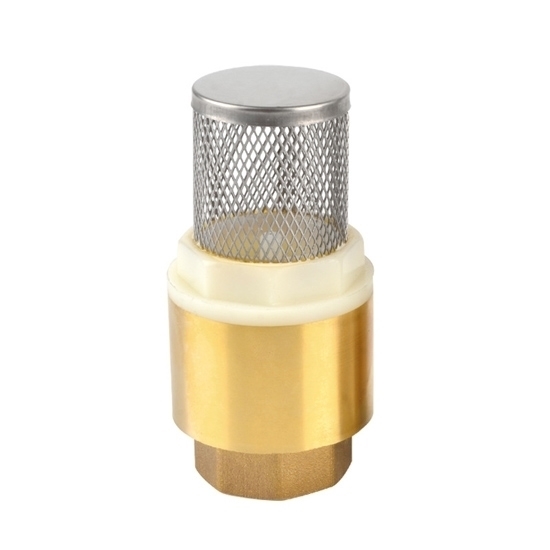

The provided foot valve is a check valve used in applications where a pump is used to lift fluid from a well or other source. 1 inch (DN25) brass check valve, durable and corrosion resistant, usually applied in industrial and commercial water systems to help maintain a constant flow of water to pumps and other equipment.

Specifications

• Model: RDDLZ-SS6060
• Size: 1 inch (DN25, 25mm)
• Main Material: Brass Valve Body/Stainless Mesh Filter/Plastic Valve Core
• Drive Mode: Hydraulic Control
• Connection Form: Internal Thread
• Thread Standard: ISO228
• Shape: Lifting
• Operating Temperature: -20°C≤T≤100°C
• Nominal Pressure: 1.6Mpa
• Working Medium: Water, Oil

Note: Although the foot valve is equipped with an anti-clogging filter, it is generally suitable for clean media, not for media with high viscosity and large particle sizes.

Dimension (Unit: mm)

L:77mm D:42mm Weight: 110g

Applications

The foot valve has the advantages of small friction resistance, long service life, energy saving, easy installation, use and maintenance, etc., widely used in water pump supporting facilities in petrochemical, chemical, textile, printing and dyeing, metallurgy, mining, drainage and irrigation and other industries.

Tips: What are the advantages of brass foot valves compared with other foot valves?

There are several advantages of using a brass foot valve over other types of foot valves, including:

• Corrosion resistance: Brass is highly resistant to corrosion, making it a popular material choice for foot valves used in corrosive fluid applications.
• Durability: Brass is a durable material that can withstand harsh conditions and high temperatures, ensuring that the foot valve will last a long time.
• Easy to install: Brass foot valves are easy to install and maintain, making them a popular choice for many pumping applications.
• Good flow characteristics: Brass foot valves have good flow characteristics, allowing for efficient fluid flow through the valve and the pumping system.
• Versatility: Brass foot valves are suitable for a wide range of applications and fluid types, including water, oils, and gases.
• Compatibility: Brass is compatible with a wide range of sealing materials, allowing for greater flexibility and compatibility with different types of pumps and equipment.
