Note: This foot valve cannot be used for drinking water.

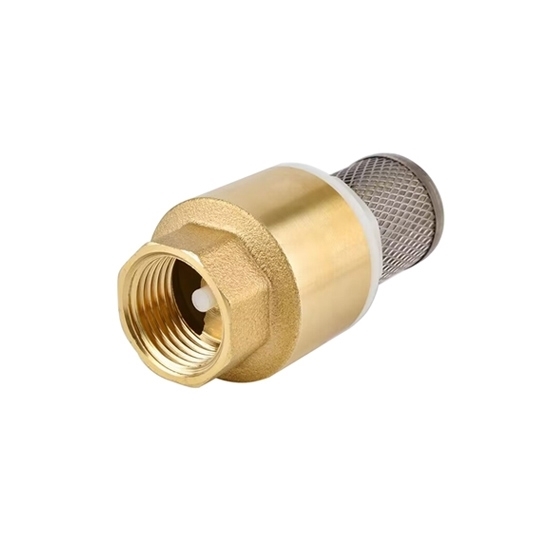

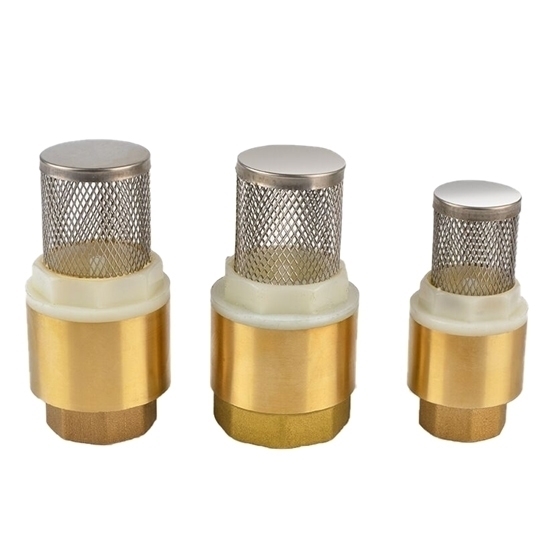

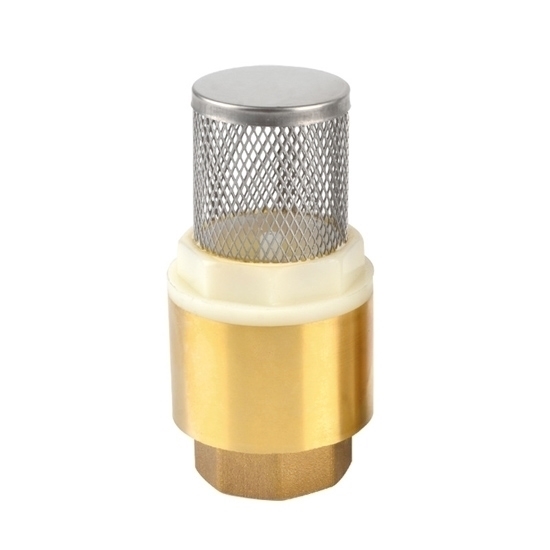

Hot selling brass foot valve is a check valve used in pumping systems to control the flow of water or oil. 1-1/4 inch (DN32) well foot valve is commonly used in applications such as agricultural irrigation systems, industrial and commercial water supply systems, and oil and gas production.

Specifications

• Model: RDDLZ-SS6060
• Size: 1-1/4 inch (DN32, 32mm)
• Main Material: Brass Valve Body/Stainless Mesh Filter/Plastic Valve Core
• Drive Mode: Hydraulic Control
• Connection Form: Internal Thread
• Thread Standard: ISO228
• Shape: Lifting
• Operating Temperature: -20°C≤T≤100°C
• Nominal Pressure: 1.6Mpa
• Working Medium: Water, Oil

Note: Although the foot valve is equipped with an anti-clogging filter, it is generally suitable for clean media, not for media with high viscosity and large particle sizes.

Dimension (Unit: mm)

L: 100mm D: 54mm Weight: 235g

Applications

The foot valve has the advantages of small friction resistance, long service life, energy saving, easy installation, use and maintenance, etc., widely used in water pump supporting facilities in petrochemical, chemical, textile, printing and dyeing, metallurgy, mining, drainage and irrigation and other industries.

Tips: What is a brass foot valve?

A brass foot valve is a type of valve used in plumbing and other fluid systems to prevent the backflow of fluid. It is typically made of brass, a durable and corrosion-resistant material that can withstand exposure to various fluids, temperatures, and pressures. The valve is designed to be installed at the bottom of a pipe or well, where it allows fluid to flow into the system while preventing it from flowing back out. The valve contains a strainer or screen that filters out any debris or particles that could clog the system. The foot valve is called such because it has a protruding foot or base that keeps the valve from sinking into the sediment at the bottom of a fluid source.
