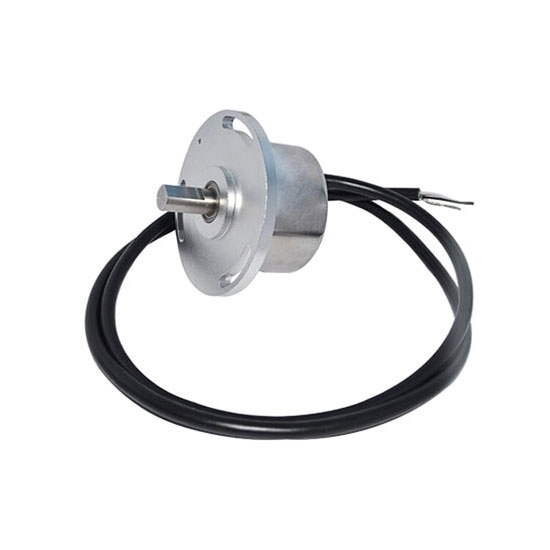

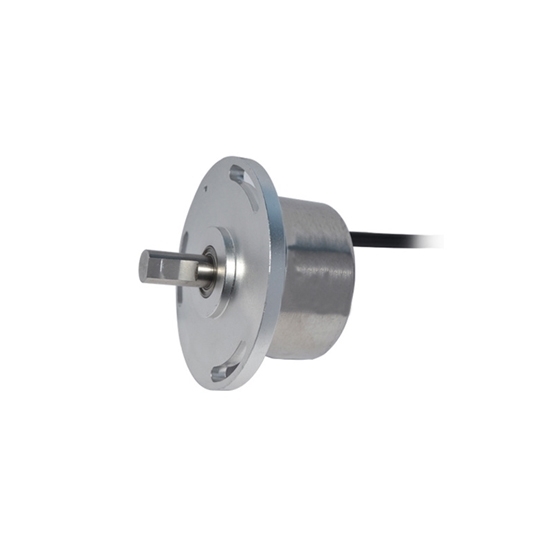

Magnetic Angle Sensor, Non-Contact, RS485/ MODBUS

0 reviews • Write a review

from

$389.99

Ex Tax: $389.99

Stock: In Stock
Model: RDDLZ-AS-RS485
Weight: 1.00
SKU: RDDLZ-AS-RS485

Available Options

Short Description

Output Signal

Measuring Range

Precision

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

RDDLZ hall effect angle sensor is powered by 9V~36V power supply, with reverse and anti-pulse peak voltage protection function, suitable for water, oil, gas, vibration, shock and other harsh industrial environment.

Specification

Model	RDDLZ-LW126C	RDDLZ-HW226C
Full Range Precision	±0.3°	±0.1°
Temperature Drift	±0.0015°/°C
Sensitivity Temperature Coefficient	<150ppm/°C
Measuring Range	0~30°, 0~60°, 0~90°, 0~180°, 0~270°, 0~360° (Optional)
Output Signal	RS232, TTL, RS485, Modbus (Optional)
Output Load	240Ω
Voltage Input	9-36V DC
Typical Voltage	12V
Sampling Frequency	1KHz
Linearity	0.5%-0.15%
High Vibration Resistance	>20000g
Frequency Response	100Hz
Angle Resolution	0.022°
Full Range Accuracy	±0.3°
Operating Temperature	-40°C~+85°C
Storage Temperature	-55°C~+100°C
Power-on Startup Time	0.2s
Response Time	0.01s
Average Operation Time	≥55000 Hour/Time
Cable	with 1.5m length shielded cable 3*0.3mm2
Power Reverse Protection	40mV
Signal Reverse Protection	40mV
Running Torque	<10mN·m
Material	Shell: Aluminum alloy oxidation Back Cover: Stainless steel Shaft: Stainless steel
Protection Grade	IP66
Weight	1kg

Dimensions (Unit: mm)

Wiring Diagram

Electrical Connection	Line Color Function
	1	2	3	4	5
	Red	White	Black	Green	Yellow
RS232	VCC	NC	GND	RXD	TXD
RS485	VCC	NC	GND	(B, D-)	(A, D+)
TTL	VCC	NC	GND	RXD	TXD

Installation Methods

Working Principle

The angle sensor utilizes the Hall principle with a high-precision core control unit that detects changes in angle primarily by internally mounting a grating on a shaft that rotates and cuts a magnetic field. Using Triaeis™ (triaxial Hall) technology independent sensor chip as the core design of a programmable angle sensor. The angle is derived by amplifying, filtering and converting the capacitance.

Applications

Tips: Angle sensor for car

The car steering angle sensor is used to detect the rotation angle and steering direction of the steering wheel. The steering wheel turning left or right will be detected by the steering angle sensor, so that the car's electronic control unit will issue the correct steering command. The turning angle of the steering wheel is to provide the basis for the car to realize the steering range, so that the car can drive according to the driver's steering intention.

The steering angle sensor is composed of a photoelectric coupling element and a slotted plate. The photoelectric coupling elements are light-emitting diodes and phototransistors. The slotted plate is placed between the light-emitting diode and the phototransistor. The slotted plate has many small holes.

When the steering wheel rotates, the slotted plate will follow the rotation. The phototransistor operates according to the light passing through the slotted plate and outputs a digital pulse signal. The car's electronic control unit uses this signal to identify the steering angle, direction of rotation and speed of the steering wheel.
