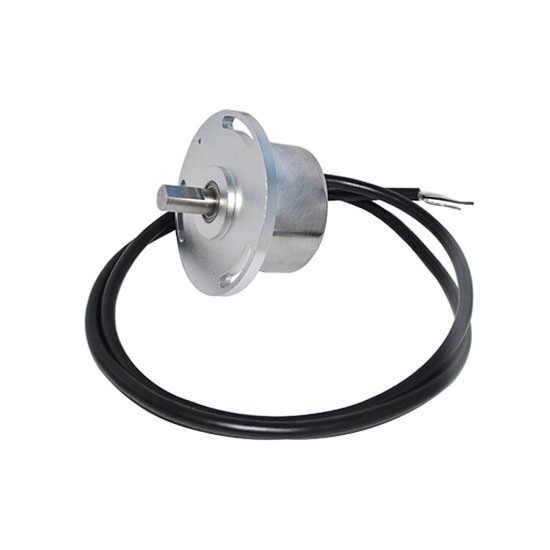

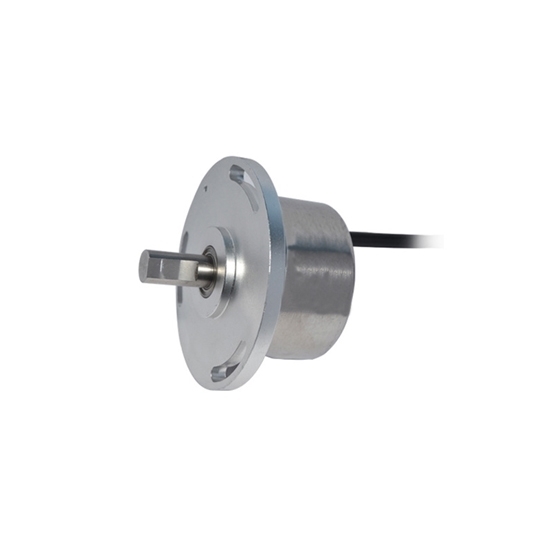

Magnetic Angle Sensor, Non-Contact, 0-10V/ 0-5V

0 reviews • Write a review

from

$389.99

Ex Tax: $389.99

Stock: In Stock
Model: RDDLZ-AS-105
Weight: 1.00
SKU: RDDLZ-AS-105

Available Options

Short Description

Output Signal

Measuring Range

Precision

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Magnetic angular transducer embedded microprocessor is combined with the CNC angular second calibration device to achieve the high precision measurement of 0.1° or 0.3° by programmed calibration and conversion.

Specification

Model	RDDLZ-LW120A	RDDLZ-HW220A
Full Range Precision	±0.3°	±0.1°
Temperature Drift	±0.01°/°C	±0.02°/°C
Measuring Range	0~30°, 0~60°, 0~90°, 0~180°, 0~270°, 0~360° (Optional)
Output Signal	0-5V, 0-10V (Optional)
Output Load	2kΩ
Voltage Input	9-36V DC
Typical Voltage	12V
Sampling Frequency	1KHz
Linearity	0.5%~0.15%
High Vibration Resistance	>20000g
Frequency Response	100Hz
Angle Resolution	0.022°
Full Range Accuracy	±0.3°
Operating Temperature	-40°C~+85°C
Storage Temperature	-55°C~+100°C
Power-on Startup Time	0.2s
Response Time	0.01s
Average Operation Time	≥55000 Hour/Time
Cable	with 1.5m length shielded cable 3*0.3mm²
Power Reverse Protection	40mV
Signal Reverse Protection	40mV
Running Torque	<10mN·m
Material	Shell: Aluminum alloy oxidation Back Cover: Stainless steel Shaft: Stainless steel
Protection Grade	IP66
Weight	1kg

Dimensions (Unit: mm)

Wiring Diagram

Red	Black	Yellow
1	2	3
VCC (Power Positive)	GND (Power Negative)	Signal Cable

Installation Methods

Angle Measuring Chart

Applications

Tips: What is angle sensor?

Angle sensor refers to an angular transducer that can sense the measured angle and convert it into a usable output signal. Angle sensors, as the name suggests, are used to detect angles. There is a hole in its body to fit the Lego shaft. When connected to the RCX, the angle sensor counts every 1/16 revolution of the shaft. When rotating in one direction, the count increases, and when the rotating direction changes, the count decreases. The count is related to the initial position of the angle sensor. When initializing the angle sensor, its count value is set to 0, if necessary, you can reset it by programming. The position and speed can be easily measured by calculating the angle of rotation.
