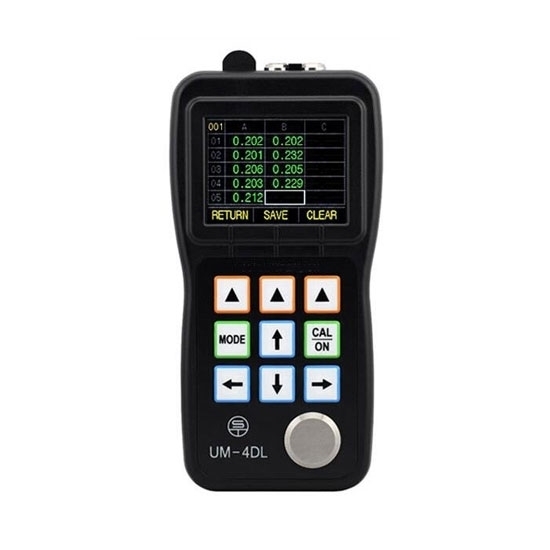

Digital A-Scan Ultrasonic Thickness Gauge, Metal/Steel/Pipe, Thru-Paint

0 reviews • Write a review

from

$1,904.76

Ex Tax: $1,904.76

Stock: In Stock
Model: RDDLZ-UM-4
Weight: 1.00
SKU: RDDLZ-UM-4

Available Options

Short Description

Model

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

This series of digital A-scan ultrasonic thickness gauges is suitable for measuring the thickness of metal materials, pipes, pressure vessels, sheet metals (steel, aluminum), plastic, steel pipes, PVC pipes, glass and other materials.

Features

High resolution 0.01mm or 0.001 inches
Measuring range: 0.6-508mm
A-scanning snapshot function
Zero cross measurement, high stability and reliability
Bright OLED color display
Adjustable High, Medium or Low gain
Update rate 4Hz, 8Hz, 16Hz for selections, 4Hz for ordinary application, 8Hz and 16Hz for quicker scan
Through coating, no need to remove the paint (UM-4D, UM-4DL Only)
Large data logger, can store 100,000 thickness values (UM-4DL Only)

Details

Specification

Model	RDDLZ-UM-4	RDDLZ-UM-4D	RDDLZ-UM-4DL
Display Type	2.4" color OLED, 320×240 pixels, contrast 10,000:1
Operating Principle	P-E (pulse-echo) with dual element transducers	P-E (pulse-echo), E-E (echo-echo) with dual element transducers	P-E (pulse-echo), E-E (echo-echo) with dual element transducers
Total Measuring Range	0.6mm-508mm (0.025"-20.00"), depending on material, probe and surface condition
Measuring Range (Standard Probe)	PT08: 0.8-100mm	TC510: 1.2-200mm
Measuring Resolution	Selectable 0.1mm or 0.01mm (selectable 0.01 inch, 0.001 inch)
Units	Inch or Millimeter
Gain	Low, Medium or High for various testing conditions
Display Mode	Normal, Min/Max capture, DIFF/RR%
V-Path Correction	Automatic
Update Rate	Selectable 4Hz, 8Hz, 16Hz
Material Velocity Range	500 to 9999 m/s (0.0197 to 0.3939 in/μs)
Languages	Chinese, English, Japanese, French, German
Alarm Settings	Minimum and Maximum alarm. Thickness readings color dynamically changes when alarming.
Power Supply	Two AA alkaline batteries
Operating Time	Approximately 35 hours
Instrument Shut-off	Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of no operation
Operating Temperature	-10℃ to +50℃
Size	153mm×76mm×37mm (H×W×D)
Weight	280g including batteries

Function Comparison

Features	RDDLZ-UM-4	RDDLZ-UM-4D	RDDLZ-UM-4DL
OLED Color Screen	Y	Y	Y
A-Scan Snapshot	Y	Y	Y
Gain: low, Medium, High	Y	Y	Y
Min/Max Capture	Y	Y	Y
DIFF/RR%	Y	Y	Y
Thru-paint	N/A	Y	Y
Data Logger	N/A	N/A	Y
DataView Software	N/A	N/A	Y

Data Logger of RDDLZ-UM-4DL Ultrasonic Thickness Gauge

Capacity	100,000 thickness readings, 400 files
File Structure	Grid file
Rows × Columns	21×12
Communication Port	USB 2.0 port
Software	DataView PC Software

Note:
* Standard Packing List

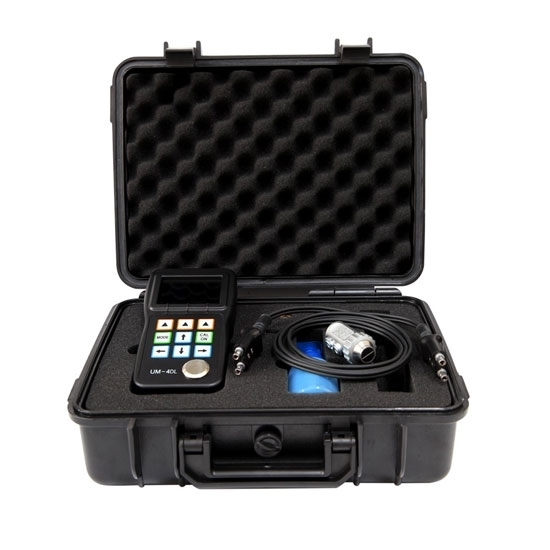

Ultrasonic Thickness Gauge × 1, Standard Probe × 1, Battery × 2, Couplant × 1, Carrying Case × 1, Operating Manual × 1
USB Cable × 1 (UM-4DL Only), Software × 1 (UM-4DL Only)
(Kindly Reminder: Battery and Couplant is Not Included if Shipped By Air.)
* Optional Probes

Model	PT08	TC510	PT06	PT04	ZT12	GT12
Type	UM-4 Standard	UM-4D/UM-4DL Standard	Small Tube	Fingertipe	Cast iron	High-Temperature
Frequency	5MHz	5MHz	7.5MHz	10MHz	2MHz	5MHz
Diameter	11mm	13.5mm	8mm	6mm	17mm	15mm
Measuring Range	0.8~100mm	1.2~200mm	0.8~30mm	0.7~12mm	4.0~508mm	4.0~80mm
Allowable Temperature	-10℃ ~ 70℃	-10℃ ~ 70℃	-10℃ ~ 70℃	-10℃ ~ 70℃	-10℃ ~ 70℃	-20℃ ~ 450℃

Tips: Maintenance of Ultrasound Thickness Meter

1. When using the ultrasonic thickness gauge, it should be handled carefully and lightly to avoid collision.

2. After use of the instrument, the main engine and probe of the instrument should be cleaned and stored in the instrument box.

3. When the instrument is not used for a long time, the battery must be taken out.

4. If the instrument fails and cannot be used, it needs to return to the factory for maintenance.

5. Cleaning of calibration test blocks
Due to applying the couplant when calibrating the instrument with the test block, attention should be paid to anti-rust. Wipe the test block clean after use. If it is not used for a long time, a little grease should be coated on the surface of the test block to prevent rust. When it is used again, the grease can be wiped off first.

6. Cleaning of casing of ultrasonic thickness gauge
Alcohol, diluent and so on have corrosive effect on the casing, especially on the display window, so when cleaning it, gently wipe it with a small amount of water.

7. Protection of Probe
The surface of probe is acrylic resin, which is sensitive to the scratch of rough surface, so it should be pressed lightly in use. When measuring rough surface, try to reduce the scratch of probe on working surface. When measuring at room temperature, the surface of the object to be measured should not exceed 60℃, otherwise the probe can no longer be used. The attachment of oil and dust will make the probe wire aging and breaking gradually. After using, the dirt on the cable should be cleaned.
