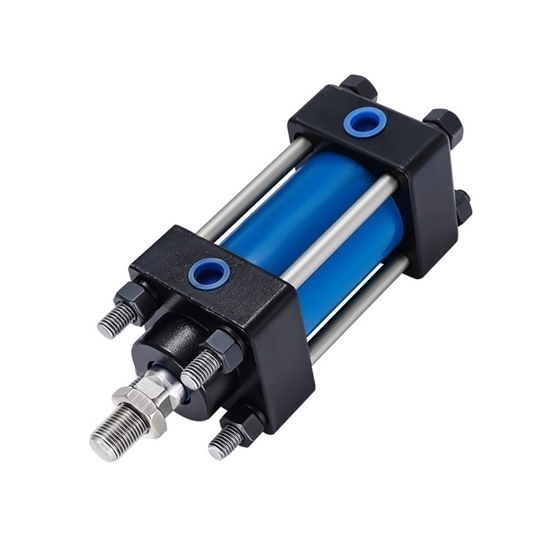

Double Acting Tie Rod Hydraulic Cylinder, 12 Inch (300mm) Stroke

0 reviews • Write a review

from

$168.49

Ex Tax: $168.49

Stock: In Stock
Model: RDDLZ-TRHC-300MM
Weight: 1.00
SKU: RDDLZ-TRHC-300MM

Available Options

Short Description

Bore Diameter

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Engineered for reliable performance, RDDLZ tie rod hydraulic cylinder facilitates controlled movement in hydraulic systems, ensuring efficient power transmission. Its sturdy tie rod construction enhances durability, making it suitable for heavy-duty tasks like log splitting and dump truck operations.

Specification

Model

RDDLZ-MOB-32300

RDDLZ-MOB-40300

RDDLZ-MOB-50300

RDDLZ-MOB-63300

RDDLZ-MOB-80300

RDDLZ-MOB-100300

Acting Type

Double Acting

Stroke

12 inch (300mm)

Bore Diameter

φ32mm

φ40mm

φ50mm

φ63mm

φ80mm

φ100mm

Piston Rod Diameter

16mm

20mm

25mm

32mm

40mm

Action Direction

Push

Pull

Push

Pull

Push

Pull

Push

Pull

Push

Pull

Push

Pull

Pressure Area (cm²)

8.03

6.03

12.56

9.42

19.62

16.48

31.16

26.25

50.24

42.20

78.50

65.94

Working Pressure (70kg/cm²)

562

422

880

660

1373

1150

2180

1635

3516

2954

5495

4616

Note: If you need to customize tie rod hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

Dimension (Unit: mm)

Bore Diameter	ΦA	ΦB	C	□D	□DE	E	F	G	N	I	J	K	S	Z	PT
Φ32	35	16	M14*1.5	52	36	28	10	15	25	53	100	M8	50	153	ZG1/4
Φ40	38	20	M16*1.5	64	45	28	17	20	30	65	110	M8	50	175	ZG3/8
Φ50	43	20	M16*1.5	70	52	28	17	20	30	65	110	M10	50	175	ZG3/8
Φ63	53	25	M22*1.5	87	60	40	20	30	31	90	112	M10	50	202	ZG3/8
Φ80	60	30	M26*1.5	106	74	40	20	32	37	92	129	M12	55	221	ZG1/2
Φ100	75	40	M30*1.5	121	89	45	20	32	37	97	154	M14	80	251	ZG1/2

Tips: How to troubleshoot and diagnose issues with a tie rod hydraulic cylinder?

To troubleshoot and diagnose issues with a tie rod hydraulic cylinder, start by checking for visible leaks or damage in the hydraulic lines and fittings. Inspect the cylinder for signs of fluid leakage, which may indicate seal damage. Verify the hydraulic fluid level and cleanliness in the reservoir. Listen for unusual noises during operation, as these may suggest internal damage or air in the system. Examine the tie rod ends for wear or looseness. Ensure that the cylinder is properly lubricated. If the cylinder is not functioning correctly, perform a pressure test to identify potential problems with the pump or control valves. Finally, consult the guidance for specific troubleshooting guidelines. Regular maintenance and thorough inspections can prevent and address potential issues with tie rod hydraulic cylinders.
