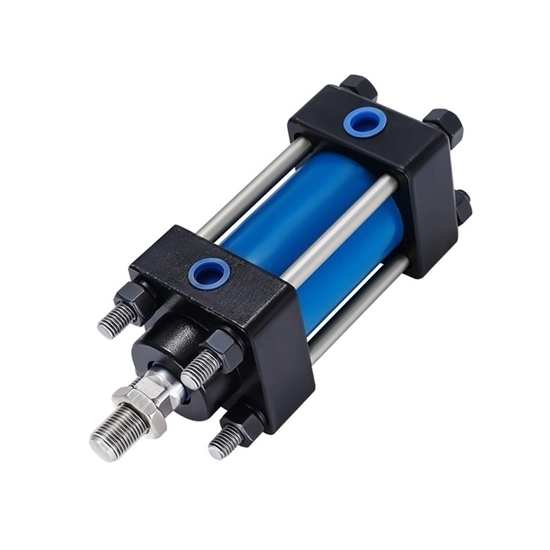

Double Acting Tie Rod Hydraulic Cylinder, 16 Inch (400mm) Stroke

0 reviews • Write a review

from

$190.19

Ex Tax: $190.19

Stock: In Stock
Model: RDDLZ-TRHC-400MM
Weight: 1.00
SKU: RDDLZ-TRHC-400MM

Available Options

Short Description

Bore Diameter

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

With a robust design and advanced engineering, RDDLZ double acting tie rod hydraulic cylinder stands as a versatile solution, meeting the diverse needs of log processing, material handling, and automation in various industries.

Specification

Model

RDDLZ-MOB-32400

RDDLZ-MOB-40400

RDDLZ-MOB-50400

RDDLZ-MOB-63400

RDDLZ-MOB-80400

RDDLZ-MOB-100400

Acting Type

Double Acting

Stroke

16 inch (400mm)

Bore Diameter

φ32mm

φ40mm

φ50mm

φ63mm

φ80mm

φ100mm

Piston Rod Diameter

16mm

20mm

25mm

32mm

40mm

Action Direction

Push

Pull

Push

Pull

Push

Pull

Push

Pull

Push

Pull

Push

Pull

Pressure Area (cm²)

8.03

6.03

12.56

9.42

19.62

16.48

31.16

26.25

50.24

42.20

78.50

65.94

Working Pressure (70kg/cm²)

562

422

880

660

1373

1150

2180

1635

3516

2954

5495

4616

Note: If you need to customize tie rod hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

Dimension (Unit: mm)

Bore Diameter	ΦA	ΦB	C	□D	□DE	E	F	G	N	I	J	K	S	Z	PT
Φ32	35	16	M14*1.5	52	36	28	10	15	25	53	100	M8	50	153	ZG1/4
Φ40	38	20	M16*1.5	64	45	28	17	20	30	65	110	M8	50	175	ZG3/8
Φ50	43	20	M16*1.5	70	52	28	17	20	30	65	110	M10	50	175	ZG3/8
Φ63	53	25	M22*1.5	87	60	40	20	30	31	90	112	M10	50	202	ZG3/8
Φ80	60	30	M26*1.5	106	74	40	20	32	37	92	129	M12	55	221	ZG1/2
Φ100	75	40	M30*1.5	121	89	45	20	32	37	97	154	M14	80	251	ZG1/2

Tips: What is the purpose of tie rods in a hydraulic cylinder?

Tie rods in a hydraulic cylinder serve a crucial structural function by maintaining the cylinder's integrity and preventing it from distorting or failing under pressure. These rods are typically threaded into the cylinder barrel and extend to both ends, connecting the cylinder's end caps. By doing so, tie rods ensure that the cylinder can withstand the internal hydraulic forces generated during operation.

The primary purpose of tie rods is to counteract the tensile forces that develop when hydraulic pressure is applied to the cylinder. These forces could potentially cause the cylinder to elongate or bulge, leading to structural failure. The tie rods provide external support, holding the cylinder components together and preventing deformation. This structural reinforcement enhances the durability and reliability of hydraulic cylinders, making them capable of withstanding the high pressures encountered in various industrial applications, such as manufacturing, construction, and automotive systems.
