Double Acting Tie Rod Hydraulic Cylinder, 14 Inch (350mm) Stroke

0 reviews • Write a review

from

$177.19

Ex Tax: $177.19

Stock: In Stock
Model: RDDLZ-TRHC-350MM
Weight: 1.00
SKU: RDDLZ-TRHC-350MM

Available Options

Short Description

Bore Diameter

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

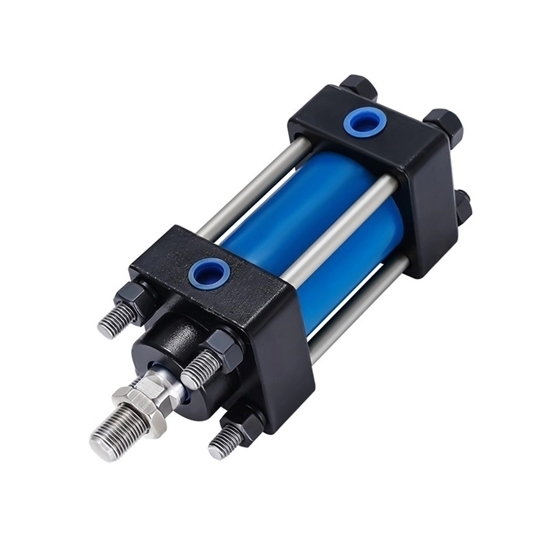

Double acting tie rod hydraulic cylinder with 14 inch (350mm) stroke, is a versatile and robust component designed for various applications, including log splitters, dump trucks, and robotics. Engineered with precision, it ensures reliable and efficient force transmission, making it ideal for heavy-duty tasks.

Specification

Model

RDDLZ-MOB-32350

RDDLZ-MOB-40350

RDDLZ-MOB-50350

RDDLZ-MOB-63350

RDDLZ-MOB-80350

RDDLZ-MOB-100350

Acting Type

Double Acting

Stroke

14 inch (350mm)

Bore Diameter

φ32mm

φ40mm

φ50mm

φ63mm

φ80mm

φ100mm

Piston Rod Diameter

16mm

20mm

25mm

32mm

40mm

Action Direction

Push

Pull

Push

Pull

Push

Pull

Push

Pull

Push

Pull

Push

Pull

Pressure Area (cm²)

8.03

6.03

12.56

9.42

19.62

16.48

31.16

26.25

50.24

42.20

78.50

65.94

Working Pressure (70kg/cm²)

562

422

880

660

1373

1150

2180

1635

3516

2954

5495

4616

Note: If you need to customize tie rod hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

Dimension (Unit: mm)

Bore Diameter	ΦA	ΦB	C	□D	□DE	E	F	G	N	I	J	K	S	Z	PT
Φ32	35	16	M14*1.5	52	36	28	10	15	25	53	100	M8	50	153	ZG1/4
Φ40	38	20	M16*1.5	64	45	28	17	20	30	65	110	M8	50	175	ZG3/8
Φ50	43	20	M16*1.5	70	52	28	17	20	30	65	110	M10	50	175	ZG3/8
Φ63	53	25	M22*1.5	87	60	40	20	30	31	90	112	M10	50	202	ZG3/8
Φ80	60	30	M26*1.5	106	74	40	20	32	37	92	129	M12	55	221	ZG1/2
Φ100	75	40	M30*1.5	121	89	45	20	32	37	97	154	M14	80	251	ZG1/2

Tips: What are the main components of a tie rod hydraulic cylinder?

A tie rod hydraulic cylinder consists of several essential components, each playing a crucial role in its functionality. The main components include a barrel, piston, rod, seals, and tie rods. The barrel serves as the main body that holds hydraulic fluid, while the piston divides the barrel into two chambers. The rod connects to the piston and extends outside the cylinder, transmitting the force generated by the hydraulic pressure. Seals ensure fluid containment, preventing leakage and maintaining pressure. Tie rods are external rods that secure and provide structural support to the cylinder. These components work in tandem to convert hydraulic energy into linear motion, making tie rod hydraulic cylinders vital in various industrial applications such as construction, agriculture, and manufacturing.
