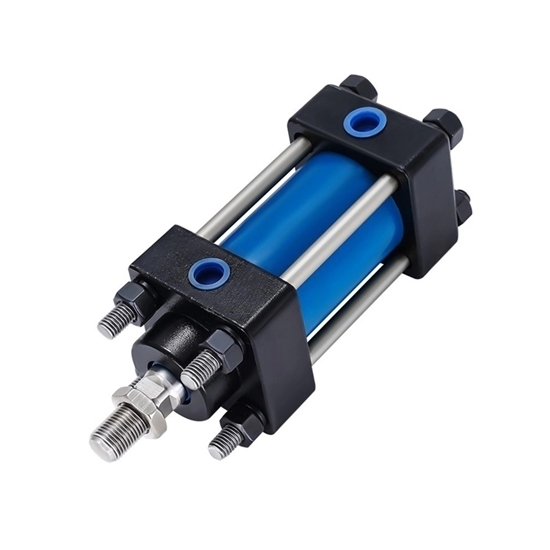

Double Acting Tie Rod Hydraulic Cylinder, 10 Inch (250mm) Stroke

0 reviews • Write a review

from

$159.79

Ex Tax: $159.79

Stock: In Stock
Model: RDDLZ-TRHC-250MM
Weight: 1.00
SKU: RDDLZ-TRHC-250MM

Available Options

Short Description

Bore Diameter

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Double acting tie rod hydraulic cylinder with 10 inch (250mm) stroke, is a versatile and robust component designed for various applications, including log splitters, dump trucks, and robotics. Engineered with precision, it ensures reliable and efficient force transmission, making it ideal for heavy-duty tasks.

Specification

Model

RDDLZ-MOB-32250

RDDLZ-MOB-40250

RDDLZ-MOB-50250

RDDLZ-MOB-63250

RDDLZ-MOB-80250

RDDLZ-MOB-100250

Acting Type

Double Acting

Stroke

10 inch (250mm)

Bore Diameter

φ32mm

φ40mm

φ50mm

φ63mm

φ80mm

φ100mm

Piston Rod Diameter

16mm

20mm

25mm

32mm

40mm

Action Direction

Push

Pull

Push

Pull

Push

Pull

Push

Pull

Push

Pull

Push

Pull

Pressure Area (cm²)

8.03

6.03

12.56

9.42

19.62

16.48

31.16

26.25

50.24

42.20

78.50

65.94

Working Pressure (70kg/cm²)

562

422

880

660

1373

1150

2180

1635

3516

2954

5495

4616

Note: If you need to customize tie rod hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

Dimension (Unit: mm)

Bore Diameter	ΦA	ΦB	C	□D	□DE	E	F	G	N	I	J	K	S	Z	PT
Φ32	35	16	M14*1.5	52	36	28	10	15	25	53	100	M8	50	153	ZG1/4
Φ40	38	20	M16*1.5	64	45	28	17	20	30	65	110	M8	50	175	ZG3/8
Φ50	43	20	M16*1.5	70	52	28	17	20	30	65	110	M10	50	175	ZG3/8
Φ63	53	25	M22*1.5	87	60	40	20	30	31	90	112	M10	50	202	ZG3/8
Φ80	60	30	M26*1.5	106	74	40	20	32	37	92	129	M12	55	221	ZG1/2
Φ100	75	40	M30*1.5	121	89	45	20	32	37	97	154	M14	80	251	ZG1/2

Tips: What is a tie rod hydraulic cylinder?

A tie rod hydraulic cylinder is a type of hydraulic actuator used in various industrial applications to convert fluid power into mechanical force. It consists of a cylindrical barrel, piston, and a set of tie rods that provide structural support. The tie rods are external to the cylinder barrel and are used to secure the end caps, ensuring the cylinder's structural integrity under high pressure. These cylinders are commonly employed in machinery and equipment where linear force or motion is required, such as in manufacturing, construction, and automotive applications. The hydraulic fluid is pressurized to extend or retract the piston within the cylinder, generating linear motion or force. The tie rod design allows for easy maintenance and repair by facilitating the removal of end caps for access to internal components.
