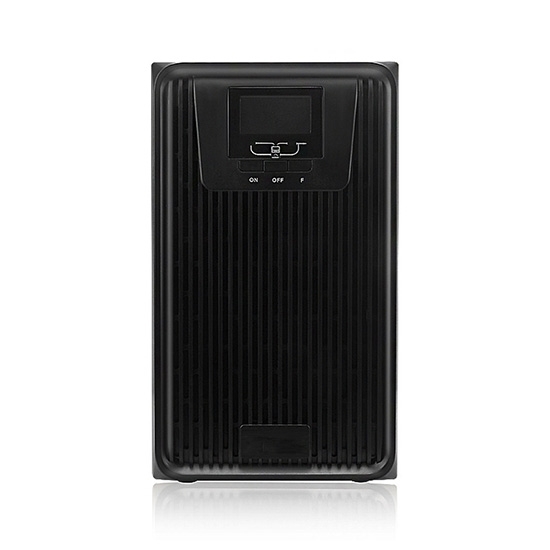

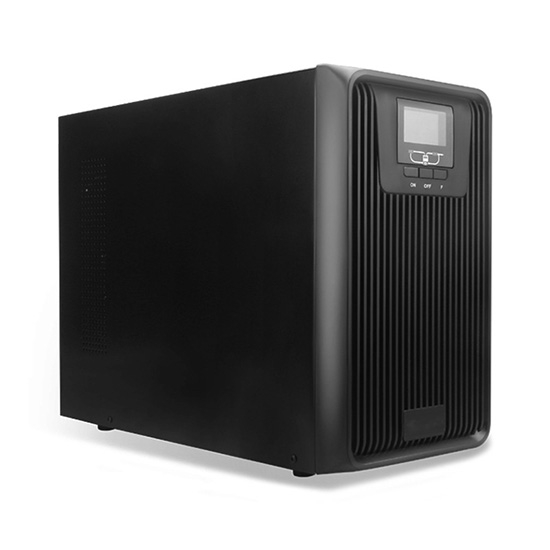

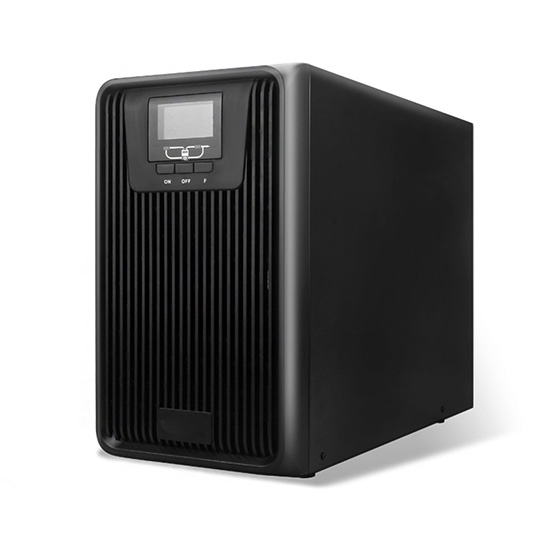

3000VA 120V/220V UPS Backup Uninterruptible Power Supply

0 reviews • Write a review

from

$1,035.72

Ex Tax: $1,035.72

Stock: In Stock
Model: RDDLZ-UPS-3K
Weight: 1.00
SKU: RDDLZ-UPS-3K

Available Options

Battery

Input & Output Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Applications

3000VA/2400 Watts UPS is an uninterruptible power supply to provide emergency power to a load, and it is mainly used in computer, office equipment, test equipment, light system, safe alarm system, ray equipment, medical equipment, copymachine, numerical control machine tools, industrial automation equipment, color and drying equipment, Hi-Fi equipment etc.

3kVA UPS Specification

Basics	Model		RDDLZ-BE-3K
	Phase		Single phase with ground
	Capacity		3000 VA/2400 W
Input	Nominal Voitage		100/110/115/120/127VAC or 200/208/220/230/240VAC
	Input Voltage Range		55-150VAC or 110-300 VAC (Based on load at 50%)
			85-140VAC or 160-280VAC (Based on load at 100%)
	Frequency Range		40Hz-70Hz
	Power Factor		≥0.99 @ Nominall voltage (100% load)
Output	Output Voltage		100/110/115/120/127VAC or 200/208/220/230/240VAC
	Voltage Regulation		±1%
	Frequency Range (Synchronized Range)		47-53Hz or 57-63Hz
	Frequency Range (Batt. Mode)		50Hz±0.25Hz or 60Hz±0.3Hz
	Current Crest Ratio		3:1
	Harmonic Distortion		≤3% THD (Linear Load)
			≤6% THD (Non-linear Load)
	Transfer Time	AC Mode to Battery Mode	Zero
		Inverter to Bypass	4 ms (Typical)
	Waveform (Batt. Mode)		Pure Sinewave
Efficiency	AC Mode		90%
	Battery Mode		88%
Battery	Long-run Model	Battery Type	Depending on the capacity of external batteries
		Numbers	6	8
		Charging Current (max.)	1A/2A/4A/6A (Adjustable)
		Charging Voltage	82.1VDC±1%	109.4VDC±1%
Indicators	LCD		Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators
Alarm	Battery Mode		Sounding every 4 seconds
	Low Battery		Sounding every second
	Overload		Sounding twice every second
	Fault		Continuously sounding
Physical	Long-run Model	Dimension, DxWxH (mm)	397x145x220
		Net Weight (kgs)	7.4
Environment	Humidity		20-90% RH @ 0-40°C (Non-condensing)
	Noise Level		Less than 50dB @ 1 Meter
Management	Smart RS-232/USB		Supports Windows^® 2000/2003/XP/Vista/2008, Windows^® 7/8/10, Linux and MAC
	Optional SNMP		Power management from SNMP manager and web browser

Note:

1. The UPS input/output configuration is 1-phase (L, N, G) like Europe standard, NOT support the split phase (L1, L2 + G) like USA standard.

2. Batteries that work with this UPS are not included, customers need to match lead-acid battery packs on their own, consult us for battery specifications.

3. If you need other output voltage range, please contact us.

Details

AC input
Input circuit breaker
USB communication port
RS-232 communication port
SNMP intelligent slot (option)
External battery connection (only available for L model)
Output receptacles
Output terminal

Tips: How to select an uninterruptible power supply (UPS)?

1. Stability
Because UPS power supply plays a role of safeguard, its own stability is more important. Therefore, the quality of the product is the first principle for users to select an uninterruptible power supply.

2. Back-up time
Back-up time is an index that many users will pay attention to when purchasing an UPS power supply. On one hand, the UPS battery backup continues to supply power for users after power failure. On the other hand, it ensures that users can have a clean power supply and protect the user's equipment.

3. Type of UPS power supply
It is necessary to determine the online, online interactive, standby type, sine wave, square wave and other type of UPS according to the load requirement for output stability, switching time and output wave form.

4. Service ability
Users’ network characteristics and electric power environment are different. Their demand for power protection also changes greatly. Users may encounter various problems when using an UPS power supply and users want to buy products and services that are fully suitable for actual needs.

5. Accessory function
It is recommended to adopt UPS thermal backup system in order to improve the reliability of the system, which can have series connection or parallel connection with warm backup. The uninterruptible power supply with small capacity (1 ~2KVA) can also select redundancy switch. The remote monitoring panel can be used to monitor and control the UPS work at the far end.
