Nema 17 Stepper Motor, 4V 0.95A, 1.8 Degree, 2 Phase 6 Wires

0 reviews • Write a review

from

$64.92

Ex Tax: $64.92

Stock: In Stock
Model: RDDLZ-STEP-3317095
Weight: 1.00
SKU: RDDLZ-STEP-3317095

Available Options

Short Description

Input Pulse Voltage

With Matched Driver

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

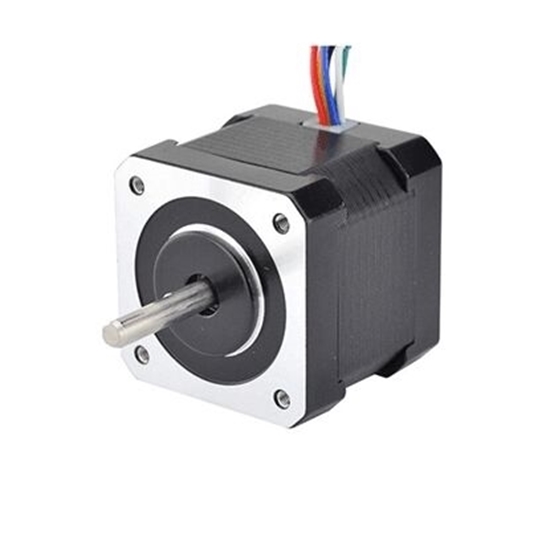

This is a high precision 6-wire 2 phase stepper motor, 4V 0.95A, size in Nema 17, with 1.8 deg. step angle (200 steps/rev), body in 33mm, perfect for many applications.

Specifications

Electrical Specification	Model	RDDLZ33-0956A
	Matched the Driver Model	RDDLZDSP42 (Click it to see more info)
	Step Angle	1.8°
	Holding Torque	1.58kg-cm(22oz-in)
	Voltage	4V
	Rated Current/phase	0.95A
	Phase Resistance	4.2Ω
	Inductance	4mH
	Rotor Inertia	35g-cm²
Physical Specification	Frame Size	42 x 42mm
	Length	33mm
	Shaft Diameter	Φ5mm
	Shaft Length	22mm
	Motor Leads	6
	Weight	0.22kg
Technical Parameters	Step Angle Accuracy	±5% (full step, no load)
	Resistance Accuracy	±10%
	Inductance Accuracy	±20%
	Temperature Rise	80℃ Max. (rated current, 2 phase on)
	Ambient Temperature	-10℃~+50℃
	Insulation Resistance	100MΩ Min. 500VDC
	Dielectric Strength	1Min. 500VAC·5mA
	Shaft Radial Play	0.06Max. 450g
	Shaft Axial Play	0.08Max. 450g
Quality Assurance	Warranty Period	12 months
Quality Assurance	Certificate	CE, ROHs, ISO/SGS9001

Nema 17 Stepper Motor Dimension (Unit=mm)

L1=24mm, Lmax=33mm

Nema 17 Stepper Motor Wiring Diagram

Tips: Whether the subdivision number of subdivided driver can represent accuracy?
4-phase hybrid stepper motor is generally started with 2-phase driver. Therefore, 4-phase motor can be used after connecting into 2-phase one through series or parallel connection. The series connection is generally used when the motor generally rotates at low velocity. At this time, the output current of driver should be 0.7 times of phase current of motor. Therefore, motor heating is small. By contrast, the parallel connection is generally used when the motor rotates at high velocity (also called high-velocity connection). At this time, the output current of the driver should be 1.4 times of the phase current of the motor. Therefore, the motor heating is large.
