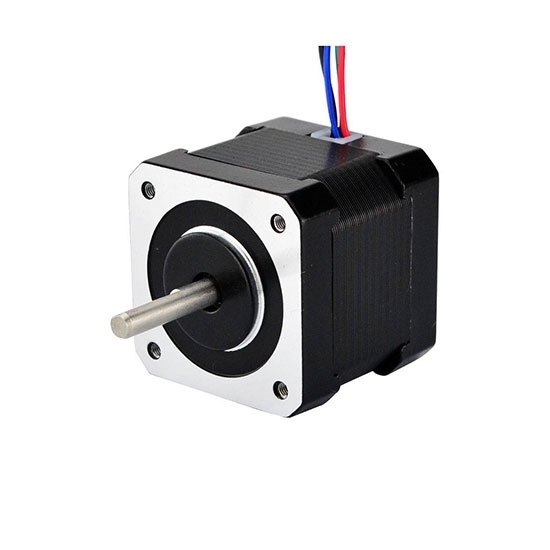

4-wire 2 phase bipolar Nema 17 stepper motor, 3.6V 1.68A, resolution of 1.8 degree/step, torque of 85 oz/inch.

Specifications

Electrical Specification	Model	RDDLZ60-1684A
	Matched the Driver Model	RDDLZDSP42 (Click it to see more info)
	Step Angle	1.8°
	Holding Torque	6.0kg-cm (85oz.in)
	Voltage	3.6V
	Rated Current/phase	1.68A
	Phase Resistance	3Ω
	Inductance	6mH
	Rotor Inertia	68g-cm2
Physical Specification	Frame Size	42 x 42mm
	Length	60mm
	Shaft Diameter	Φ5mm
	Shaft Length	22mm
	Motor Leads	4
	Weight	0.48kg
Technical Parameters	Step Angle Accuracy	±5% (full step, no load)
	Resistance Accuracy	±10%
	Inductance Accuracy	±20%
	Temperature Rise	80℃ Max. (rated current, 2 phase on)
	Ambient Temperature	-10℃~+50℃
	Insulation Resistance	100MΩ Min. 500VDC
	Dielectric Strength	1Min. 500VAC·5mA
	Shaft Radial Play	0.06Max. 450g
	Shaft Axial Play	0.08Max. 450g
Quality Assurance	Warranty Period	12 months
Quality Assurance	Certificate	CE, ROHs, ISO/SGS9001

Nema 17 Stepper Motor Dimension (Unit=mm)

L1=24mm, Lmax=60mm

Nema 17 Stepper Motor Wiring Diagram

Tips: What is holding torque and detent torque?

Holding torque indicates the torque locking the rotor when the stepper motor is powered on but not rotating. It is one of most parameters for the stepper motor. The torque of the stepper motor at low velocity usually approaches the holding torque. As the output torque of stepper motor is gradually attenuated along with the increase in velocity while output power is also increased along with the increase in velocity. For examples, the rotor locks the rotor under the circumstance that the stepper motor is not powered on.
Detent torque indicates the torque locking the rotor under the circumstance that the stepper motor is not powered on.
