2 Phase Bipolar Nema 17 Stepper Motor, 2.8V 1.68A, 4 Wires

0 reviews • Write a review

from

$66.46

Ex Tax: $66.46

Stock: In Stock
Model: RDDLZ-STEP-4717168
Weight: 1.00
SKU: RDDLZ-STEP-4717168

Available Options

Short Description

Input Pulse Voltage

With Matched Driver

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

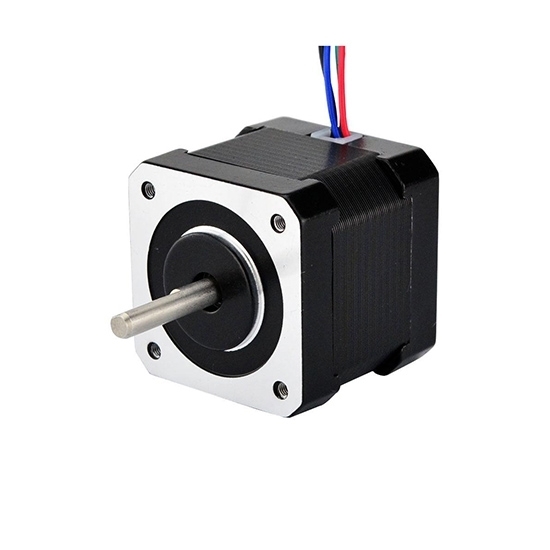

2 phase Nema 17 4-wire bipolar stepper motor, which has 1.8 degree per step for smooth motion and a nice holding torque, perfect for many applications.

Specifications

Electrical Specification	Model	RDDLZ47-1684A
	Matched the Driver Model	RDDLZDSP42 (Click it to see more info)
	Step Angle	1.8°
	Holding Torque	4.4kg-cm (62oz.in)
	Voltage	2.8V
	Rated Current/phase	1.68A
	Phase Resistance	1.65Ω
	Inductance	4.1mH
	Rotor Inertia	68g-cm2
Physical Specification	Frame Size	42 x 42mm
	Length	47mm
	Shaft Diameter	Φ5mm
	Shaft Length	22mm
	Motor Leads	4
	Weight	0.28kg
Technical Parameters	Step Angle Accuracy	±5% (full step, no load)
	Resistance Accuracy	±10%
	Inductance Accuracy	±20%
	Temperature Rise	80℃ Max. (rated current, 2 phase on)
	Ambient Temperature	-10℃~+50℃
	Insulation Resistance	100MΩ Min. 500VDC
	Dielectric Strength	1Min. 500VAC·5mA
	Shaft Radial Play	0.06Max. 450g
	Shaft Axial Play	0.08Max. 450g
Quality Assurance	Warranty Period	12 months
Quality Assurance	Certificate	CE, ROHs, ISO/SGS9001

Nema 17 Stepper Motor Dimension (Unit=mm)

L1=24mm, Lmax=47mm

Nema 17 Stepper Motor Wiring Diagram

Tips: What is stepper motor?
Stepper motor is an actuator transforming electric pulse into angular displacement. Popularly, when receiving a pulse signal, the stepper motor will rotate a fixed angle (namely ''stepping angle'') according to the direction set for the stepper motor. The angular displacement volume can be controlled by controlling the pulse number to achieve the purpose of positioning accurately. In the meantime, the rotational velocity and acceleration of motor can be controlled by controlling the pulse frequency to achieve the purpose of speed control.
