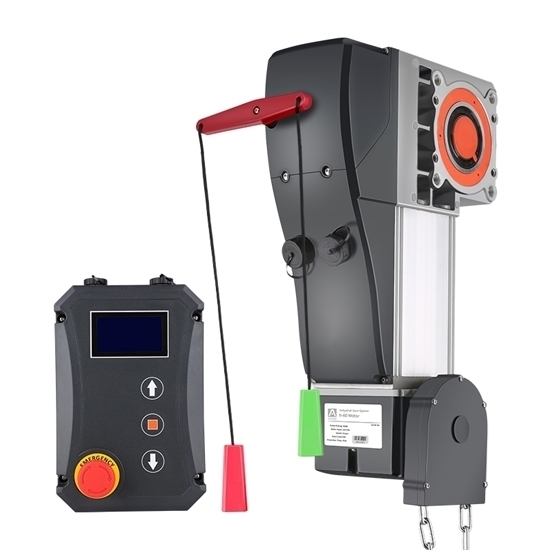

500W Industrial Door Opener, 65Nm, 35m² Area, 2.27A

0 reviews • Write a review

from

$2,350.85

Ex Tax: $2,350.85

Stock: In Stock
Model: RDDLZ-OPENER-500W
Weight: 1.00
SKU: RDDLZ-OPENER-500W

Available Options

Voltage (AC)

Accessories

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features:

RDDLZ 500W industrial door motor with 2.27A, 65N.m, 18 turns has stable limit switch machine turbine worm fine adjustment device to make limit adjustment more stable and correct.
This kind of door motor is installed with convenient aviation plug and waterproof male female interface to prevent wrong wiring and make installation more convenient.
More powerful motor, equipped with DC system, brushless motor, powerful, no heat, no consumption, long service life, with resistance rebound safety protection function.
Corrosion resistant chain. High corrosion resistant chain in case of power failure, the gate can be opened manually.
Quick clutch handle in case of power failure, pull the red handle to open and close the door manually.
Smart control system, The shell adopts modern industrial design. The fuselage is small and beautiful, and the external LCD screen is more convenient and fast.

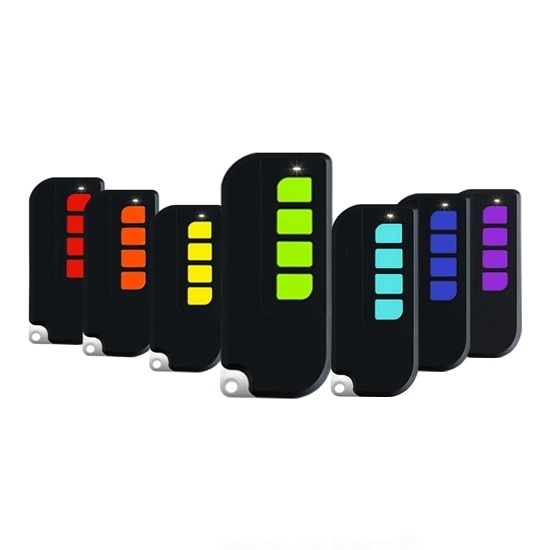

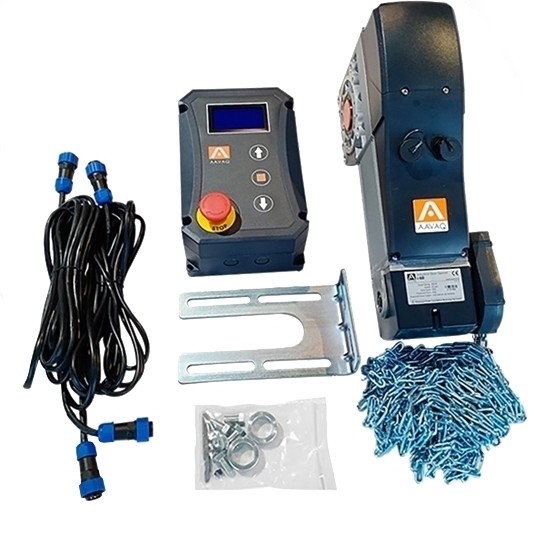

RDDLZ 500W industrial door openers are also equipped with a variety of convenient accessories. If you need or have any questions please ask our staff we will quickly reply.

Applications:

RDDLZ high quality and high performance industrial door motor can be used in fire brigade, 4S shop, storage door, solid wood garage door.

Specification:

Model	RDDLZ h-60
Rated Torque	65N.m
Maximum Door Area	35m²
Maximum Lift Height	5m
Power Rating	0.5kW
Rated Current	2.27A
Nominal Input Voltage	220V AC ± 10%, 50/60Hz
Start-up Current	2A
Manual Release Upon Power Failure	Pull-rope release / Quick release
Duty Cycle	20% (Maximum Runtime Not Exceed 10min)
Rated Speed	22rpm
Maximum Turns	18
Output Shaft Hole Diameter	25.4mm / Customize
Maximum Travel	19 rounds rotation of output shaft
Operating Temperature	-20°C to +45°C
Noise Level	＜50dB
Degree of Protection	IP54
Slow Start / Stop Function	Yes
Safety Obstruction Sensing	Yes

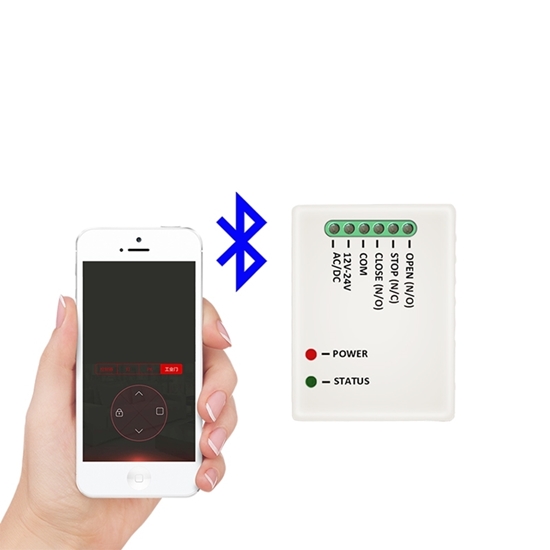

Connect to APPLink Smartphone Controller	Available
Insulation Level	F
Maximum Surface Temperature	80°
Weight	17.3kg

RDDLZ 500W Industrial Door Opener Dimension:

Tips of RDDLZ 500W Industrial Door Opener:

RDDLZ 500W industrial door motor's chain, made of corrosion resistant material, allows opening and closing by hand in the event of a power failure.
Quick Release Lever, pull the handle to simply open and close the door by hand.
Standard 25.4mm hollow shaft special diameters up to 35mm orhexagonal solutions available.
Precise micro-adjusting limit device with mechanical worm wheeland worm rod.
Travel cut-out with combined mechanical (OPEN) and electronic (CLOSE) limits.
High power brushless DC motor with safety obstruction sensing for noiseless, extremely longlife usage.
Housing made of structural grade die cast aluminium alloy.
Full featured external control unit: deadmen & press-and-release.
Mode, LCD panel,variety of terminal blocks for connecting widerange of safety devices,
Receivers and other command devices. Housing and fixing holes waterproof up to lP54.

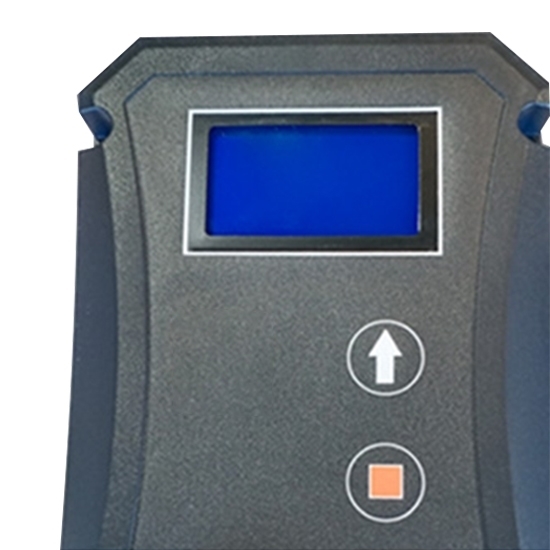

RDDLZ 500W industrial door has multi-language LCD panel ensures easy setup and adjustment of all available functions. Emergency stop for reliable and immediate power cut-off in case of emergency.
