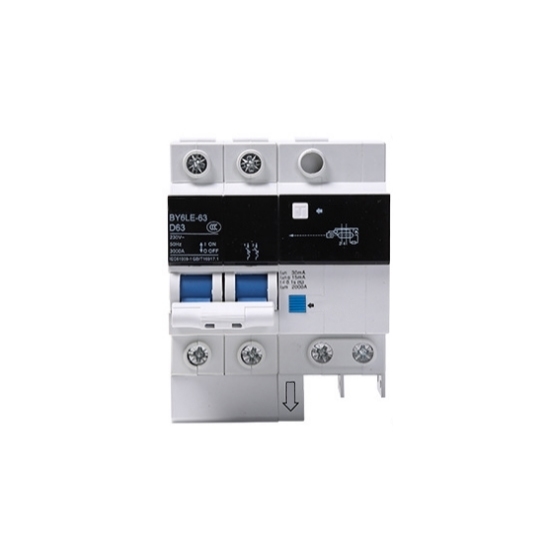

2 Pole Residual Current Circuit Breaker, 10A/16A/20A/25A/32A/40A/63A

0 reviews • Write a review

from

$52.99

Ex Tax: $52.99

Stock: In Stock
Model: RDDLZ-RCCB-2P
Weight: 1.00
SKU: RDDLZ-RCCB-2P

Available Options

Short Description

Rated Current

Dimension

Internal Material

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

2 pole residual current circuit breaker (RCCB) working at 10/16/20/25/32/40/63 amp rated current, is an electrical safety device designed to protect against electrical shock and fire hazards caused by earth faults or leakage currents. The RCD residual current device switch typically protects both the live and neutral wires in a single-phase system, making it suitable for residential and small commercial applications.

Specification

Model	RDDLZ-BY6LE-63-2P
Pole	2 Pole
Dimension (Optional)	95mm(L)63mm(W)75mm(H)	95mm(L)72mm(W)75mm(H)
Rated Current (Optional)	10A, 16A, 20A, 25A, 32A	40A, 50A, 63A
Internal Material (Optional)	Thin Copper Part or Thick Copper Part
Rated Frequency	50-60Hz
Rated Insulation Voltage	400V
Rated Impulse Withstand Voltage (KV)Uimp	4000
Rated Short-Circuit Capacity (KA)Inc	3000-6000
Rated Residual Breaking Capacity (I△m=lm)	2000
Maximum Breaking Time at Rated Residual Current	0.1s
Producible Leakage Protection Type	AC Type
Rated Residual Operating Current (I△n)	30mA
Electrical Life	10000
Mechanical Life	10000
Protection Level	IP20
Function	Short Circuit Protection, Overload Protection, Leakage Protection, Circuit Breaker Protection
Installation	35mm Rail Mounting

RCCB Breaker Dimension

95mm(L)*63mm(W)*75mm(H)

95mm(L)*72mm(W)*75mm(H)

Tips: How does a residual current circuit breaker work?

A residual current circuit breaker (RCCB) is a safety device designed to prevent electric shocks by quickly breaking the circuit when it detects a leakage of current. It operates by monitoring the current flow through the live (phase) and neutral wires. In normal operation, the current in both wires is equal. However, if there's a fault, such as a person accidentally touching a live wire, some current leaks to the ground, creating an imbalance.

The RCCB detects this imbalance via a differential transformer. When the difference exceeds a set threshold (typically 30mA for household devices), the RCCB instantly trips and cuts off the electricity supply. This prevents dangerous electric shocks or potential fires caused by earth faults.

RCCBs are particularly effective in protecting against earth faults and can enhance the overall safety of electrical installations by ensuring a quick response to hazardous situations.
